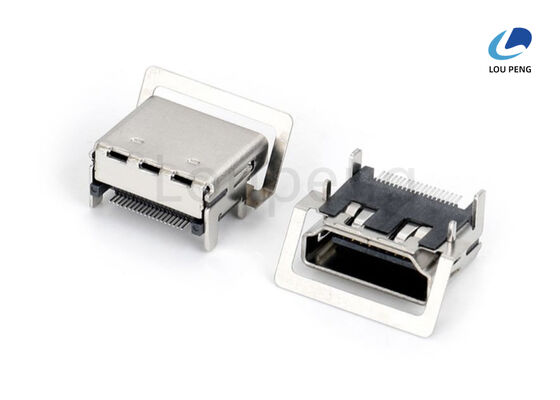

Mating Force 44.1N Max HDMI Digital Audio Video Connector Providing Signal Transfer and Long Service Life in Commercial Electronics

Product Description:

The HDMI Connector is a high-quality component designed to provide reliable and efficient connectivity for high-definition video and audio transmission. As a crucial part of the HDMI Port Connection Interface, this connector ensures seamless integration between various multimedia devices, such as televisions, monitors, gaming consoles, and home theater systems. Engineered to meet the demands of modern digital communication, this High Definition Video Connector supports high-speed data transfer, making it an ideal choice for users seeking superior performance and durability.

One of the standout features of this HDMI Connector is its low insertion force, rated at a maximum of 3.7 Kgf. This characteristic ensures easy and secure mating with corresponding ports without requiring excessive pressure, thereby reducing wear and tear on both the connector and the device port. This balance between ease of use and firm connection helps maintain a stable and consistent signal, which is essential for high-quality video and audio output.

In terms of material specifications, the connector housing is made from UL94V-0 rated Liquid Crystal Polymer (LCP) in black. This high-grade housing material provides excellent flame retardance and mechanical strength, ensuring the connector remains safe and durable even under demanding operational conditions. The black color of the housing adds to its sleek and professional appearance, making it suitable for various consumer electronics and professional AV equipment.

The contact finish of the HDMI Connector features a 1-micron gold (1u Au) plating. Gold plating on contacts is widely recognized for its superior conductivity and resistance to corrosion, which significantly enhances the longevity and reliability of the connector. This finish ensures minimal signal loss and interference, thereby maintaining the integrity of the high-speed HDMI cable connection and delivering crisp, clear high-definition video and audio signals.

Designed to operate within a voltage rating of 40V AC (RMS)/DC, this connector is well-suited for a broad range of electronic devices that comply with standard HDMI specifications. This voltage rating ensures safe and stable operation under typical usage scenarios, providing peace of mind to users concerned about electrical safety and device protection.

Moreover, the HDMI Connector is capable of withstanding a maximum welding temperature of up to 260°C. This attribute is critical during the manufacturing and assembly processes, where connectors are often subjected to soldering and reflow soldering techniques. The high thermal tolerance guarantees that the connector maintains its structural integrity and performance characteristics even after exposure to rigorous heat treatments.

As a High Speed HDMI Cable Connector, this product supports high bandwidth transmission, making it suitable for the latest HDMI standards that demand high data rates for 4K, 8K, and beyond video resolutions. Whether for professional AV setups, gaming rigs, or home entertainment systems, this connector ensures that users experience smooth, flicker-free video playback and immersive audio quality without compromise.

In conclusion, the HDMI Connector combines robust mechanical design, high-quality materials, and precise engineering to deliver an exceptional HDMI Port Connection Interface solution. Its low insertion force, durable UL94V-0 LCP housing, 1u Au contact finish, and high welding temperature tolerance make it a reliable choice for manufacturers and end-users alike. By choosing this High Definition Video Connector, users can enjoy the benefits of a high-speed HDMI cable connector that guarantees excellent performance, longevity, and safety in a wide array of multimedia applications.

Features:

• Product Name: HDMI Connector
• Type: HDMI Electronic Interface Connector
• Pin Number: 19 PIN
• Contact Finish: 1u Au (Gold Plating)
• Maximum Data Rate: 18 Gbps
• Cable Compatibility: HDMI Cable
• Contact Current Rating: 0.5A AC(rms)/DC
• Function: HDMI Video Audio Connector
• Supports High Speed HDMI Cable Connector standards

Technical Parameters:

Applications:

The LP brand, model LP-HD020, is a high-quality HDMI Digital Audio Video Connector designed and manufactured in China. Certified under ISO-9001:2000 standards, this connector ensures excellent performance and reliability for various digital audio and video transmission needs. With a minimum order quantity of 1000PCS and a competitive price of $0.05 per unit, it is an ideal choice for manufacturers and distributors looking for cost-effective yet dependable HDMI Interface Connector Plugs.

Thanks to its robust construction featuring 24K gold-plated contacts, the LP-HD020 HDMI Interface Connector Plug offers superior conductivity and corrosion resistance, providing clear and stable signal transmission. The connector boasts a voltage rating of 40V AC (RMS)/DC and an insulation resistance of 100 Mega Ohms minimum, ensuring safe and efficient operation in diverse environments. Additionally, it can withstand voltages up to 500V AC R.m.s., making it highly durable under varying electrical conditions.

This HDMI / MINI HDMI / MICRO HDMI Series connector is widely applicable across multiple occasions and scenarios. It is perfectly suited for consumer electronics such as HDTVs, Blu-ray players, gaming consoles, and set-top boxes, where high-definition digital audio and video transmission is crucial. The LP-HD020 is also ideal for professional AV equipment, including projectors, video conferencing systems, and media players, ensuring seamless connectivity and high-quality signal output.

In office and educational settings, this HDMI Interface Connector Plug facilitates easy and reliable connections between computers, monitors, and digital projectors, supporting presentations, video streaming, and interactive learning. Furthermore, its packaging options—available in reel, tube, or tray—allow for convenient handling and integration into automated production lines, making it a versatile component for OEM and ODM manufacturers.

The LP-HD020 HDMI connector’s supply ability of 100,000PCS and an efficient delivery time of 7 to 10 days ensure that businesses can maintain a steady inventory to meet market demands. Payment terms are flexible, including T/T, Western Union, and L/C, providing convenience to international buyers. Overall, this HDMI Digital Audio Video Connector from LP is an excellent solution for enhancing digital connectivity in a variety of audiovisual applications, combining affordability, quality, and reliability.

Customization:

Introducing the LP-HD020 HDMI Connector by LP, a high-quality product made in China with ISO-9001:2000 certification, ensuring reliable performance and durability. This High Speed HDMI Cable Connector features 19 pins and is designed for efficient HDMI Signal Transmission Connector applications, providing excellent HDMI Port Connection Interface functionality.

With a contact plating of 24K Gold, the LP-HD020 ensures superior conductivity and corrosion resistance. The connector boasts a maximum mating force of 44.1N and an insertion force of 3.7 Kgf, guaranteeing secure and stable connections. Available in sleek black color, this model supports high-speed data transfer and seamless video/audio transmission.

We offer flexible packaging options including Reel, Tube, and Tray to accommodate your specific needs. The minimum order quantity is 1000PCS with a competitive price of $0.05 per unit. Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days.

Payment terms include T/T, Western Union, and L/C to facilitate smooth transactions. Choose the LP-HD020 HDMI Connector for your next project and experience superior performance in HDMI port connection interfaces and signal transmission.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the product manual and installation guide provided with your purchase. Our support team is available to assist with troubleshooting, product specifications, compatibility questions, and warranty information. We recommend checking our online resources, including FAQs, video tutorials, and software updates, to resolve common issues quickly. If further assistance is required, our technical experts are ready to provide personalized support to ensure optimal performance of your HDMI Connector.

Packing and Shipping:

Each HDMI Connector is carefully packaged in a protective anti-static bag to prevent any damage during handling.

The connectors are then placed in a sturdy cardboard box with foam inserts to ensure secure positioning and to absorb any shocks during transit.

For bulk orders, multiple units are packed in larger boxes with additional padding to maintain product integrity.

All packages are sealed and labeled clearly with product information and handling instructions.

Shipping is carried out through reliable courier services, with tracking provided for all orders to ensure timely and safe delivery.
