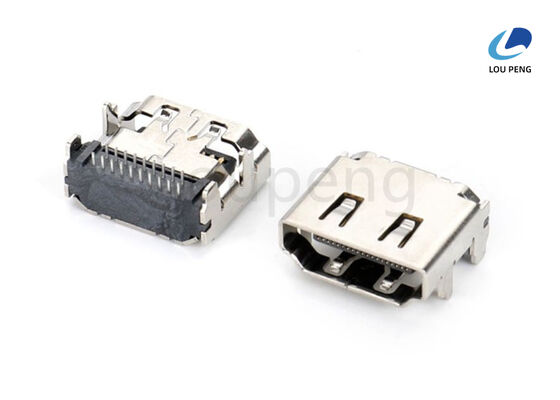

Contact Resistance 30 Milliohms Max High Speed HDMI Cable Connector 19 PIN Ensures Data Transfer and Superior Video

Product Description:

The HDMI Connector is an essential component designed to provide a reliable and high-quality connection for HDMI cables, ensuring seamless transmission of audio and video signals between devices. Engineered with precision and durability in mind, this connector is an ideal choice for users seeking robust performance in their HDMI Port Connection Interface installations.

One of the standout features of this HDMI Interface Connector Plug is its shell material, crafted from premium Copper Alloy (C2680) and Brass. This combination not only enhances the connector’s mechanical strength but also improves its corrosion resistance, making it suitable for long-term use in various environments. The sturdy shell protects the internal components from physical damage and electromagnetic interference, contributing to the overall reliability of the HDMI Port Connection Interface.

Compatibility is a critical aspect of any connector, and this HDMI Connector excels in this regard. It is specifically designed to work seamlessly with standard HDMI cables, ensuring a perfect fit and optimal signal integrity. The compatibility with HDMI cables makes it a versatile option for connecting a wide range of devices, including televisions, monitors, projectors, gaming consoles, and home theater systems. This ensures that users can maintain a consistent and high-quality HDMI Port Connection Interface across multiple devices without compatibility issues.

Operating in a wide temperature range, from -55°C to 85°C, this HDMI Interface Connector Plug is suitable for use in diverse environments, from cold storage facilities to areas with elevated temperatures. This broad operating temperature range guarantees that the connector will maintain its performance and structural integrity under various conditions, making it an excellent choice for both residential and commercial applications.

The insertion force required for this HDMI Connector is carefully calibrated, with a maximum insertion force of 3.7 Kgf. This ensures that users can easily plug and unplug the connector without excessive effort, reducing wear and tear on both the connector and the HDMI cable. The balanced insertion force also helps prevent damage to the HDMI Port Connection Interface, extending the lifespan of the entire connection system.

Shielding is a crucial factor in maintaining signal quality, especially in environments with potential electromagnetic interference. This HDMI Interface Connector Plug is equipped with superior shielding, combining aluminum foil and a braided shield to provide comprehensive protection against electromagnetic and radio frequency interference. This dual-layer shielding ensures that the signal transmitted through the HDMI Port Connection Interface remains clean and stable, minimizing signal degradation and enhancing overall audio and video quality.

In summary, this HDMI Connector is a high-performance, durable, and reliable solution for anyone looking to establish or maintain a robust HDMI Port Connection Interface. With its high-quality copper alloy and brass shell, broad cable compatibility, wide operating temperature range, optimized insertion force, and advanced shielding technology, it guarantees superior connectivity and signal integrity. Whether for professional installations or everyday consumer use, this HDMI Interface Connector Plug offers excellent value, ensuring that your HDMI connections remain stable, efficient, and long-lasting.

Features:

• Product Name: HDMI Connector
• Contact Current Rating: 0.5A AC(rms)/DC
• Withstanding Voltage: 500V AC R.m.s.
• Cable Compatibility: HDMI Cable
• Product Series: HDMI / Mini HDMI / Micro HDMI Series
• Pin Number: 19 PIN
• Type: HDMI Signal Transmission Connector
• Function: HDMI Electronic Interface Connector
• Supports high-quality HDMI signal transmission for audio and video

Technical Parameters:

Applications:

The LP-HD020 HDMI Connector, proudly manufactured in China by LP, is a versatile and reliable HDMI Multimedia Connector Interface designed to meet the demands of modern high-definition video transmission. With ISO-9001:2000 certification ensuring superior quality and consistency, this High Definition Multimedia Interface Connector is ideal for a wide range of application occasions and scenarios where clarity, durability, and performance are paramount.

In home entertainment systems, the LP-HD020 serves as a critical component, seamlessly connecting high-definition devices such as Blu-ray players, gaming consoles, and smart TVs. Its robust shielding, featuring aluminum foil and braided shield, guarantees minimal signal interference, delivering crisp and clear high-definition video and audio for an immersive viewing experience. The connector’s housing, crafted from UL94V-0 LCP black material, ensures excellent flame retardancy and durability, making it suitable for continuous use in residential environments.

For professional settings, including conference rooms and multimedia presentations, the LP-HD020 High Definition Video Connector supports reliable connectivity between laptops, projectors, and large display screens. Thanks to its wide operating temperature range of -55°C to 85°C, it performs consistently in various environmental conditions, from air-conditioned offices to warmer auditoriums. This makes it an excellent choice for corporate installations where dependable signal transmission is crucial.

In the manufacturing and electronics industries, the LP-HD020 is often integrated into HDMI cables during assembly, supporting a minimum order quantity of 1000PCS with a competitive price of 0.05 USD per unit. Packaged efficiently in reels, tubes, or trays, and delivered within 7 to 10 days, it streamlines production processes. The connector’s plating time of 24 to 48 hours ensures optimal corrosion resistance, enhancing product lifespan under rigorous usage.

The LP-HD020 also excels in the consumer electronics market, where HDMI cable compatibility and supply ability of up to 100,000PCS meet large-scale demands. Payment terms including T/T, Western Union, and L/C offer flexible purchasing options for global buyers. Whether used in gaming setups, digital signage, or multimedia devices, this High Definition Multimedia Interface Connector is engineered to provide stable, high-quality connections, making it an indispensable component in the ever-expanding world of high-definition multimedia technology.

Customization:

Introducing the LP brand HDMI Interface Connector Plug, model number LP-HD020, proudly made in China with ISO-9001:2000 certification ensuring top quality standards. This High Definition Video Connector features 19 pins and is designed for panel mount applications, providing reliable and durable connectivity.

Our HDMI Interface Connector Plug offers an insertion force of 3.7 Kgf max and comes with a premium contact finish of 1u Au, enhanced by plating times of 24 to 48 hours for superior corrosion resistance and signal integrity.

We provide flexible packaging options including Reel, Tube, and Tray to suit your production needs. With a minimum order quantity of 1000PCS and a competitive price of $0.05 per piece, LP guarantees efficient supply ability of up to 100,000PCS with a delivery time between 7 to 10 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C. Choose LP’s HDMI Interface Connector Plug for your High Definition Video Connector needs, combining quality, reliability, and excellent service.

Support and Services:

For technical support and service inquiries related to the HDMI Connector product, please refer to the product manual and installation guide provided with your purchase. Our dedicated support team is available to assist with troubleshooting, installation guidance, and warranty service. Ensure you have the product model number and purchase details ready when seeking assistance to facilitate a prompt and efficient support experience. Additional resources, including FAQs and driver downloads, can be found on our official website under the support section. We are committed to providing you with the highest level of service to ensure the optimal performance of your HDMI Connector.

Packing and Shipping:

Each HDMI Connector is individually packaged in an anti-static bag to ensure protection from moisture and dust during transit.

The connectors are then placed in a sturdy cardboard box with adequate padding to prevent any physical damage.

For bulk orders, multiple individual boxes are securely packed into a larger carton with cushioning materials to minimize movement.

All packages are labeled with product information, handling instructions, and shipping details for easy identification.

We use reliable courier services to ensure timely and safe delivery to your specified address.
