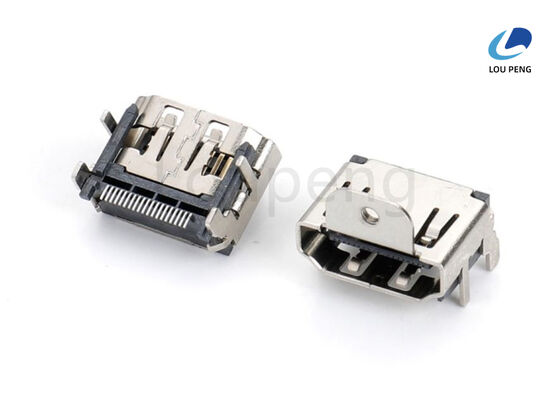

24K Gold Plated HDMI Connector Offering Aluminum Foil and Braided Shield Compatible HDMI Cable Connector for Performance

Product Description:

The High Definition Multimedia Interface Connector, commonly known as the HDMI Connector, is an essential component in modern digital audio and video transmission. Designed to deliver superior audiovisual quality, this HDMI Multimedia Connector Interface has become the standard for connecting a wide range of devices, including televisions, monitors, projectors, gaming consoles, computers, and home entertainment systems. With its ability to support high-definition video and multi-channel audio through a single cable, the HDMI Signal Transmission Connector simplifies connectivity while ensuring a seamless user experience.

This particular HDMI Connector is available in both female and male configurations, making it versatile for various applications and installation requirements. Whether you need to connect a source device to a display or integrate multiple devices within a complex AV setup, these connectors provide the reliable interface needed for consistent performance. The female connector is typically found on display devices, while the male connector is commonly attached to cables or source devices, ensuring compatibility and ease of use across multiple platforms.

One of the critical features of this HDMI Multimedia Connector Interface is its pin configuration. It contains 19 pins, which are meticulously arranged to facilitate the transmission of high-quality digital signals. These pins handle the transfer of video data, audio streams, and auxiliary signals needed for advanced features like Ethernet over HDMI and Consumer Electronics Control (CEC). The 19-pin design ensures robust communication between connected devices, minimizing the risk of signal degradation or data loss.

In terms of durability and reliability, this HDMI Signal Transmission Connector is engineered to meet stringent standards. The mating force, which is the amount of force required to connect or disconnect the connector, is rated at a maximum of 44.1 Newtons. This specification ensures that the connector maintains a secure and stable connection without requiring excessive effort during installation or maintenance. It also helps to prevent accidental disconnections, which is essential in professional AV environments where uninterrupted performance is critical.

Shielding is a vital aspect of any high-quality HDMI Multimedia Connector Interface, as it protects the signal from electromagnetic interference (EMI) and radio frequency interference (RFI). This HDMI Connector features a dual-layer shielding system composed of aluminum foil and a braided shield. The aluminum foil provides an effective barrier against high-frequency interference, while the braided shield offers additional protection and mechanical strength. Together, these shielding layers ensure clean, interference-free signal transmission, resulting in crisp visuals and clear audio.

Another important electrical characteristic of this HDMI Connector is its insulation resistance, which is rated at a minimum of 100 Mega Ohms. High insulation resistance is crucial for preventing electrical leakage and maintaining signal integrity, especially in environments with high electrical noise or long cable runs. This attribute contributes to the overall reliability and safety of the HDMI connection, making it suitable for both consumer and professional use.

In summary, this High Definition Multimedia Interface Connector embodies the perfect blend of performance, durability, and versatility. Its 19-pin design supports comprehensive digital signal transmission, while the female and types offer flexible connectivity options. The maximum mating force of 44.1N ensures a secure connection, and the advanced aluminum foil and braided shielding system protect against various forms of interference. Furthermore, the excellent insulation resistance rating guarantees signal integrity and electrical safety. Whether you are setting up a home theater, professional AV system, or digital signage, this HDMI Multimedia Connector Interface is designed to deliver superior performance and reliability for all your high-definition multimedia needs.

Features:

• Product Name: HDMI Connector
• Type: Female / Male HDMI Electronic Interface Connector
• Color: Black
• Plating Time: 24/48 Hours
• Operating Temperature Range: -55°C To 85°C
• Maximum Data Rate: 18 Gbps for high-speed HDMI Signal Transmission Connector
• Designed as an HDMI Multimedia Connector Interface for reliable connectivity

Technical Parameters:

Applications:

The LP-HD024 HDMI Connector, proudly manufactured in China under the trusted LP brand, is an essential component for a wide range of HDMI Multimedia Connector Interface applications. With its ISO-9001:2000 certification, this High Definition Video Connector guarantees reliability and superior performance for both consumer electronics and professional equipment. Its robust design and panel mount type make it highly suitable for integration into devices requiring a secure and stable connection.

One of the primary application occasions for the LP-HD024 HDMI Electronic Interface Connector is in home entertainment systems. It facilitates seamless high-definition video and audio transmission between devices such as Blu-ray players, gaming consoles, smart TVs, and AV receivers. Its contact current rating of 0.5A AC(rms)/DC and voltage rating of 40V AC (RMS)/DC ensure safe and efficient signal transfer, even in demanding home theater environments. The connector’s mating force of 44.1N max provides a firm connection, reducing the risk of accidental disconnections during use.

In professional and industrial scenarios, this HDMI connector excels in conference rooms, broadcasting studios, and digital signage installations. The LP-HD024’s quick delivery time of 7 to 10 days, along with a high supply ability of 100,000 pieces, makes it an ideal choice for large-scale projects requiring reliable HDMI interfaces. Its packaging options, including reel, tube, or tray, accommodate various assembly line requirements, ensuring smooth production processes.

Additionally, the LP-HD024 connector is widely used in computer peripherals, multimedia projectors, and automotive infotainment systems. The precision plating time of 24 to 48 hours enhances corrosion resistance, extending the connector’s lifespan in diverse environments. Payment terms such as T/T, Western Union, and L/C provide flexibility for international buyers, while the competitive unit price of 0.05 USD with a minimum order quantity of 1000PCS makes it cost-effective for mass production.

Overall, the LP-HD024 HDMI Multimedia Connector Interface is a versatile and reliable solution for high-definition video connectivity across a broad spectrum of occasions and scenarios. Whether for home entertainment, professional AV setups, or industrial applications, this High Definition Video Connector ensures consistent quality and performance, supporting the ever-growing demand for superior HDMI Electronic Interface Connector technology.

Customization:

Our LP brand HDMI Connector, model number LP-HD024, is a high-quality HDMI Video Audio Connector designed to meet your multimedia needs. Manufactured in China and certified with ISO-9001:2000, this HDMI Interface Connector Plug ensures reliable performance and durability.

This High Definition Multimedia Interface Connector features 19 pins and supports a maximum data rate of 18 Gbps, making it ideal for high-definition audio and video transmission. The housing is made from UL94V-0 LCP in black, providing excellent heat resistance and durability, while the contacts are 24K gold plated to ensure superior conductivity and corrosion resistance.

We offer flexible packaging options including reel, tube, and tray to suit your production requirements. The minimum order quantity is 1000PCS, with a competitive price of $0.05 per unit. Our supply ability is 100,000PCS with a delivery time of 7 to 10 days.

Payment terms accepted are T/T, Western Union, and L/C, providing convenience and security for your transactions. This product is part of our HDMI / Mini HDMI / Micro HDMI Series, catering to various application needs.

Choose the LP-HD024 HDMI Connector for a reliable HDMI Video Audio Connector that combines high performance with exceptional value.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the product manual and installation guide provided with your purchase. Our support team is dedicated to assisting you with installation, troubleshooting, and usage inquiries to ensure optimal performance of your HDMI Connector.

If you encounter any issues, please verify that all connections are secure and that your devices are compatible with the HDMI standard supported by the connector.

We offer comprehensive warranty coverage and repair services to address any manufacturing defects. For detailed warranty terms and conditions, please consult the warranty documentation included with your product.

Additional resources, including FAQs, software updates, and instructional videos, can be found on our official website to help you maximize the functionality of your HDMI Connector.

We recommend using only certified HDMI cables and accessories to maintain signal integrity and device safety.

Packing and Shipping:

Each HDMI connector is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge during handling and transportation.

The connectors are then placed in a sturdy, cushioned box to ensure they remain secure and protected from physical impacts.

For bulk orders, multiple units are organized in larger cartons with appropriate padding to avoid movement and damage.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics and delivery.

We offer various shipping options including standard, expedited, and express delivery to meet your timeline requirements.

Our shipping partners ensure timely and reliable delivery, with tracking information provided for every order.

International shipments are handled with care, complying with customs regulations and documentation to avoid delays.
