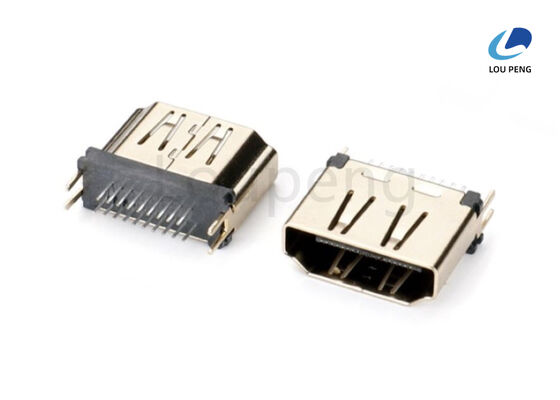

24K Gold Plated HDMI Connector Featuring Mating Force 44.1N Max and Welding Temperature Max 260°C Suitable for Industrial

Product Description:

The HDMI Connector is an essential component designed to facilitate high-quality digital audio and video transmission, making it an indispensable accessory for modern multimedia devices. This product belongs to the esteemed HDMI / Mini HDMI / Micro HDMI Series, ensuring compatibility with a wide range of devices, from standard televisions and monitors to compact cameras and portable gadgets. Engineered to meet rigorous industry standards, this connector guarantees reliable and efficient signal transfer, supporting the ever-growing demand for high-definition multimedia experiences.

At the core of this HDMI Signal Transmission Connector is its robust construction. The housing is made from UL94V-0 rated Liquid Crystal Polymer (LCP) material, which is black in color. This housing material not only provides excellent flame retardancy but also offers superior durability and resistance to environmental stresses. The UL94V-0 rating ensures that the connector meets stringent safety requirements, making it suitable for use in various consumer electronics and professional equipment where safety and longevity are paramount.

Featuring a 19-pin configuration, this HDMI Multimedia Connector Interface delivers exceptional connectivity performance. Each pin is meticulously designed to ensure optimal contact and signal integrity, minimizing the risk of data loss or interference during transmission. The 19-pin setup is the standard for HDMI connections, supporting high-definition video, multi-channel audio, and various control signals within a single cable, thereby simplifying the user experience and reducing cable clutter.

One of the standout features of this HDMI Signal Transmission Connector is the 24K gold plating on its contacts. Gold plating is renowned for its excellent conductivity and resistance to corrosion, ensuring that the connector maintains a stable and high-quality electrical connection over time. This plating not only improves signal quality by reducing contact resistance but also extends the lifespan of the connector, making it a cost-effective solution for both manufacturers and end-users.

In addition to its superior material and design, the connector also boasts a withstanding voltage rating of 500V AC R.m.s. This high voltage tolerance indicates that the connector can safely operate under demanding electrical conditions without risk of breakdown or failure. Such a feature is crucial in protecting sensitive electronic components from voltage spikes and ensuring uninterrupted signal transmission, thereby enhancing overall system reliability.

The versatility of the HDMI / Mini HDMI / Micro HDMI Series means this connector is compatible with a broad spectrum of devices and applications. Whether it’s used in home entertainment systems, professional video equipment, gaming consoles, or portable multimedia devices, this connector supports seamless HDMI signal transmission. Its compact design, combined with robust performance characteristics, makes it the ideal choice for manufacturers aiming to deliver premium multimedia interfaces that meet consumer expectations for clarity, speed, and durability.

Moreover, the HDMI Multimedia Connector Interface complies with international standards, ensuring interoperability across different brands and device types. This compliance is vital for maintaining consistent performance and user convenience, allowing consumers to easily connect and enjoy high-definition content without compatibility concerns. The connector’s design also facilitates straightforward installation and secure connections, which help prevent accidental disconnections and signal degradation.

In summary, this HDMI Signal Transmission Connector from the HDMI / Mini HDMI / Micro HDMI Series offers a perfect balance of durability, performance, and safety. Its UL94V-0 LCP black housing, 19-pin configuration, 24K gold-plated contacts, and 500V AC R.m.s. withstanding voltage make it a reliable choice for high-definition multimedia applications. Whether you are a manufacturer looking to enhance your product lineup or an end-user seeking dependable connectivity solutions, this HDMI connector provides the quality and functionality necessary to support today’s high-performance multimedia environments.

Features:

• Product Name: HDMI Connector
• HDMI Multimedia Connector Interface for high-quality digital transmission
• HDMI Digital Audio Video Connector ensuring clear audio and video signals
• HDMI Video Audio Connector designed for reliable multimedia connectivity
• Insertion Force: 3.7 Kgf Max for easy and secure connection
• Contact Current Rating: 0.5A AC(rms)/DC for stable electrical performance
• Contact Finish: 1u Au providing excellent corrosion resistance
• Plating Time: 24/48 Hours ensuring durability and longevity
• Insertion Cycle (Maximum): 10,000 for extended usage life

Technical Parameters:

Applications:

The LP brand HDMI Connector, model number LP-HD016, is a high-quality High Definition Video Connector designed and manufactured in China. Certified with ISO-9001:2000, this connector ensures superior reliability and performance for various application occasions and scenarios. With a pin number of 19 PIN and featuring Aluminum Foil and Braided Shield for excellent shielding, the LP-HD016 effectively minimizes interference, making it an ideal choice for transmitting clear and stable high-definition video and audio signals.

This HDMI Video Audio Connector is widely used in consumer electronics, including televisions, monitors, projectors, and home theater systems, where high-quality video and audio transmission is essential. Its UL94V-0 rated black LCP housing guarantees durability and safety, suitable for both residential and commercial environments. The connector's design accommodates insertion force of up to 3.7 Kgf max, providing a secure yet easy connection experience.

In professional settings, the LP-HD016 is perfect for conference rooms and multimedia presentation systems, enabling seamless connection between laptops, video conferencing equipment, and large display screens. The product series supports HDMI, Mini HDMI, and Micro HDMI interfaces, offering versatility for various device types and sizes.

Manufactured with a minimum order quantity of 1000PCS, the LP-HD016 is packaged efficiently in reels, tubes, or trays, facilitating convenient handling and installation. With a competitive price of 0.05 per piece and a supply ability of 100,000PCS, this High Definition Video Connector is suitable for large-scale projects and OEM manufacturing needs. Delivery times range from 7 to 10 days, ensuring timely fulfillment of orders.

Payment terms including T/T, Western Union, and L/C provide flexible options for international buyers. Whether used in consumer electronics manufacturing, audiovisual installations, or professional multimedia configurations, the LP-HD016 HDMI Video Audio Connector delivers exceptional performance and reliability, making it a preferred choice for high-definition video transmission applications worldwide.

Customization:

LP offers customized High Speed HDMI Cable Connector solutions with model number LP-HD016, manufactured in China. Our HDMI Electronic Interface Connector is certified with ISO-9001:2000, ensuring top quality and reliability. We provide both Female and Male types within the HDMI, MINI HDMI, and MICRO HDMI Series, available in sleek black color.

Constructed with premium Copper Alloy (C2680) / BRASS shell material and shielded by Aluminum Foil and Braided Shield, our HDMI Port Connection Interface guarantees excellent performance and durability. The minimum order quantity is 1000PCS with a competitive price of 0.05 per unit.

Packaging options include Reel, Tube, and Tray to suit your requirements. We maintain a supply ability of 100000PCS and offer a delivery time of 7 to 10 days. Payment terms accepted are T/T, Western Union, and L/C.

Choose LP for your customized HDMI connector needs to ensure high-quality, reliable connection solutions tailored to your specifications.

Support and Services:

For technical support and service inquiries related to the HDMI Connector product, please refer to the detailed user manual and installation guide provided with your purchase. Our comprehensive documentation covers product specifications, installation procedures, troubleshooting tips, and frequently asked questions to help you achieve optimal performance.

If you encounter any issues or require further assistance, our technical support team is available to provide expert guidance. We recommend checking the compatibility of your HDMI Connector with your devices and ensuring all connections are secure. Firmware updates and driver downloads, if applicable, can be found on our official website to enhance functionality and resolve known issues.

To maintain the quality and longevity of your HDMI Connector, follow the recommended handling and care instructions. Avoid exposing the connector to extreme temperatures, moisture, or physical stress. Regularly inspect the connector for any signs of wear or damage to prevent connectivity problems.

For warranty information and service options, please review the terms and conditions included with your product. Our support services include repair, replacement, and product exchange policies designed to ensure your satisfaction and uninterrupted use of the HDMI Connector.

Packing and Shipping:

Each HDMI Connector is carefully packaged in an anti-static bag to prevent any damage during transit. The connector is then placed in a sturdy cardboard box with protective padding to ensure it remains secure and intact.

For bulk orders, multiple units are packed in larger boxes with additional cushioning materials to avoid any impact or pressure damage.

All packages are clearly labeled with product information and handling instructions. Shipping is done through reliable carriers, with tracking available to ensure timely and safe delivery.

We prioritize safe packaging and efficient shipping to guarantee that your HDMI Connector arrives in perfect condition and ready for use.
