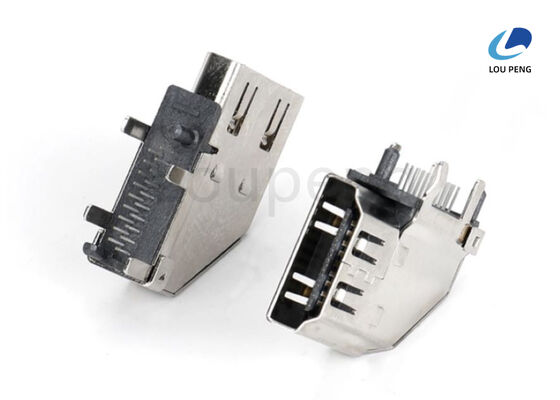

Maximum Data Rate 18 Gbps HDMI Port Connection Interface Compatible with Various Devices Ensuring Data Flow and Signal Stability

Product Description:

The HDMI Connector is a high-quality HDMI Multimedia Connector Interface designed to meet the demanding requirements of modern electronic devices. This connector is engineered to provide reliable and efficient signal transmission, making it an essential component for any HDMI Electronic Interface Connector application. With a robust design and superior electrical characteristics, the HDMI Connector ensures seamless connectivity between audio-visual devices, delivering high-definition video and audio signals with exceptional clarity and stability.

One of the standout features of this HDMI Signal Transmission Connector is its impressive withstanding voltage capability. It can endure a withstanding voltage of 500V AC R.m.s., which signifies its ability to resist high voltage surges without breaking down or suffering damage. This high voltage tolerance makes the connector highly reliable in environments where electrical surges or transient voltages may occur, thereby protecting connected devices and maintaining signal integrity.

The voltage rating of the HDMI Connector is set at 40V AC (RMS)/DC, ensuring that it operates safely within this voltage range. This rating is critical for maintaining the connector’s performance and longevity, especially in applications where stable and consistent electrical characteristics are paramount. The connector’s design takes into account the need for efficient power management and signal preservation, making it suitable for a wide range of HDMI Electronic Interface Connector uses.

Featuring 19 pins, this HDMI Multimedia Connector Interface offers a comprehensive connection platform that supports multiple signal channels. The 19-pin configuration is standard for HDMI connectors, enabling the transmission of high-quality digital video, audio, and control signals between devices. This pin arrangement facilitates advanced features such as high-definition video resolutions, multi-channel audio formats, and Ethernet data transfer, making it a versatile choice for various multimedia applications.

The operating temperature range of the HDMI Signal Transmission Connector is from -55°C to 85°C, which highlights its ability to function reliably in extreme environmental conditions. Whether used in cold storage facilities, outdoor installations, or heated indoor environments, this connector maintains its performance without degradation. The wide temperature tolerance ensures that devices connected via this HDMI connector can operate continuously and without interruption, even under harsh conditions.

Another critical aspect of this HDMI Electronic Interface Connector is the contact finish. The contacts are finished with 1u Au (1 micron gold plating), which provides excellent conductivity and corrosion resistance. Gold plating on the contact surfaces minimizes signal loss and ensures a stable connection over time. This high-quality finish also reduces oxidation and wear, contributing to the durability and longevity of the connector, especially in environments where frequent plugging and unplugging occur.

In summary, the HDMI Connector combines robust electrical specifications, a standard 19-pin configuration, and superior material finishes to deliver exceptional performance as an HDMI Multimedia Connector Interface. Its high withstanding voltage, appropriate voltage rating, wide operating temperature range, and gold-plated contacts make it a reliable choice for high-definition multimedia applications. Whether used in consumer electronics, professional audio-visual equipment, or industrial display systems, this HDMI Signal Transmission Connector ensures efficient and stable connectivity, enhancing the overall user experience.

For anyone seeking a dependable and high-performance HDMI Electronic Interface Connector, this HDMI Connector stands out as an optimal solution. Its engineering excellence and adherence to rigorous standards guarantee that it will meet the needs of various applications, providing consistent and high-quality signal transmission for years to come.

Features:

• Product Name: HDMI Connector
• Type: Female / Male
• Pin Number: 19 PIN
• Mating Force: 44.1N MAX.
• Insertion Force: 3.7 Kgf Max
• Insertion Cycle (Maximum): 10000
• High Definition Video Connector for superior video quality
• HDMI Multimedia Connector Interface ensuring reliable signal transmission
• Designed as a High Definition Video Connector for various multimedia devices

Technical Parameters:

Applications:

The LP-HD015 HDMI Interface Connector Plug, manufactured by LP in China, is designed to meet the demanding requirements of modern electronic devices. With ISO-9001:2000 certification, this connector ensures high quality and reliability, making it an ideal choice for various applications that require a robust and efficient HDMI connection. Its panel mount design allows for secure and stable installation, suitable for both consumer electronics and professional equipment.

This High Speed HDMI Cable Connector supports a maximum data rate of 18 Gbps, making it perfect for transmitting high-definition video and audio signals without any loss in quality. It is widely used in home entertainment systems, including HDTVs, Blu-ray players, gaming consoles, and home theater projectors, where seamless and high-speed data transfer is essential for an immersive viewing experience.

In addition to home use, the LP-HD015 HDMI Electronic Interface Connector also finds applications in commercial and industrial scenarios. It is commonly employed in conference rooms, digital signage, and multimedia presentation systems where reliable and durable HDMI connections are crucial. The insulation resistance of at least 100 Mega Ohms ensures stable performance even in demanding environments.

Thanks to its compatibility with standard HDMI cables and a maximum mating force of 44.1N, this connector delivers both ease of installation and secure connectivity. The product is available in packaging options such as reel, tube, or tray, facilitating efficient handling and integration into automated assembly lines. With a supply ability of 100,000 pieces and a delivery time of 7 to 10 days, LP can meet large-scale orders promptly, with a minimum order quantity of 1000PCS at a competitive price of 0.05 per unit.

Payment terms including T/T, Western Union, and L/C provide flexible options for international buyers. Whether used in consumer electronics manufacturing or high-end professional AV systems, the LP-HD015 HDMI Interface Connector Plug stands out as a reliable solution for high-speed, high-quality HDMI connectivity.

Customization:

Introducing the LP HDMI Connector, model number LP-HD015, a high-quality HDMI Signal Transmission Connector designed to meet your electronic interface needs. Manufactured in China and certified with ISO-9001:2000, this HDMI Electronic Interface Connector ensures reliable performance and durability.

With a shielding design featuring aluminum foil and braided shield, the LP-HD015 offers excellent protection against electromagnetic interference, guaranteeing stable HDMI Port Connection Interface functionality. The connector boasts a withstanding voltage of 500V AC R.m.s. and operates efficiently within a temperature range of -55°C to 85°C.

Our HDMI Connector features 24K gold-plated contacts for superior conductivity and corrosion resistance, while the mating force is controlled at a maximum of 44.1N to ensure secure and easy connections. Available packaging options include reel, tube, and tray to suit various assembly requirements.

We offer flexible customization services with a minimum order quantity of 1000PCS, competitive pricing starting at $0.05 per unit, and a supply ability of up to 100,000PCS. Delivery time is typically 7 to 10 days, with payment terms including T/T, Western Union, and L/C.

Choose the LP-HD015 HDMI Connector for your next project to experience exceptional HDMI Signal Transmission Connector quality, reliable HDMI Electronic Interface Connector performance, and seamless HDMI Port Connection Interface integration.

Support and Services:

For technical support and services related to the HDMI Connector product, please ensure you have the product model number and purchase details ready. Our support team is available to assist with installation guidance, troubleshooting, compatibility questions, and warranty information. We provide detailed product documentation, user manuals, and firmware updates to enhance your experience. If you encounter any issues, our experts can help diagnose the problem and recommend solutions or repairs if necessary. Additionally, we offer consultation services for custom integration and large-scale deployment to meet your specific needs. Please refer to the official website for the latest resources and support options available for your HDMI Connector.

Packing and Shipping:

Our HDMI Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in an anti-static bag to prevent any damage from electrostatic discharge. The product is then placed in a sturdy, compact box with cushioning materials to avoid any impact or pressure damage.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Bulk orders are packed securely in reinforced cartons, clearly labeled with handling instructions. We prioritize safe packaging and efficient shipping to provide a seamless experience for our customers.
