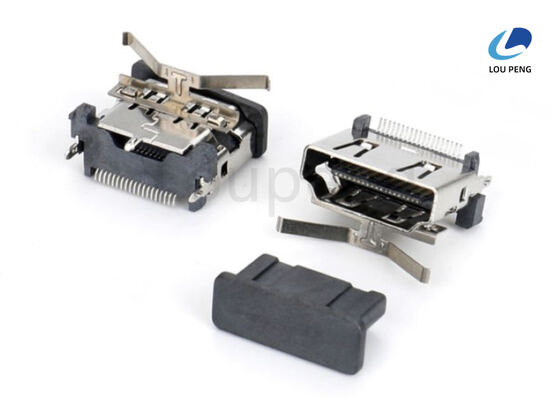

Contact Finish 1u Au HDMI Connector providing Maximum Data Rate 18 Gbps and Contact Current Rating 0.5A AC rms DC ensuring data transfer

Product Description:

The HDMI Electronic Interface Connector is an essential component designed to provide seamless connectivity for high-definition multimedia devices. This particular HDMI Interface Connector Plug is engineered with precision to ensure exceptional performance and durability. Featuring a sleek black color, it not only offers a professional appearance but also blends effortlessly with various electronic devices and setups.

One of the standout features of this HDMI connector is its plating time, which ranges between 24 to 48 hours. This extended plating process enhances the connector’s resistance to corrosion and wear, ensuring a long-lasting and reliable connection. The contact finish is treated with 1u Au (1 micron of gold), which significantly improves conductivity and minimizes signal loss. This high-quality gold plating is essential for maintaining optimal signal integrity, especially in environments where high-speed data transmission is critical.

Compatibility is a key aspect of this product. It is specifically designed to work with HDMI cables, making it an ideal choice for anyone looking to upgrade or replace their existing connectors. Whether you are setting up home theater systems, gaming consoles, or professional AV equipment, this connector ensures a secure and stable connection to deliver high-definition audio and video signals without interruption.

In addition to its compatibility, the HDMI Electronic Interface Connector incorporates advanced shielding technology. It features both aluminum foil and braided shield layers, which work together to protect the signal from electromagnetic interference (EMI) and radio frequency interference (RFI). This dual-layer shielding is crucial for maintaining the clarity and quality of transmitted signals, especially in environments with multiple electronic devices that can cause interference.

The robust design of this High Speed HDMI Cable Connector supports high bandwidth capabilities, making it suitable for 4K and even 8K video transmissions. It adheres to the latest HDMI standards, ensuring that users can enjoy the highest possible audio and video quality. The connector’s build quality is also optimized for easy installation, providing a snug fit with HDMI cables to prevent accidental disconnections and signal degradation.

Moreover, this HDMI Interface Connector Plug is designed with user convenience and reliability in mind. Its durable construction and high-quality materials make it resistant to wear and tear, which is especially important for professional setups where connectors may be frequently plugged and unplugged. The black finish not only adds to the aesthetic appeal but also helps in identifying and organizing cables within intricate AV systems.

In summary, this HDMI Electronic Interface Connector combines superior build quality, advanced shielding, and excellent plating finish to deliver outstanding performance. Its compatibility with HDMI cables, coupled with the 1u Au contact finish and extended plating time, ensures reliable and high-speed data transmission. Whether for personal entertainment systems or professional AV installations, this High Speed HDMI Cable Connector is designed to meet and exceed expectations, providing a stable, high-quality connection that supports the demands of modern digital multimedia devices.

Features:

• Product Name: HDMI Connector
• Type: HDMI Interface Connector Plug
• Function: HDMI Digital Audio Video Connector
• Supports High Definition Video Connector standards
• Operating Temperature Range: -55°C to 85°C
• Shielding: Aluminum Foil and Braided Shield for enhanced signal protection
• Contact Plating: 24K Gold Plated for improved conductivity and corrosion resistance
• Pin Number: 19 PIN configuration
• Voltage Rating: 40V AC (RMS) / DC

Technical Parameters:

Applications:

The LP brand HDMI Connector, model number LP-HD012, is a high-quality HDMI Port Connection Interface designed and manufactured in China. With ISO-9001:2000 certification, this product guarantees reliability and superior performance for various electronic applications. Its robust construction features a copper alloy (C2680) and brass shell material, ensuring durability and excellent conductivity. The contact finish with 1u Au plating enhances signal transmission quality and corrosion resistance, making it ideal for long-term use in demanding environments.

Primarily used as an HDMI Video Audio Connector, the LP-HD012 supports high-definition multimedia interface connections, enabling seamless audio and video transmission between devices. This makes it perfect for use in home entertainment systems, professional audio-visual setups, gaming consoles, and computer peripherals. The HDMI Multimedia Connector Interface ensures compatibility with a wide range of devices, including TVs, projectors, monitors, and sound systems, facilitating easy integration and enhanced multimedia experiences.

The connector’s welding temperature can withstand up to 260°C, which allows for efficient and reliable soldering during assembly without compromising the connector’s integrity. Additionally, with a plating time of 24 to 48 hours, the connector achieves an optimal finish that contributes to its longevity and stable performance. Its ability to withstand a voltage of 500V AC R.m.s. makes it suitable for use in various electronic devices and systems requiring stable electrical performance.

Packaging options for the LP-HD012 include reel, tube, and tray formats, catering to different production and handling needs. The product is available at a competitive price of $0.05 per piece, with a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, ensuring ready availability for large-scale manufacturing projects. Delivery time ranges between 7 to 10 days, and flexible payment terms such as T/T, Western Union, and L/C are accepted, facilitating smooth business transactions.

In summary, the LP-HD012 HDMI Multimedia Connector Interface is an excellent choice for manufacturers and integrators seeking a reliable HDMI Port Connection Interface that supports high-quality audio and video transmission. Its robust materials, precise manufacturing standards, and versatile application scenarios make it suitable for consumer electronics, professional audiovisual equipment, and multimedia systems requiring stable, high-performance HDMI connectivity.

Customization:

Our LP brand HDMI Connector, model number LP-HD012, is a High Speed HDMI Cable Connector designed to meet the highest standards of quality and performance. Manufactured in China and certified with ISO-9001:2000, this HDMI Interface Connector Plug ensures reliable and efficient connectivity for your multimedia devices.

With a maximum data rate of 18 Gbps, the HDMI Multimedia Connector Interface supports high-definition video and audio transmission, making it ideal for various HDMI cable applications. The connector operates reliably within a temperature range of -55°C to 85°C and can withstand a maximum welding temperature of 260°C, ensuring durability and long-lasting performance.

The LP-HD012 HDMI Connector comes in a sleek black color and is compatible with standard HDMI cables. It is available in packaging options including reel, tube, and tray to suit your production and assembly needs. Our supply ability is 100,000 PCS with a minimum order quantity of 1000 PCS, and the standard delivery time is 7 to 10 days.

We offer competitive pricing at $0.05 per piece, with flexible payment terms including T/T, Western Union, and L/C. Choose LP for your High Speed HDMI Cable Connector needs and experience superior quality and service.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the detailed product documentation and user manuals provided with your purchase. Our dedicated support team is available to assist with installation guidance, troubleshooting, and warranty service inquiries. We recommend checking the official website for the latest firmware updates, FAQs, and troubleshooting tips to ensure optimal performance of your HDMI Connector.

If you encounter any issues, please ensure that your HDMI Connector is compatible with your devices and that all connections are secure. For advanced technical assistance, our support specialists can provide step-by-step solutions tailored to your specific setup. Additionally, we offer repair services and replacement parts under the terms of the product warranty.

For comprehensive support, please review the warranty terms and conditions included in the product packaging. Our goal is to provide you with reliable and efficient service to maximize your experience with the HDMI Connector.

Packing and Shipping:

Each HDMI Connector is individually packaged in a protective blister pack to prevent damage during handling and transportation.

The product packaging includes a clear label with product specifications, compatibility information, and installation instructions.

For bulk orders, HDMI Connectors are securely packed in sturdy cardboard boxes with adequate cushioning materials to ensure safe delivery.

All packages are sealed and labeled with shipping information and tracking numbers for efficient logistics management.

We ensure that all shipments comply with international shipping standards to guarantee timely and safe delivery to our customers worldwide.
