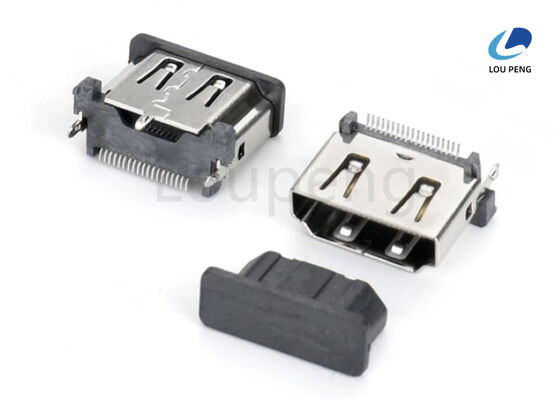

Aluminum Foil And Braided Shield HDMI Video Audio Connector Featuring 1u Au Contact Finish Signal Transmission Durable Construction

Product Description:

The HDMI Connector is an essential component designed to facilitate high-quality audio and video transmission between various electronic devices. Available in both female and male configurations, this connector caters to a wide range of applications, ensuring compatibility with multiple devices and setups. Whether you are setting up a home theater system, connecting a gaming console, or integrating multimedia devices, the HDMI Connector provides a reliable solution for seamless connectivity.

As part of the renowned HDMI / Mini HDMI / Micro HDMI Series, this connector offers versatility and adaptability to different device interfaces. The series is well-regarded for its robust design and superior performance in transmitting uncompressed digital video and audio signals. The Mini HDMI and Micro HDMI variants are particularly useful for compact devices such as cameras, tablets, and smartphones, allowing users to maintain high-definition output without the need for bulky connectors.

One of the standout features of this HDMI Video Audio Connector is its 24K gold plating on the contacts. The 24K gold plated contacts significantly enhance conductivity and reduce signal loss, ensuring that the transmitted audio and video maintain their original quality without degradation. This plating also provides excellent resistance to corrosion and wear, prolonging the lifespan of the connector even under frequent use or harsh environmental conditions.

The HDMI Interface Connector Plug is engineered with precision to meet rigorous standards, including a maximum welding temperature of 260°C. This high welding temperature tolerance ensures that the connector maintains structural integrity during manufacturing and assembly processes, resulting in a durable and stable connection. Additionally, the connector features a maximum insertion force of 3.7 Kgf, which balances ease of use with secure engagement. This means users can connect and disconnect the HDMI plug smoothly without risking damage to the connector or the device port.

In terms of performance, this HDMI Video Audio Connector supports high-definition video formats and multi-channel audio, making it ideal for modern multimedia applications. It supports resolutions up to 4K and beyond, enabling crystal-clear video playback and immersive audio experiences. This makes the connector suitable for use in professional AV equipment, consumer electronics, and even automotive entertainment systems where high fidelity and reliability are paramount.

Moreover, the connector's design ensures compatibility with the HDMI standard, which is widely accepted and utilized across the electronics industry. This standardization guarantees that the HDMI Interface Connector Plug can be used interchangeably with other HDMI-compliant devices, simplifying connectivity and reducing the need for multiple adapters or converters.

In summary, the HDMI Connector, available in female and male versions, is a high-quality, durable product designed to deliver superior audio and video transmission performance. Its inclusion in the HDMI / Mini HDMI / Micro HDMI Series, combined with 24K gold plated contacts, ensures excellent signal integrity and resistance to wear. With a maximum welding temperature of 260°C and a maximum insertion force of 3.7 Kgf, this connector offers reliable mechanical and electrical performance. Whether you need a dependable HDMI Video Audio Connector for professional or personal use, this product provides the ideal solution for seamless multimedia connectivity and enhanced user experience.

Features:

• Product Name: HDMI Connector
• Type: Female / Male HDMI Video Audio Connector
• Mounting Type: Panel Mount
• Pin Number: 19 PIN for reliable HDMI Signal Transmission Connector
• Operating Temperature Range: -55°C to 85°C
• Withstanding Voltage: 500V AC R.m.s.
• Designed for high-quality HDMI Digital Audio Video Connector applications

Technical Parameters:

Applications:

The LP-HD011 HDMI Connector, manufactured by LP in China, is an exceptional HDMI Multimedia Connector Interface designed to meet the demands of modern digital audio and video transmission. Certified under ISO-9001:2000 standards, this connector ensures high quality and reliability, making it an ideal choice for various application occasions and scenarios.

One of the primary applications of the LP-HD011 HDMI Connector is in home entertainment systems. It serves as a superior HDMI Video Audio Connector, facilitating seamless transmission of high-definition video and multi-channel audio signals between devices such as HDTVs, Blu-ray players, gaming consoles, and sound systems. Its 24K gold-plated contacts guarantee excellent conductivity and corrosion resistance, ensuring stable HDMI signal transmission for an immersive multimedia experience.

In professional AV setups, the LP-HD011 HDMI Signal Transmission Connector is widely used to connect projectors, monitors, and audio-visual receivers. Its robust design supports a maximum insertion cycle of 10,000, making it highly durable for frequent connections and disconnections in conference rooms, auditoriums, and studios. The connector’s mating force of 44.1N max and contact resistance of 30 milliohms max facilitate secure and reliable connections, minimizing the risk of signal loss or interference.

Furthermore, the LP-HD011 is well-suited for integration into consumer electronics manufacturing, where large volumes are required. With a minimum order quantity of 1000 PCS and a supply ability of 100,000 PCS, it caters effectively to mass production needs. The connector's voltage rating of 40V AC (RMS)/DC ensures safe operation within various electronic systems.

Packaging options such as reel, tube, or tray provide flexibility for automated assembly lines and manual installation processes. With a competitive price of $0.05 per unit and a delivery lead time of 7 to 10 days, the LP-HD011 HDMI Connector is both cost-effective and readily available. Payment terms including T/T, Western Union, and L/C further facilitate smooth international trade.

Overall, the LP-HD011 HDMI Multimedia Connector Interface is a versatile and reliable solution for high-quality HDMI signal transmission in diverse settings, ranging from residential entertainment and professional AV environments to large-scale electronic manufacturing.

Customization:

LP proudly presents the LP-HD011 High Definition Multimedia Interface Connector, designed and manufactured in China with ISO-9001:2000 certification to ensure top quality and reliability. Our HDMI Video Audio Connector is tailored to meet your specific needs with a minimum order quantity of 1000PCS and a competitive price of $0.05 per unit.

We offer flexible packaging options including Reel, Tube, and Tray to suit your production requirements. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures timely fulfillment of your orders. Payment terms accepted are T/T, Western Union, and L/C for your convenience.

The LP-HD011 features 24K gold-plated contacts with plating times of 24 to 48 hours, guaranteeing excellent conductivity and corrosion resistance. The housing is constructed from UL94V-0 rated LCP in black, providing durability and flame retardance. It supports a mating force of 44.1N max and an insulation resistance of at least 100 mega ohms, ensuring reliable performance.

Customize your High Speed HDMI Cable Connector with LP and benefit from premium quality, efficient delivery, and professional service tailored to your application.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the product manual and installation guide included in your package. These documents provide detailed instructions on proper installation, usage, and troubleshooting tips.

If you encounter any issues or require further assistance, our technical support team is available to help you resolve problems efficiently. Support includes guidance on compatibility, signal integrity, and connector maintenance to ensure optimal performance.

We also offer repair and replacement services for HDMI Connectors found to be defective under warranty. Please ensure you have your purchase details and product serial number available when requesting service.

For additional resources, including firmware updates, user manuals, and FAQs, please visit our official website’s support section dedicated to HDMI Connector products.

Our commitment is to provide reliable support and services to maximize your satisfaction and the longevity of your HDMI Connector.

Packing and Shipping:

The HDMI Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in an anti-static bag to prevent any damage from electrostatic discharge. The connectors are then securely packed in a sturdy cardboard box with foam padding to avoid any impact or pressure damage.

For shipping, we use reliable courier services that provide tracking and insurance to guarantee safe and timely delivery. Each package is labeled clearly with handling instructions to ensure proper care during shipment. Bulk orders are packed in reinforced cartons to maintain product integrity throughout the shipping process.
