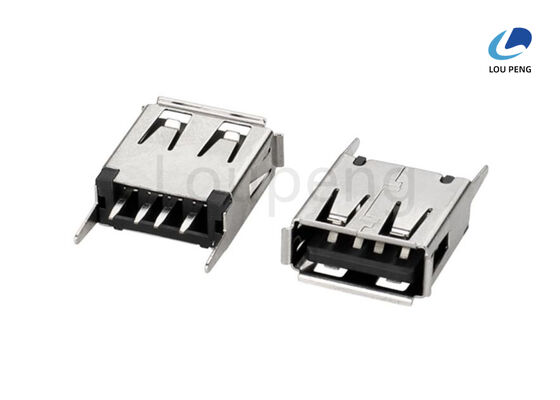

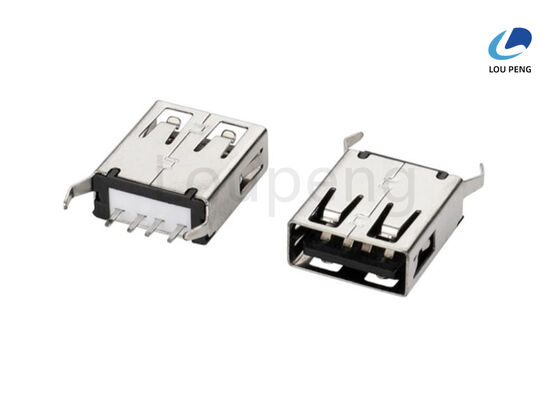

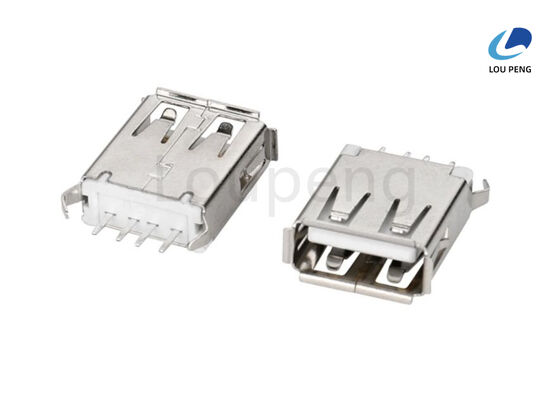

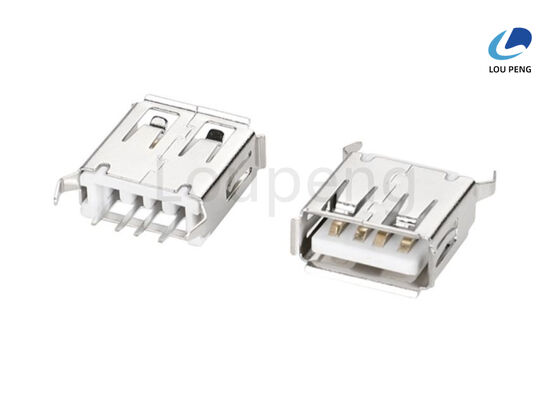

Overall pull out force 1.02kgf MIN Universal USB Interface Connector Plated 1 U Ideal for Integration in Various Devices

Product Description:

The USB Connector is a highly reliable and versatile component designed to meet the demanding requirements of modern electronic devices. As a Universal USB Interface Connector, it supports a wide range of USB standards including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB, making it an ideal choice for various applications that require seamless data transfer and connectivity. This range of compatibility ensures that the connector can be used across numerous devices, from smartphones and tablets to computers and peripheral equipment, providing a universal solution for connecting and communicating with USB-enabled devices.

One of the key features of this USB Connector is its robust build quality and exceptional protection level. With an IP67 rating, it is engineered to offer excellent resistance against dust and water ingress. This protection level guarantees that the connector can operate reliably in harsh environmental conditions, making it suitable for both industrial and outdoor applications where durability and protection are critical. The IP67 rating means the connector is dust-tight and can withstand immersion in water up to a depth of 1 meter for 30 minutes without compromising its performance.

The connector insertion force is carefully calibrated to be between 5 to 20 Newtons, tested at a maximum insertion rate of 12.5mm per minute. This specification ensures that the connector maintains a secure and stable connection without requiring excessive force, enhancing user convenience and reducing wear and tear on both the connector and the mating port. This balance between ease of use and secure connection is essential for maintaining consistent performance over the lifetime of the device.

In terms of materials and plating, the USB Connector features a plating thickness of 1 micron (1 U), which contributes to its durability and corrosion resistance. The contacts within the connector utilize selective plating, a process that enhances the electrical conductivity and longevity of the contact points while reducing the risk of oxidation and mechanical wear. This selective plating technique ensures optimal signal integrity and reliable data transmission, which are critical for maintaining the high-speed communication standards associated with USB 3.0 and USB 3.1 interfaces.

As a USB Communication Port Connector, this product is designed to facilitate efficient and high-speed data exchange between devices. Whether used in consumer electronics, industrial machinery, or communication systems, it provides a stable and consistent connection that supports both data transfer and power delivery. The versatility of the connector is further highlighted by its compatibility with multiple USB formats, ensuring that it can easily adapt to evolving technology standards and user needs.

Additionally, the Universal Serial Bus Connector is engineered with user convenience and safety in mind. The precise manufacturing tolerances and high-quality materials ensure that the connector fits perfectly and securely into corresponding ports, minimizing the risk of accidental disconnections or damage. The connector’s design also supports numerous mating cycles, ensuring long-term reliability and reducing the need for frequent replacements.

In summary, this USB Connector combines broad compatibility, robust protection, and high-quality construction to deliver a superior connectivity solution. Its universal USB interface compatibility, IP67 protection level, optimized insertion force, and advanced plating technologies make it an excellent choice for anyone seeking a dependable USB Communication Port Connector. Whether you are upgrading existing equipment or designing new devices, this Universal Serial Bus Connector offers the performance and reliability needed to support modern connectivity demands across a wide range of applications.

Features:

• Product Name: USB Connector
• Operating Temperature: -55°C to 85°C
• Plated: 1 U
• Contact Current Rating: 3.0A for VBUS pin and its corresponding GND pin; 0.25A minimum for all other contacts
• Contact Impedance: 30mΩ max
• Assembly Method: Solder
• Function: External Device Connection Port
• Type: Standard USB Plug Connector
• Usage: USB Power and Data Connector

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U031, is a high-quality Universal Serial Bus Connector designed and manufactured in China. This product is certified under ISO-9001:2000, ensuring that it meets rigorous quality standards. With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, the LP-U031 is ideal for large-scale production and integration. Its competitive price of 0.01 per unit makes it an economical choice for manufacturers and developers alike.

The LP-U031 USB Data Transfer Connector supports data transfer speeds of up to 10 Gbps, compliant with USB 3.1 standards. This makes it perfect for applications requiring fast and reliable data transmission. Its copper alloy construction with gold or nickel plating enhances conductivity and durability, while the IP67 and IP68 protection levels provide excellent resistance to dust and water, making it suitable for use in harsh environments.

This USB Peripheral Connection Interface is versatile in mounting options, supporting Through Hole, Surface Mount, and SMT installation methods. Such flexibility allows it to be used across various electronic devices and industrial equipment, including computers, laptops, peripherals, and embedded systems. The packaging options—Reel, Tube, or Tray—facilitate smooth handling and integration into automated assembly lines.

Typical application scenarios for the LP-U031 Universal Serial Bus Connector include consumer electronics manufacturing, where high-speed data transfer and reliable peripheral connections are essential. It is also widely used in industrial automation systems, medical devices, and automotive electronics, where the IP67 and IP68 ratings ensure protection against environmental factors. Furthermore, it is ideal for data centers and networking equipment requiring robust and efficient USB interfaces.

With a delivery time of 7 to 10 days and flexible payment terms such as T/T, Western Union, and L/C, LP ensures timely and convenient procurement for businesses. Overall, the LP-U031 USB Connector stands out as a reliable and efficient solution for any application demanding a high-performance USB Data Transfer Connector and USB Peripheral Connection Interface.

Customization:

Introducing the LP USB Connector, model number LP-U031, a high-quality product originating from China and certified under ISO-9001:2000 standards. This connector serves as a Compact USB Connection Interface, designed to meet the demands of modern electronic devices.

With a minimum order quantity of 1000PCS and a competitive price of $0.01 per unit, the LP-U031 is an excellent choice for bulk procurement. Packaging options include Reel, Tube, and Tray, ensuring safe and convenient delivery within 7 to 10 days.

The connector is crafted from premium Copper Alloy with Gold or Nickel Plating for superior conductivity and durability, while the shell is made from Copper Alloy and Steel to provide robust protection. It is engineered to offer a smooth connector insertion force ranging from 5 to 20N at a maximum rate of 12.5mm per minute, guaranteeing reliable connections every time.

The LP-U031 excels as a USB Communication Port Connector with a maximum contact resistance of 40 milliohms for VBUS and GND contacts, and 50 milliohms for other contacts, ensuring efficient signal transmission. Recommended processing involves IR Reflow at 260°C for 3 to 5 seconds to maintain optimal performance.

With a supply ability of 100,000PCS and flexible payment terms including T/T, Western Union, and L/C, the LP USB Connector is your trusted partner for integrating a Standard USB Plug Connector into your products.

Support and Services:

Our USB Connector product is designed to provide reliable and high-speed connectivity for a wide range of devices. For technical support, please ensure that your device’s drivers are up to date and that the connector is properly seated in the port. If you experience any issues, try using the connector with a different cable or device to isolate the problem.

We offer comprehensive services including installation guidance, troubleshooting assistance, and warranty support. Our technical team is committed to helping you maximize the performance and lifespan of your USB Connector.

For detailed product specifications, compatibility information, and user manuals, please refer to the documentation provided with your purchase or visit our official website.

Note that proper handling and usage according to the product guidelines will help prevent damage and ensure optimal functionality.
