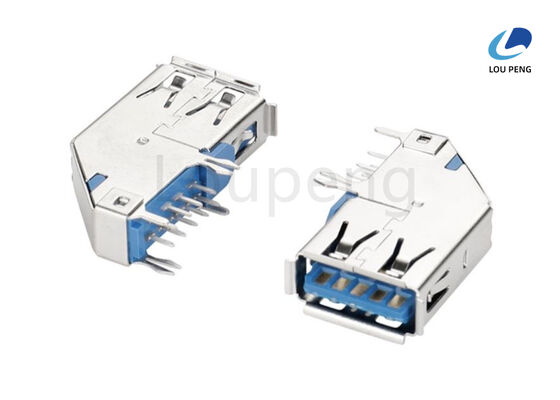

Contact impedance 30mΩ MAX USB Connector Plug unplug Connecting Mode USB 2.0 USB 3.0 USB 3.1 Micro USB MINI USB Compatible Durable

Product Description:

The USB Communication Port Connector is an essential component designed to facilitate seamless connectivity and data transfer between devices. As a Universal Serial Bus Connector, it supports the latest USB 3.1 standard, delivering impressive data transfer speeds of up to 10 Gbps. This high-speed capability ensures efficient communication for a wide range of applications, from simple file transfers to high-definition video streaming and rapid device synchronization.

Constructed with durability and reliability in mind, this Universal Serial Bus Connector features a robust shell made from a combination of copper alloy and steel. This sturdy construction not only provides excellent mechanical strength but also offers superior shielding against electromagnetic interference, ensuring consistent and stable signal transmission. The use of high-quality materials in the shell enhances the connector's longevity and resistance to wear and tear, making it suitable for frequent use in both consumer and industrial environments.

Electrical safety and performance are critical aspects of any USB Communication Port Connector. This product boasts a dielectric withstanding voltage of AC 100V, which guarantees its ability to operate safely under standard electrical conditions without risk of dielectric breakdown. Furthermore, the insulation impedance of the connector is rated at a minimum of 100 MΩ at 250V DC, providing excellent resistance to electrical leakage and ensuring signal integrity. The insulation resistance of at least 100 megohms further reinforces the connector’s capability to maintain high performance and safety standards over extended periods of use.

The Universal Serial Bus Connector is designed for easy integration into various electronic devices, including computers, peripherals, and consumer electronics. Its compatibility with USB 3.1 ensures backward compatibility with previous USB versions, enabling it to support a broad range of devices without compromising on speed or functionality. This versatility makes it an ideal choice for manufacturers and end-users looking for a reliable and efficient connection solution.

In addition to its technical excellence, this USB Communication Port Connector is engineered for user convenience. Its compact design and standardized interface make it straightforward to install and connect, reducing setup time and minimizing the potential for connection errors. Whether you are upgrading existing hardware or designing new systems, this Universal Serial Bus Connector offers a dependable and high-performance option to meet your connectivity needs.

To summarize, this USB Communication Port Connector stands out as a high-quality, durable, and efficient Universal Serial Bus Connector that supports ultra-fast data transfer speeds of up to 10 Gbps under the USB 3.1 standard. Its copper alloy and steel shell provide durability and electromagnetic shielding, while its excellent electrical insulation properties ensure safety and signal integrity. Perfect for a wide range of applications, this connector is a reliable choice for anyone seeking to enhance their device connectivity with a Universal Serial Bus Connector that combines performance, safety, and ease of use.

Features:

• Product Name: USB Connector
• Compact USB Connection Interface for easy and efficient connectivity
• Connector extraction force: 8~20N, tested at a maximum rate of 12.5mm per minute
• Dielectric withstanding voltage: AC 100V
• Shell plated with Ni for enhanced durability and corrosion resistance
• Pressure resistance test: 250V AC to ensure reliability under stress
• Item includes both Male and Female USB Connector types
• High Speed USB Connector designed for fast data transfer rates

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U034, is a versatile and reliable USB Power and Data Connector designed to meet the demands of modern electronic devices. Manufactured in China and certified under ISO-9001:2000, this connector ensures high-quality standards and consistent performance. Its robust design supports both through hole and surface mount (SMT) mounting types, making it suitable for a wide range of PCB assembly processes. With a durability rating of 10,000 cycles, it guarantees long-lasting performance even in environments requiring frequent plug and unplug actions.

The LP-U034 serves as a Universal USB Interface Connector, ideal for applications that require dependable power delivery and data transfer capabilities. It is commonly used in consumer electronics, computer peripherals, industrial machinery, and automotive systems where a stable USB connection is critical. The connector’s insulator material, made from PBT or LCP with 30% glass fiber and UL94V-0 flame retardant rating, ensures excellent thermal stability and safety in various operating conditions.

Thanks to its low contact resistance—40 milliohms max for VBUS and GND contacts and 50 milliohms max for other contacts—the LP-U034 USB Data Transfer Connector facilitates efficient and stable data communication. This makes it perfect for devices such as external hard drives, USB hubs, portable chargers, and multimedia gadgets where fast and reliable data transfer is essential.

The product is available with flexible packaging options including reel, tube, or tray, catering to different manufacturing requirements. With a minimum order quantity of 1000 pieces and a competitive price of $0.01 per unit, it is an economical choice for bulk procurement. The delivery timeframe of 7 to 10 days ensures timely availability for production schedules. Payment terms are flexible, accepting T/T, Western Union, and L/C, which simplifies transactions for international buyers.

With a supply capacity of 100,000 pieces, the LP-U034 USB connector is well-suited for large-scale manufacturing and OEM projects. Its plug/unplug connecting mode supports easy installation and maintenance, enhancing user convenience. Overall, this USB connector is an excellent solution for manufacturers and designers looking for a high-quality, durable, and cost-effective USB Power and Data Connector that supports universal interfacing and reliable data transfer across various applications and industries.

Customization:

Introducing the LP USB Connector, model number LP-U034, proudly manufactured in China and certified with ISO-9001:2000 standards. This Standard USB Plug Connector is designed to provide reliable performance with an overall pull-out force of 1.02kgf MIN, ensuring secure connections in all applications.

As a Universal USB Interface Connector, it supports a contact current rating of 3.0A for the VBUS pin and its corresponding GND pin, and 0.25A minimum for all other contacts, delivering efficient power and data transfer. The connector also features excellent insulation resistance of 100 Megohms minimum and dielectric withstanding of AC 100V, guaranteeing safety and durability.

Our High Speed USB Connector is available with a minimum order quantity of 1000PCS, priced competitively at $0.01 per piece. Packaging options include Reel, Tube, or Tray to suit your logistics needs, with a delivery time of 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C.

With a supply ability of 100,000PCS, the LP-U034 USB Connector is ideal for mass production. The recommended manufacturing process is IR Reflow at 260°C for 3 to 5 seconds, ensuring optimal soldering quality and performance.
