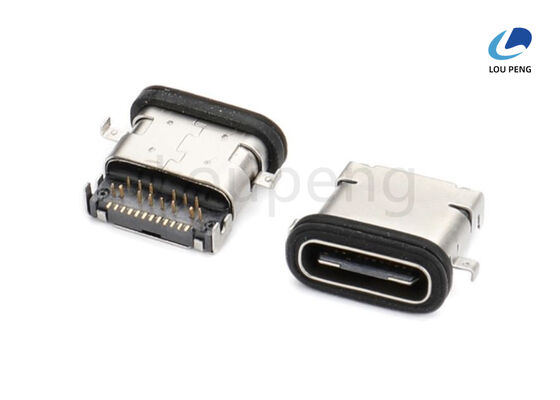

Insulation impedance 100MΩ MIN 25OV DC High Speed TYPE-C USB Connector with Au Plated 1U 15U 30U Contacts Ensuring Signal Transmission

Product Description:

The Male Female USB Connector is a high-quality component designed to deliver reliable and efficient connectivity for a wide range of electronic devices. Engineered to meet the demanding requirements of modern USB applications, this connector serves as an essential USB Peripheral Connection Interface that facilitates seamless communication between devices. Whether you are looking to establish a stable connection for data transfer or power delivery, this High Speed USB Connector is an ideal choice for both professional and consumer electronics.

One of the standout features of this USB Data Transfer Connector is its robust construction. Made from a premium copper alloy, the connector is available with either gold or nickel plating. These plating options not only enhance the durability and corrosion resistance of the connector but also ensure excellent electrical conductivity, which is critical for maintaining signal integrity during high-speed data transmissions. The gold plating, in particular, provides superior resistance to oxidation, making it suitable for environments where long-term reliability is paramount.

Designed to operate efficiently across a broad temperature range, the Male Female USB Connector can function reliably in environments with temperatures ranging from as low as -55°C to as high as 85°C. This wide operating temperature range makes it suitable for use in various industrial, automotive, and outdoor applications where temperature extremes may be encountered. Its resilience to harsh temperature conditions ensures uninterrupted performance and reduces the risk of connection failure due to thermal stress.

Another critical attribute of this connector is its impressive insulator resistance, rated at a minimum of 1000MΩ. This high level of insulation resistance is crucial in preventing electrical leakage and interference, thereby safeguarding the integrity of the data signals transmitted through the connector. It also contributes to the overall safety and reliability of the USB connection, making it suitable for sensitive electronic equipment where signal accuracy is vital.

In addition to its excellent electrical and mechanical properties, this USB connector is designed with environmental considerations in mind. It is fully RoHS compliant and halogen-free, adhering to stringent environmental regulations that restrict the use of hazardous substances. This compliance not only ensures that the connector is safe for use in environmentally conscious applications but also supports manufacturers in meeting global standards for sustainable electronics production.

As a versatile Male Female USB Connector, it is compatible with a variety of USB devices and peripherals, making it a flexible choice for system integrators and product designers. Its design supports high-speed data transmission protocols, making it suitable for applications that require rapid and reliable USB data transfer. Whether connecting external storage devices, input peripherals, or communication hardware, this connector provides a stable and efficient interface to enhance overall system performance.

In summary, the Male Female USB Connector combines superior materials, robust construction, and environmental compliance to offer a reliable solution for USB connectivity needs. Its ability to operate over a wide temperature range, coupled with high insulator resistance and excellent plating options, ensures long-lasting performance in diverse applications. As a High Speed USB Connector and USB Peripheral Connection Interface, it stands out as a dependable choice for anyone seeking a high-quality USB Data Transfer Connector that meets both technical and environmental standards.

Features:

• Standard USB Plug Connector for reliable connectivity
• Compact USB Connection Interface suitable for various devices
• Universal Serial Bus Connector supporting multiple USB types: USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB
• Overall insertion force: 3.57kgf MAX for easy and secure connection
• Protection Level: IP67, ensuring dust and water resistance
• Durability rated at 10,000 cycles for long-lasting performance
• High insulation resistance of 100 Megohms minimum for safety and reliability

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U033, is a high-quality product originating from China, designed to meet rigorous standards with ISO-9001:2000 certification. This USB connector serves as a reliable External Device Connection Port, making it an essential component in various electronic devices and systems. Its universal USB interface connector design ensures compatibility across a wide range of devices, facilitating seamless communication and data transfer.

Ideal for use in consumer electronics, computers, peripherals, and embedded systems, the LP-U033 USB connector supports efficient USB data transfer connector functionality. It enables fast and stable connections between external devices such as keyboards, mice, printers, cameras, and storage devices. The plug/unplug connecting mode provides convenient and user-friendly operation, allowing users to connect and disconnect devices effortlessly without compromising performance.

With a plated thickness of 1U and a durability rating of 10,000 cycles, this USB connector guarantees long-lasting use even in demanding environments. The dielectric withstanding voltage of AC 100V and insulation impedance of 100MΩ minimum at 250V DC ensures safety and reliability in electrical insulation, which is critical for preventing short circuits and maintaining signal integrity during data transmission.

The LP-U033 USB connector is packaged efficiently in Reel, Tube, or Tray formats, catering to various assembly and manufacturing needs. With a minimum order quantity of 1000PCS and a competitive price point of 0.01 per unit, it is suitable for bulk procurement by manufacturers and suppliers. The supply ability of 100,000PCS and a delivery time frame of 7 to 10 days guarantee timely fulfillment of orders.

Payment terms including T/T, Western Union, and L/C offer flexibility for international buyers. This USB connector is widely applicable in scenarios requiring high-speed data transfer and stable external device connection ports, such as in computer hubs, docking stations, industrial control systems, and consumer electronics. Its universal USB interface connector design allows it to seamlessly integrate into diverse applications where dependable connectivity and durability are paramount.

Customization:

Our USB Connector product, branded as LP with model number LP-U033, offers versatile product customization services to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this connector ensures high quality and reliability.

We provide a range of types including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB, suitable for various applications as a USB Communication Port Connector, Standard USB Plug Connector, or Universal Serial Bus Connector. The connectors are made from copper alloy with gold or nickel plating, featuring a nickel-plated shell for enhanced durability and performance.

Each connector withstands a dielectric voltage of 100 VRMS AC minimum and supports up to 10,000 connection cycles, ensuring long-lasting usage. Packaging options include Reel, Tube, and Tray to suit your production and logistics preferences.

Our minimum order quantity is 1000 PCS, with a competitive price of $0.01 per unit and a supply ability of 100,000 PCS. Delivery time ranges from 7 to 10 days, and we accept flexible payment terms including T/T, Western Union, and L/C.

Choose our LP-U033 USB Connector for a reliable, customizable solution that meets industry standards and your unique requirements for USB Communication Port Connectors, Standard USB Plug Connectors, and Universal Serial Bus Connectors.

Support and Services:

Our USB Connector product is designed to provide reliable and high-speed data transfer and charging capabilities. For technical support, please ensure that your device firmware and drivers are up to date to guarantee optimal performance.

If you experience any connectivity issues, verify that the USB Connector is properly seated in the port and that the cable is free from damage. Using certified cables and accessories is recommended to avoid compatibility problems.

For installation and usage guidelines, refer to the user manual included with your product. It contains detailed instructions on connecting and configuring the USB Connector with various devices.

In case of hardware defects or malfunctions covered under warranty, please follow the return and replacement procedures outlined in the warranty documentation.

Our technical support team is committed to assisting you with troubleshooting and resolving any issues related to the USB Connector to ensure your complete satisfaction.

Packing and Shipping:

Each USB Connector is carefully packaged in a sturdy, protective box to prevent damage during transit. The packaging includes anti-static materials to ensure the product remains safe from electrostatic discharge. Clear labeling with product specifications and handling instructions is provided on the exterior of the package.

For shipping, the USB Connectors are securely placed in cushioned cartons with adequate padding to avoid movement and impact. We use reliable courier services to ensure timely and safe delivery. Tracking information is provided to customers for monitoring their shipment status.
