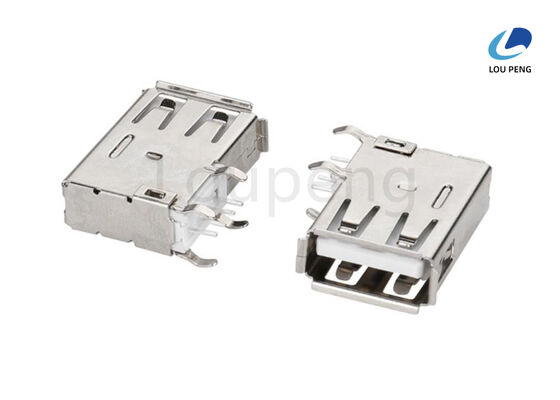

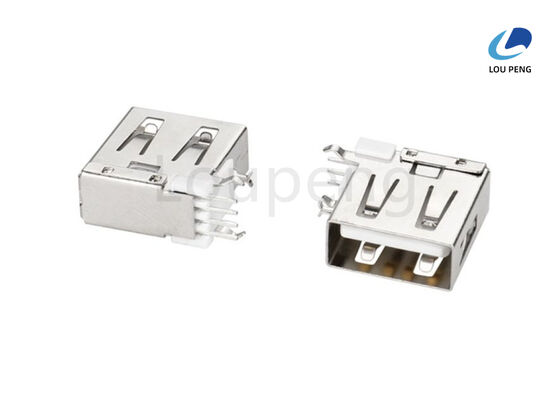

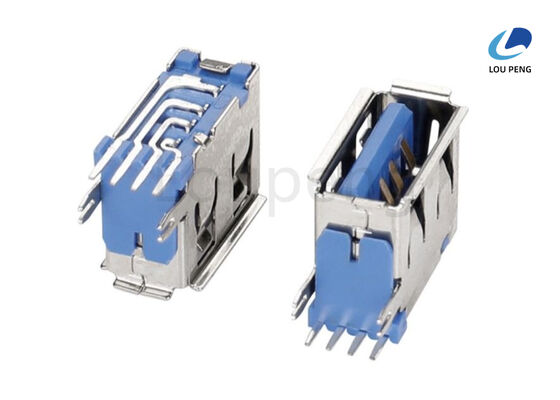

Solder Assembly USB Connector Using PBT / LCP 30 Percent Glass Fiber Insulator Material UL94V0 Supporting USB 2.0 USB 3.0 USB 3.1 Micro USB MINI USB

Product Description:

The USB Power and Data Connector is a high-performance solution designed to meet the demanding needs of modern electronic devices. Engineered to provide reliable and efficient connectivity, this connector supports data transfer speeds of up to 10 Gbps, leveraging the advanced capabilities of USB 3.1 technology. Whether you are transferring large files, streaming high-definition media, or syncing data between devices, this USB Power and Data Connector ensures fast and stable data transmission with minimal latency.

One of the standout features of this connector is its robust protection level, rated at IP67. This means the connector is completely dust-tight and can withstand immersion in water up to one meter deep for 30 minutes. Such a high degree of protection makes it ideal for use in harsh environments or outdoor applications where exposure to dust, moisture, or accidental splashes is a concern. The IP67 rating guarantees durability and long-term performance, ensuring that the USB Power and Data Connector maintains its integrity and functionality even under challenging conditions.

The connecting mode of this product is designed for ease of use and convenience, featuring a simple plug/unplug mechanism. This intuitive design allows users to quickly connect and disconnect external devices without the need for additional tools or complex procedures. The plug/unplug mode not only facilitates seamless integration with a wide range of external device connection ports but also enhances user experience by minimizing connection time and effort.

In terms of electrical performance, the USB Power and Data Connector excels with exceptionally low contact impedance and resistance values. The contact impedance is maintained at a maximum of 30 milliohms, ensuring minimal signal loss and optimal power delivery. Additionally, the contact resistance is carefully controlled, with a maximum of 40 milliohms for VBUS and GND contacts, and 50 milliohms for other contacts. These specifications contribute to stable electrical connections, reducing the risk of overheating or signal degradation and improving overall device reliability.

Designed for versatility and compatibility, this connector serves as a reliable external device connection port for a variety of applications, including laptops, desktops, mobile devices, and industrial equipment. Its ability to handle both power and data transmission makes it a critical component in modern electronic ecosystems, where seamless integration and efficient communication between devices are essential.

Moreover, the USB Power and Data Connector is built with high-quality materials and precise manufacturing standards, ensuring longevity and consistent performance over repeated use cycles. Its compact and robust design allows it to fit into tight spaces without compromising functionality, making it suitable for both consumer electronics and professional-grade equipment.

In summary, the USB Power and Data Connector is a cutting-edge solution that combines high-speed data transfer, excellent protection against environmental factors, user-friendly connection modes, and superior electrical characteristics. Whether you need a reliable external device connection port for data synchronization, charging, or peripheral connectivity, this product delivers exceptional performance and durability, meeting the rigorous demands of today’s technology-driven world.

Features:

• Product Name: USB Connector
• Universal Serial Bus Connector with Ni Plated Shell for enhanced durability
• High Speed USB Connector supporting efficient data transfer
• Standard USB Plug Connector designed for reliable connectivity
• Shell plated with Nickel (Ni) for corrosion resistance
• Recommended IR Reflow process at 260°C for 3 to 5 seconds
• Contact plating options: Gold (Au) plated 1U, 15U, and 30U for optimal conductivity
• Dielectric withstanding voltage: Minimum 100 VRMS AC to ensure safety and performance
• Constructed from Copper Alloy with Gold or Nickel plating for superior electrical performance

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U032, is a high-quality Universal Serial Bus Connector manufactured in China. Certified under ISO-9001:2000 standards, this product guarantees reliable performance and durability, making it an ideal choice for a wide range of electronic applications. With a minimum order quantity of 1000PCS and a competitive price of 0.01 per unit, the LP-U032 USB Data Transfer Connector offers excellent value for manufacturers and OEMs looking to integrate high-speed USB connectivity into their devices.

This High Speed USB Connector is designed to support fast and efficient data transmission, featuring contacts plated with selective plating and a nickel-plated shell to ensure corrosion resistance and long-term stability. The contact impedance is maintained at a maximum of 30mΩ, which contributes to consistent signal integrity and optimal data transfer rates. The connector’s contacts are available in Au Plated 1U, 15U, and 30U options, catering to various electrical requirements and enhancing connectivity performance.

The LP-U032 USB Connector is suitable for multiple application occasions and scenarios. It is widely used in consumer electronics such as laptops, desktops, tablets, and smartphones, where seamless USB data transfer is essential. In industrial environments, the connector’s robust construction and IR Reflow soldering compatibility (recommended at 260°C for 3 to 5 seconds) make it perfect for integration into embedded systems, instrumentation, and automation equipment. Additionally, the connector’s adaptability is demonstrated through its packaging options—Reel, Tube, or Tray—facilitating easy incorporation into automated assembly lines and ensuring efficient logistics and inventory management.

With a supply ability of 100,000PCS and a delivery time frame of 7 to 10 days, the LP-U032 USB Data Transfer Connector meets the demands of high-volume production. Payment terms including T/T, Western Union, and L/C provide flexibility for global buyers. The combination of superior build quality, versatile application scenarios, and efficient supply chain support makes the LP-U025 High Speed USB Connector an excellent solution for any project requiring reliable USB connectivity.

Customization:

Introducing the LP brand USB Communication Port Connector, model number LP-U032, manufactured in China with ISO-9001:2000 certification. This Universal Serial Bus Connector is designed for high reliability and performance, making it an ideal choice for various electronic applications.

Our USB Communication Port Connector features selective plating on copper alloy contacts with gold or nickel plating, ensuring durability and excellent conductivity. The contact current rating is 3.0A for the VBUS pin and its corresponding GND pin, and 0.25A minimum for all other contacts, providing stable and efficient power delivery.

The connector boasts an overall insertion force of 3.57kgf max, with contact resistance of 40 milliohms max for VBUS and GND contacts, and 50 milliohms max for other contacts. This ensures reliable connections and optimal signal integrity for your USB communication needs.

We offer flexible packaging options including reel, tube, and tray, catering to your specific requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.01 USD per unit, this product is ideal for both small and large-scale projects.

Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C, providing convenience and security for your transactions.

Choose the LP USB Communication Port Connector for a reliable and high-quality Universal Serial Bus Connector solution. Contact us today to customize your order and meet your exact specifications.
