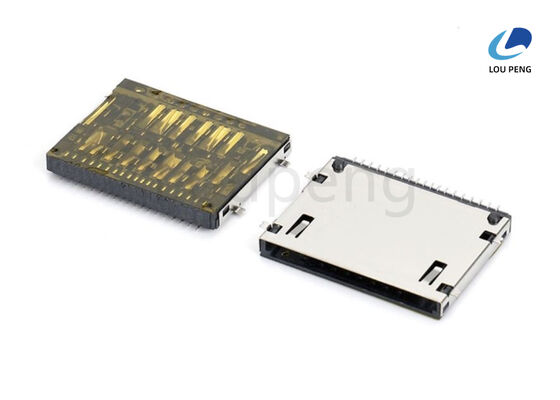

Contact Resistance 40 Megohms Max SD Holder Connector with Hl Temp Plastic UL 94V-0 Rated Insulator and 1000 MΩ Minimum Insulation Resistance

Product Description:

The Secure Digital Holder Connector is an essential component designed to provide reliable and efficient connectivity for Secure Digital (SD) cards in various electronic devices. Engineered with precision and durability in mind, this SD Memory Slot Connector ensures seamless integration and optimal performance for devices requiring SD card interfacing, such as digital cameras, portable media players, laptops, and other consumer electronics.

One of the standout features of this SD Holder Connector is its sleek black color, which not only offers a professional and unobtrusive appearance but also complements the design aesthetics of most electronic devices. The black finish helps in minimizing visual distractions while maintaining a clean and modern look, making it an ideal choice for both consumer and industrial applications.

To guarantee superior electrical performance and durability, the contact points within this SD Card Reader Connector are gold plated. Gold plating significantly enhances conductivity and resistance to corrosion, ensuring stable data transmission and long-lasting performance even under frequent insertion and removal cycles. This feature is particularly important in high-use scenarios where consistent and reliable contact is critical.

The Secure Digital Holder Connector is designed with a contact separation force of at least 0.20kgf, which means the contacts maintain firm engagement with the SD card's terminals to prevent any intermittent connections during operation. This minimum contact separation force ensures that the SD card remains securely connected within the slot, reducing the risk of data loss or communication errors caused by loose contacts.

Additionally, this SD Memory Slot Connector is equipped with a card detect switch, a vital feature that allows the host device to automatically recognize when an SD card is inserted or removed. This automatic detection capability enhances user convenience by enabling immediate device response, such as mounting the card for data access or safely ejecting it without requiring manual intervention. The presence of the card detect switch also helps in preventing data corruption by ensuring proper device behavior during card insertion and removal.

The card insertion force required for this SD Card Reader Connector ranges between 30 to 50 Newtons (N). This carefully calibrated insertion force strikes a balance between ease of use and secure retention. It ensures that users can insert and remove SD cards without excessive effort while maintaining enough resistance to keep the card firmly in place during operation. Such a design consideration is crucial for maintaining both user comfort and connection reliability.

Overall, the Secure Digital Holder Connector offers a robust, reliable, and user-friendly solution for integrating SD card functionality into a wide array of electronic devices. Its combination of a stylish black exterior, gold-plated contacts, optimal contact separation force, integrated card detect switch, and balanced card insertion force makes it an excellent choice for manufacturers and designers seeking to deliver dependable SD card connectivity.

Whether you are developing a new SD card reader or upgrading an existing device, this SD Memory Slot Connector provides the performance and features necessary to meet modern data storage and transfer demands. By incorporating this connector, you ensure that your device will support efficient and secure SD card interfacing, enhancing the overall user experience and device reliability.

Features:

• Product Name: SD Holder Connector
• Card Insertion Force: 30-50N for easy and reliable card insertion
• Equipped with Card Detect Switch for accurate card presence detection
• Contact Separation Force: Minimum 0.20kgf to ensure stable connections
• Voltage Rating: AC 250V for safe and efficient power handling
• Housing made of High Temperature Plastic, UL 94V-0 rated for durability and safety
• Ideal for use as a Secure Digital Card Connector
• Suitable for SD Card Holder Assembly applications
• Designed for integration in SD Card Reader Connector systems

Technical Parameters:

Applications:

The LP brand SD Holder Connector, model number LP-SD019, is an essential component widely used in various electronic devices requiring reliable and efficient SD Card Reader Connector solutions. Manufactured in China and certified under ISO-9001:2000, this Secure Digital Holder Connector guarantees high-quality standards and durability for diverse applications. With a minimum order quantity of 1000PCS and a competitive price of 0.0003 per unit, it offers excellent value for manufacturers and designers in the electronics industry.

This SD Card Holder Assembly is designed with versatility in mind, featuring 8, 9, or 11 pins to accommodate different SD card specifications. The surface mount type enhances ease of installation on printed circuit boards, ensuring stable and secure connections. The housing is made from high-temperature plastic certified to UL 94V-0 standards, providing superior heat resistance and flame retardancy. Additionally, the stainless steel shell (t=0.20mm) offers enhanced mechanical protection and longevity, making it suitable for demanding environments.

One of the key features of the LP-SD019 is the integrated card detect switch, which allows devices to detect the presence or absence of an SD card automatically. This functionality is critical in applications such as digital cameras, portable media players, and handheld gaming devices, where quick and accurate card recognition is necessary for optimal performance. The availability of packaging options such as reel, tube, and tray ensures compatibility with different manufacturing workflows, facilitating efficient assembly processes.

The SD Card Reader Connector is especially ideal for applications in consumer electronics, automotive infotainment systems, industrial control equipment, and embedded systems where reliable data storage and transfer are paramount. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures timely fulfillment of large-scale orders. Payment terms including T/T, Western Union, and L/C provide flexible transaction options to accommodate global customers.

In summary, the LP-SD019 Secure Digital Holder Connector stands out as a dependable SD Card Holder Assembly solution designed to meet the stringent demands of modern electronic devices. Its robust construction, multiple pin configurations, and card detection capabilities make it an indispensable component for enhancing device functionality and user experience across a wide range of application occasions and scenarios.

Customization:

Our LP brand SD Holder Connector, model number LP-SD019, is proudly made in China and certified under ISO-9001:2000 standards, ensuring high quality and reliability. Designed specifically as an SD Memory Card Holder and SD Card Reader Connector, this product features a stainless steel shell with a thickness of 0.20mm, providing excellent durability and protection. The connector offers a withstanding voltage of AC 500V and an insulation resistance of at least 1000 MΩ, making it a robust choice for various applications.

We offer flexible product customization services with a minimum order quantity of 1000PCS, priced competitively at 0.0003 per unit. Packaging options include Reel, Tube, or Tray to suit your manufacturing and assembly needs. Our supply ability reaches up to 100,000PCS, ensuring timely fulfillment of large orders. Delivery time is estimated between 7 to 10 days, supporting your project timelines efficiently.

Our SD Card Reader Connector is designed to operate reliably within a temperature range of -40°C to 90°C, making it suitable for diverse environmental conditions. Payment terms are convenient and varied, accepting T/T, Western Union, and L/C to accommodate different business preferences.

Choose the LP-SD019 SD Memory Card Holder and SD Card Reader Connector for a dependable, high-quality solution with excellent electrical and mechanical performance, backed by comprehensive customization and supply capabilities.

Support and Services:

Product Technical Support and Services for the SD Holder Connector include comprehensive assistance to ensure optimal performance and reliability. Our support team provides detailed installation guidance, troubleshooting assistance, and maintenance tips to help you maximize the use of your SD Holder Connector.

We offer technical documentation, including datasheets and user manuals, to help you understand product specifications and compatibility requirements. Our experts are available to answer your technical queries and provide recommendations tailored to your application needs.

In addition, we provide repair and replacement services under warranty terms to address any manufacturing defects or performance issues. Regular firmware and software updates, if applicable, are also supplied to enhance functionality and security.

For customized solutions, we offer consultation services to assist in integrating the SD Holder Connector into your specific system architecture. Our goal is to deliver reliable, high-quality support that ensures your satisfaction and the seamless operation of your product.

Packing and Shipping:

Product Packaging:

The SD Holder Connector is carefully packaged to ensure protection during transit. Each unit is placed in an anti-static bag to prevent electrostatic damage. The bagged product is then securely positioned within a sturdy cardboard box with cushioning materials to absorb shocks and vibrations. Packaging is designed to be compact yet durable, minimizing environmental impact while ensuring the product arrives in perfect condition.

Shipping:

We offer worldwide shipping with multiple delivery options to meet your needs. All orders are processed within 1-2 business days. The SD Holder Connector is shipped via reliable carriers with tracking information provided. Shipping methods include standard, expedited, and express services. International shipments comply with customs regulations and include necessary documentation to avoid delays. Customer satisfaction is our priority, and we ensure timely and safe delivery of your order.
