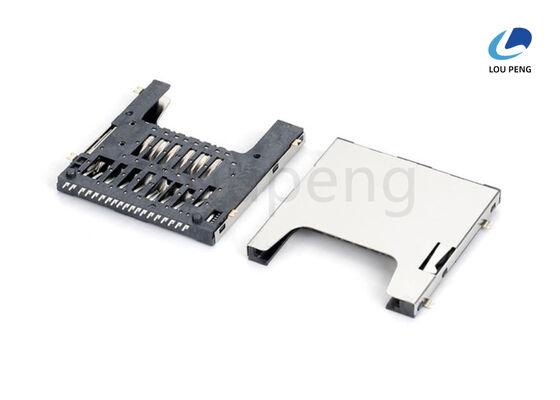

Dielectric Withstanding Voltage AC 50OV Rms SD Card Reader Connector Built Using High Temperature Plastic UL 94V-0 Housing for Data Transfer

Product Description:

The SD Holder Connector is a highly reliable and durable component designed to provide seamless connectivity for SD memory devices. This product is an essential part of any electronic system requiring SD card integration, offering a robust and efficient SD Card Interface Holder solution. Engineered with precision, the SD Holder Connector ensures consistent performance, making it an ideal choice for various applications including consumer electronics, industrial devices, and embedded systems.

One of the key features of this SD Card Holder Assembly is the inclusion of a card detect switch. This functionality allows the system to automatically recognize when an SD card is inserted or removed, enhancing user convenience and system responsiveness. The card detect switch improves the overall user experience by enabling instant communication between the SD memory slot connector and the host device, ensuring data integrity and preventing potential errors during card insertion or removal.

The housing of the SD Holder Connector is constructed from high temperature plastic rated UL 94V-0, which guarantees excellent flame retardance and long-term durability. This high-quality material not only protects the internal contacts but also ensures safe operation under elevated temperatures, making the SD Card Interface Holder suitable for demanding environments. The robust housing design also provides mechanical strength and resistance to wear, maintaining the connector's reliability over repeated insertion cycles.

Electrical performance is a critical aspect of any SD Card Holder Assembly, and this product excels in this regard. It features a contact resistance of 40 Megohms maximum, ensuring minimal electrical loss and stable signal transmission. This low contact resistance is crucial for maintaining the integrity of data transfer between the SD card and the host device, reducing the risk of data corruption or communication failures.

The SD Holder Connector also boasts a carefully calibrated card push insertion and out force, ranging from 0.7 to 1.20 kgf. This optimal force range guarantees that the SD card is securely held in place while allowing smooth insertion and removal without excessive resistance. The balance between secure retention and ease of use is vital for user satisfaction and the longevity of both the connector and the SD card itself.

In addition to mechanical and electrical excellence, the plating quality of the SD Card Interface Holder is noteworthy. The solder tail contact area is plated with tin/lead to a thickness of 100 microinches, while the contact area itself is gold plated to 10 microinches. This combination of plating materials ensures excellent solderability, corrosion resistance, and reliable electrical contact over extended periods of use. The gold plating on the contacts provides superior conductivity and reduces oxidation, which is essential for maintaining consistent performance.

Overall, the SD Holder Connector is a premium SD Memory Slot Connector solution that combines advanced features such as a card detect switch, high temperature UL 94V-0 plastic housing, low contact resistance, optimized insertion force, and high-quality plating. This makes it an excellent choice for manufacturers and designers looking to implement a dependable and efficient SD Card Holder Assembly in their products. Whether it is for portable devices, industrial machinery, or consumer electronics, this SD Holder Connector offers the performance and reliability needed for seamless SD card integration.

Features:

• Product Name: SD Holder Connector
• Supports Micro SD, MINI SD, 4-in-1 (MS + SD + MMC + XD), and 3-in-1 card formats
• Spring Type: SWP for reliable card retention
• Dielectric Withstanding Voltage: AC 500V R.m.s. ensures electrical safety
• Card Push Insertion/Out Force: 0.7~1.20 kgf for smooth card operation
• Plating: Tin/Lead 100u" at solder tail contact area with 10u" gold plating for enhanced durability and conductivity
• Ideal SD Memory Card Holder for various device applications
• Functions as an efficient SD Card Interface Holder
• Designed as a Secure Digital Card Connector for stable and secure connections

Technical Parameters:

This product is a Secure Digital Card Connector, SD Card Reader Connector, and Secure Digital Holder Connector designed for reliable and secure connection in various electronic devices.

Applications:

The LP SD Holder Connector, model number LP-SD018, is a versatile and reliable component designed to meet the demands of modern electronic devices requiring secure and efficient memory card connections. Manufactured in China under strict ISO-9001:2000 certification, this product guarantees high quality and consistent performance. Featuring a combination of plastic and metal materials with gold-plated contacts, the SD Holder Connector ensures excellent conductivity and durability, making it ideal for long-term use in various applications.

This SD Card Socket Connector is perfect for devices that utilize Secure Digital cards, including Micro SD, Mini SD, and other memory formats such as MMC and XD cards, thanks to its 4-in-1 and 3-in-1 compatibility design. Its robust construction supports a withstanding voltage of AC 500V and a voltage rating of AC 250V, providing safe and stable operation in various electrical environments. The connector's packaging options include reel, tube, and tray, catering to different assembly needs and making it convenient for manufacturers to handle and integrate into their production lines.

With a minimum order quantity of 1000PCS and a competitive price of 0.0003 per unit, the LP-SD018 SD Memory Slot Connector is an excellent choice for large-scale production. The supply ability of up to 100,000 pieces combined with a delivery time of 7 to 10 days ensures timely fulfillment of orders. Payment terms are flexible, accepting T/T, Western Union, and L/C, facilitating smooth transactions for international buyers.

This product finds its application in a wide range of scenarios, including consumer electronics such as digital cameras, camcorders, MP3 players, and handheld gaming devices, all of which rely on Secure Digital Card Readers for data storage and transfer. Additionally, it is widely used in industrial equipment, automotive systems, and embedded systems where reliable memory card connections are crucial for data logging and retrieval. The LP SD Holder Connector’s compact design and high performance make it an indispensable component for manufacturers seeking dependable and efficient memory card solutions.

In summary, the LP SD Holder Connector LP-SD018 offers a high-quality, versatile, and cost-effective solution for integrating SD card sockets into various electronic devices. Its multi-format compatibility, sturdy materials, and excellent electrical properties make it the preferred choice for anyone in need of a dependable SD Memory Slot Connector or Secure Digital Card Reader component.

Customization:

Our LP brand SD Holder Connector, model number LP-SD018, is a high-quality product originating from China, certified with ISO-9001:2000 to ensure reliable performance. Designed for Secure Digital Card Reader applications, this connector features a durable contact material made of copper alloy and combines plastic and metal for superior durability and stability.

The SD Holder Connector supports a voltage rating of AC 250V and offers excellent dielectric withstanding voltage of AC 500V, ensuring safe and stable operation in various electronic devices. It is ideal for use in Secure Digital Card Slot assemblies and SD Card Holder Assembly projects, providing reliable connectivity and long-lasting performance.

We offer flexible packaging options including reel, tube, or tray to meet different production requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0003 per unit, our supply ability reaches up to 100,000PCS, guaranteeing efficient delivery within 7 to 10 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C methods. Choose the LP-SD018 SD Holder Connector for your Secure Digital Card Reader and Secure Digital Card Slot needs, backed by quality assurance and prompt service.

Support and Services:

Our SD Holder Connector product is designed to provide reliable and secure connections for SD cards in various electronic devices. For technical support, please ensure that your device is powered off before installing or removing the SD Holder Connector to prevent damage.

If you experience any issues with the SD Holder Connector, first verify that the SD card is properly seated and that there is no debris obstructing the connection. Clean the contacts gently with a soft, dry cloth if necessary.

Ensure compatibility by using SD cards that meet the specifications outlined in the product documentation. Incompatible cards may not function correctly or could cause damage to the connector.

For firmware or driver updates related to the SD Holder Connector, refer to the device manufacturer's website or support portal to download the latest versions.

If problems persist, consult the troubleshooting section of the product manual for detailed guidance on resolving common issues such as connectivity failures or read/write errors.

Regular maintenance and careful handling will extend the life of your SD Holder Connector and maintain optimal performance. Avoid exposure to moisture, extreme temperatures, and physical stress.

Our technical support team is committed to assisting you with any questions or concerns regarding the SD Holder Connector to ensure a seamless user experience.

Packing and Shipping:

Product Packaging:

The SD Holder Connector is carefully packaged to ensure maximum protection during transit. Each unit is enclosed in an anti-static bag to prevent any electrostatic damage. The product is then placed in a sturdy cardboard box with foam padding to absorb shocks and prevent movement. For bulk orders, multiple units are securely packed in a larger box with additional cushioning materials to maintain product integrity.

Shipping:

We offer reliable shipping options worldwide, including standard and expedited services. All shipments are tracked and insured to guarantee safe delivery. Orders are processed within 1-2 business days, and customers receive a tracking number once the package is dispatched. We work with trusted carriers to ensure timely and secure delivery of the SD Holder Connector to your doorstep.
