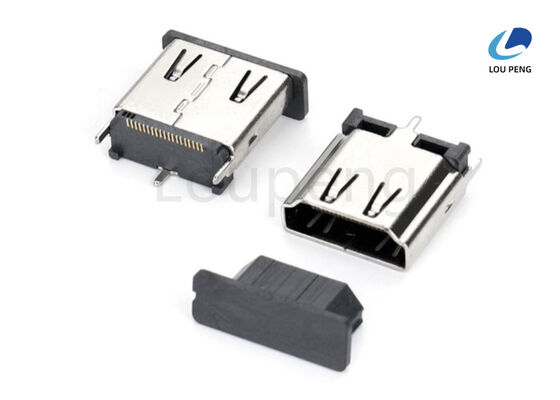

Black HDMI Video Audio Connector Including Insertion Cycle Maximum 10000 Built to Withstand Frequent Connection Cycles

Product Description:

The HDMI Interface Connector Plug is an essential component for anyone seeking reliable and high-performance connectivity solutions for their audiovisual devices. Designed with precision and engineered to meet rigorous industry standards, this HDMI Interface Connector Plug ensures seamless transmission of high-definition video and audio signals between devices. Whether you are setting up a home theater system, connecting a gaming console, or integrating professional AV equipment, this connector plug offers exceptional performance and durability.

One of the standout features of this HDMI Interface Connector Plug is its 19-pin configuration, which is standard for modern HDMI connections. The 19 pins facilitate the transfer of high-quality signals, supporting various HDMI specifications including Full HD, 4K, and even higher resolutions. This pin arrangement is crucial for maintaining the integrity of audio and video data, ensuring that users experience crisp visuals and clear sound without interference or data loss.

Durability and reliability are paramount in any connector, and this High Speed HDMI Cable Connector excels in these areas. The contact finish is plated with 1u Au (1 micron of gold), which provides excellent corrosion resistance and superior conductivity. This gold plating guarantees a stable and consistent connection over time, minimizing signal degradation and enhancing overall performance. The plating time of 24/48 hours indicates a thorough and meticulous manufacturing process, ensuring that each contact point is uniformly coated for maximum protection and efficiency.

Shielding is another critical aspect of the HDMI Interface Connector Plug, and this product is equipped with advanced aluminum foil and braided shielding. This dual-layer shielding effectively protects the signal from electromagnetic interference (EMI) and radio frequency interference (RFI), which can cause signal distortion and reduce the quality of audio and video output. The combination of aluminum foil and braided shielding provides a robust barrier that maintains signal integrity, especially in environments with multiple electronic devices operating simultaneously.

The housing of the connector is crafted from UL94V-0 rated Liquid Crystal Polymer (LCP) in black, which is known for its excellent flame retardant properties and mechanical strength. UL94V-0 is a stringent flammability standard, ensuring that the housing material resists ignition and prevents the spread of fire. The use of LCP also contributes to the connector’s durability, providing resistance to heat, chemicals, and wear. This makes the HDMI Interface Connector Plug suitable for both consumer electronics and industrial applications where reliability under demanding conditions is crucial.

As a High Speed HDMI Cable Connector, this product supports high bandwidth data transmission, making it compatible with the latest HDMI standards including HDMI 2.0 and HDMI 2.1. It enables the transfer of high frame rate video, HDR content, and multi-channel audio with minimal latency. This ensures an immersive viewing experience whether you are streaming movies, playing games, or conducting professional presentations.

In summary, the HDMI Interface Connector Plug with 19 pins, 1u Au contact finish, aluminum foil and braided shielding, and UL94V-0 LCP black housing is a top-tier solution for anyone looking to achieve reliable, high-speed HDMI connectivity. Its robust construction, superior materials, and adherence to industry standards make it an ideal choice for high-performance HDMI cable assemblies, ensuring excellent signal quality and long-lasting durability. Whether used in consumer electronics, gaming setups, or professional AV installations, this connector plug delivers outstanding performance and peace of mind.

Features:

• Product Name: HDMI Connector
• Mating Force: 44.1N Max.
• Insertion Force: 3.7 Kgf Max
• Maximum Data Rate: 18 Gbps
• Contact Resistance: 30 Milliohms Max.
• Product Series: HDMI / Mini HDMI / Micro HDMI Series
• Supports HDMI Signal Transmission Connector functionality
• Designed as a High Speed HDMI Cable Connector for reliable performance
• Complies with standards of High Definition Multimedia Interface Connector

Technical Parameters:

This High Speed HDMI Cable Connector is a reliable HDMI Multimedia Connector Interface designed for superior performance. The HDMI Interface Connector Plug ensures consistent connectivity and durability for a wide range of HDMI applications.

Applications:

The LP-HD021 HDMI Connector, manufactured by the trusted brand LP, is an essential component designed for high-definition video and audio transmission. Originating from China and certified with ISO-9001:2000, this High Definition Video Connector ensures top quality and reliability for various applications. With a minimum order quantity of 1000PCS and a competitive price of 0.05 per unit, it is an ideal choice for manufacturers and distributors looking to integrate high-performance connectors into their products.

This High Speed HDMI Cable Connector is widely used in consumer electronics, including televisions, monitors, gaming consoles, Blu-ray players, and home theater systems. Its compatibility with HDMI cables ensures seamless connectivity and superior signal quality, making it perfect for delivering crystal-clear high-definition video and audio in both residential and commercial setups. Whether you are assembling multimedia devices or upgrading existing systems, the LP-HD021 connector offers a reliable solution.

In professional environments, such as conference rooms, broadcasting stations, and digital signage installations, the LP-HD021 proves invaluable. Its robust design, featuring a maximum mating force of 44.1N and a contact current rating of 0.5A AC(rms)/DC, guarantees stable and efficient connections even under frequent use. The connector’s welding temperature tolerance up to 260°C facilitates easy and secure soldering during production, enhancing manufacturing efficiency.

Packaging options including reel, tube, and tray allow for flexible handling and integration into automated assembly lines. With a supply ability of 100,000PCS and a delivery time of just 7 to 10 days, it supports large-scale production demands without compromising lead times. Payment terms such as T/T, Western Union, and L/C provide convenient transaction methods for global buyers.

The LP-HD021, finished in sleek black, not only ensures high-speed data transmission but also complements the aesthetic of modern electronic devices. Its design and performance make it an indispensable component in any application requiring a reliable High Speed HDMI Cable Connector to deliver superior audiovisual experiences.

Customization:

Our HDMI Connector, model number LP-HD021, is a premium HDMI Electronic Interface Connector designed and manufactured by the trusted brand LP. Originating from China, this High Definition Video Connector meets the stringent standards of ISO-9001:2000 certification, ensuring top quality and reliability.

We offer product customization services to suit your specific needs, with a minimum order quantity of 1000PCS. The pricing is competitive at $0.05 per unit, making it an excellent choice for bulk procurement. The HDMI Connector features superior shielding with aluminum foil and braided shield, guaranteeing excellent signal integrity and reduced interference.

The housing is crafted from UL94V-0 rated LCP material in black, providing durability and flame retardance. This High Definition Multimedia Interface Connector boasts a maximum mating force of 44.1N and a contact resistance not exceeding 30 milliohms, ensuring stable and reliable connections. It is rated for a voltage of 40V AC (RMS)/DC, suitable for various electronic applications.

Packaging options include reel, tube, or tray, tailored to your logistical preferences. Our supply ability stands at 100,000PCS with a delivery time of 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C, facilitating smooth transactions.

Choose our customizable HDMI Connector LP-HD021 for your high-performance electronic interface needs, combining quality, reliability, and excellent value in one product.

Support and Services:

For technical support and service inquiries regarding the HDMI Connector product, please refer to the product manual and installation guide provided with your purchase. Our comprehensive documentation includes detailed specifications, installation instructions, and troubleshooting tips to help you get the most out of your HDMI Connector.

If you encounter any issues or have questions that are not covered in the documentation, our technical support team is available to assist you. We recommend checking the FAQ section on our website for quick answers to common questions.

For warranty service and repairs, please ensure that you have your proof of purchase and product serial number ready. Our service centers are equipped to handle repairs and replacements in accordance with our warranty policy.

We are committed to providing high-quality support to ensure your satisfaction with our HDMI Connector product. Thank you for choosing our product.

Packing and Shipping:

Each HDMI Connector is individually packaged in a protective blister pack to ensure safety during transportation. The packaging is designed to prevent damage from impacts, dust, and moisture.

For bulk orders, connectors are securely packed in anti-static bags and then placed in sturdy cardboard boxes with adequate cushioning materials to avoid any movement or damage.

All packages are clearly labeled with product information, quantity, and handling instructions to facilitate smooth logistics and inventory management.

Shipping is carried out using reliable courier services with tracking options available. We ensure timely delivery with options for expedited shipping upon request.

Special care is taken to comply with international shipping regulations, including proper documentation and packaging standards to guarantee safe and efficient delivery worldwide.
