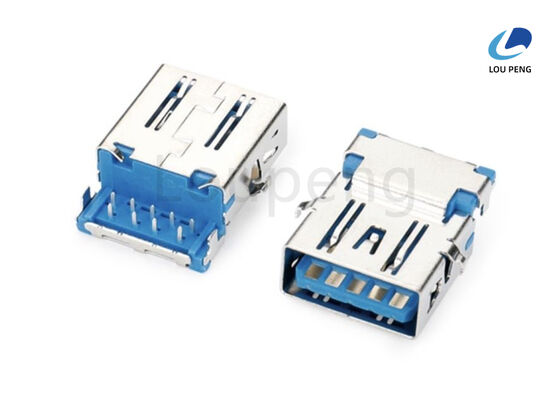

Connector insertion force at a maximum rate of 12.5mm per minute USB Connector designed for IR reflow 260°C 3 to 5 seconds assembly solder ensuring device connectivity

Product Description:

The High Speed USB Connector is an essential component designed to provide reliable and efficient data transfer in a wide range of electronic devices. Engineered with precision and durability in mind, this connector serves as a Compact USB Connection Interface that ensures seamless connectivity while maintaining a small footprint, making it ideal for modern, space-constrained applications.

One of the key attributes of this Universal USB Interface Connector is its robust mechanical performance. It boasts an overall pull-out force of at least 1.02 kgf, guaranteeing a secure connection that resists accidental disconnections during regular use. This strength is crucial for maintaining stable connections in environments where devices are frequently plugged and unplugged, providing users with confidence in the durability and reliability of their connections.

In addition to its mechanical resilience, this USB connector excels in electrical performance. It features a maximum contact impedance of 30 milliohms (mΩ), ensuring minimal resistance at the contact points. This low contact impedance is vital for maintaining high-quality signal transmission, reducing the risk of data loss or corruption. Consequently, users can expect fast and stable data transfer rates, which is especially important for applications requiring high-speed communication.

The assembly process for this connector is designed to be straightforward and compatible with standard manufacturing practices. It utilizes a solder assembly method, which provides a strong and reliable electrical and mechanical connection between the connector and the PCB (Printed Circuit Board). This assembly technique is widely used in the electronics industry and ensures that the connector remains firmly attached during operation.

To further enhance its durability and performance, the contacts of this USB connector are plated with a 1-micron thickness (1 U) plating. This plating layer serves multiple purposes: it improves corrosion resistance, enhances conductivity, and extends the lifespan of the connector. Such plating is critical in maintaining the integrity of the connection over time, especially in environments prone to oxidation or wear.

Moreover, the recommended manufacturing process for this High Speed USB Connector is IR (Infrared) Reflow soldering at 260°C for a duration of 3 to 5 seconds. This process ensures optimal solder joint quality, providing strong bonds without damaging the connector or the PCB. The IR reflow technique is widely adopted in surface mount technology (SMT) assembly lines and ensures consistent, high-quality results, supporting mass production demands.

In summary, this Compact USB Connection Interface is a versatile and reliable choice for integrating USB connectivity into a variety of devices. Its combination of strong mechanical retention, low electrical resistance, and durable plating makes it a dependable component for both consumer electronics and industrial applications. As a Universal USB Interface Connector, it supports compatibility across a broad spectrum of devices, promoting ease of use and interoperability.

Whether you are designing new electronic gadgets, upgrading existing systems, or requiring a dependable USB connection solution, this High Speed USB Connector offers the performance and reliability necessary to meet demanding technical requirements. Its compact size does not compromise its functionality, making it an excellent choice for modern electronics that demand both space efficiency and high-speed data communication.

By choosing this USB connector, manufacturers and designers can ensure their products deliver consistent, high-quality connectivity, helping to enhance user experience and product longevity. It stands as a testament to advanced engineering and manufacturing excellence in the realm of USB interface components.

Features:

• Product Name: USB Connector
• Type: USB Communication Port Connector
• Contact Resistance: 40 Milliohms Max for VBUS and GND Contacts; 50 Milliohms Max for Other Contacts
• IP Level: IP68, ensuring excellent protection against dust and water
• Durability: Rated for 10,000 cycles for long-lasting performance
• Operating Temperature Range: -55°C to 85°C for reliable operation in various environments
• Recommended Process: IR Reflow at 260°C for 3 to 5 seconds
• Function: Acts as a USB Data Transfer Connector for efficient communication
• Application: Suitable as a USB Communication Port Connector in multiple devices

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U035, is a high-quality Universal USB Interface Connector designed and manufactured in China. With ISO-9001:2000 certification, this product guarantees excellent reliability and performance, making it an ideal choice for a wide range of electronic devices requiring a robust USB Power and Data Connector. Its IP68 rating ensures superior protection against dust and water, allowing it to be used confidently in harsh environments, including outdoor and industrial applications.

This Universal USB Interface Connector is highly versatile, supporting various mounting types such as Through Hole, Surface Mount, and SMT, which makes it suitable for different PCB assembly processes. The Ni-plated shell provides excellent corrosion resistance and durability, while the connector insertion force ranges between 5 to 20N at a maximum rate of 12.5mm per minute, ensuring smooth and secure connections. Additionally, it boasts an insulation impedance of 100MΩ minimum at 250V DC, which guarantees stable electrical performance and safety.

The LP-U035 USB Connector is widely applied in numerous occasions and scenarios. It is perfect for consumer electronics like smartphones, tablets, laptops, and portable chargers that require a reliable USB Power and Data Connector for efficient power delivery and data transfer. The connector is also extensively used in industrial equipment, medical devices, automotive electronics, and communication devices, where durability and water resistance are critical.

Thanks to its robust IP68 protection level, this Universal USB Interface Connector is ideal for outdoor gadgets, marine electronics, and rugged computing devices that operate in environments exposed to dust, moisture, and other challenging conditions. The packaging options available—Reel, Tube, or Tray—allow flexible logistics solutions for manufacturers, while the supply ability of up to 100,000PCS and a minimum order quantity of 1000PCS ensure mass production needs can be met promptly.

With a competitive price of $0.01 per unit and a delivery time of 7 to 10 days, the LP-U035 USB Connector is also an economical solution for original equipment manufacturers (OEMs) and electronics assembly companies. Payment terms such as T/T, Western Union, and L/C provide convenient and secure transaction options for international buyers. Overall, this Universal USB Interface Connector by LP is a dependable, cost-effective, and versatile component that fits a broad spectrum of applications requiring efficient USB power and data connectivity.

Customization:

Introducing the LP USB Connector, model number LP-U035, a high-quality USB Communication Port Connector manufactured in China with ISO-9001:2000 certification. Designed to meet demanding standards, this Standard USB Plug Connector offers reliable performance with a dielectric withstanding voltage of 100 VRMS AC minimum and an insulation impedance of 100MΩ minimum at 250V DC, ensuring excellent insulator resistance of 1000MΩ minimum.

This USB Power and Data Connector supports data transfer speeds of up to 10 Gbps (USB 3.1), making it ideal for high-speed communication and power delivery applications. The assembly is done via solder, ensuring durability and stable connections.

With a minimum order quantity of 1000PCS and a competitive price of $0.01 per piece, LP provides flexible packaging options including reel, tube, or tray to suit your needs. Our supply ability reaches up to 100,000PCS with a delivery time of 7 to 10 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C. Choose the LP-U035 USB Connector for efficient and reliable USB communication and power solutions.

Support and Services:

For technical support and services related to the USB Connector product, please refer to the comprehensive user manual provided with your purchase. Our support team is available to assist with installation, troubleshooting, and maintenance to ensure optimal performance of your USB Connector.

We offer a range of services including product setup guidance, firmware updates, and compatibility checks. Should you encounter any issues, detailed FAQs and troubleshooting guides are accessible through our official website.

Additionally, warranty services and repair options are available for qualifying products. Please ensure you have your purchase details and product serial number ready when seeking assistance.

Our commitment is to provide timely and effective support to enhance your experience with our USB Connector product.

Packing and Shipping:

Each USB Connector is securely packaged in a sturdy, protective blister pack to prevent damage during transit. The packaging includes a clear display window to showcase the product and essential information such as specifications, compatibility, and usage instructions.

For shipping, the USB Connectors are carefully packed in cushioned boxes with additional padding to ensure safe delivery. We use reliable shipping carriers and provide tracking information to keep you updated on your order status. Our packaging is designed to be eco-friendly, using recyclable materials wherever possible.
