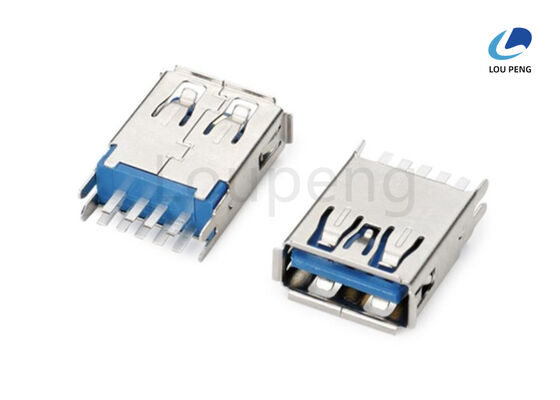

PBT LCP30G F UL94V0 Insulator Material External Device Connection Port Overall Insertion Force 3.57kgf MAX Durable Connector Solution

Product Description:

The Universal USB Interface Connector is designed to meet the highest standards of durability, performance, and reliability, making it an ideal choice for a wide range of electronic devices. This Standard USB Plug Connector is engineered with precision to ensure seamless connectivity and robust mechanical strength, suitable for both consumer electronics and industrial applications.

One of the standout features of this High Speed USB Connector is its exceptional ingress protection rating of IP68. This means the connector is completely dust-tight and can withstand continuous immersion in water under specified conditions, ensuring long-lasting operation even in harsh environments. The IP68 rating guarantees that your connections remain secure and reliable, regardless of exposure to dust, moisture, or water.

The connector's mechanical performance is equally impressive. It boasts a connector extraction force ranging from 8 to 20 Newtons at a maximum rate of 12.5mm per minute, providing a secure yet manageable connection and disconnection experience. This range of extraction force ensures that the connector stays firmly in place during use, preventing accidental disconnections while still allowing for easy removal when necessary.

In terms of insertion, the overall insertion force is capped at a maximum of 3.57 kilograms-force (kgf). This ensures that the connector can be inserted smoothly without requiring excessive effort, maintaining user convenience while preserving the integrity of the connector and port. The balanced insertion force contributes to the longevity of the USB interface by reducing wear and tear over repeated use.

The manufacturing process for this USB connector is optimized for reliability and precision. It is recommended to use IR Reflow soldering at 260°C for 3 to 5 seconds during assembly. This process ensures strong and stable solder joints, enhancing the electrical performance and mechanical stability of the connector. Proper reflow soldering is critical for maintaining the integrity of high-speed data transmission and power delivery through the connector.

Additionally, the connector features a plating thickness of 1 micrometer (1 U), which provides excellent corrosion resistance and enhances the overall durability of the USB interface. This plating helps maintain optimal electrical conductivity and reduces the risk of oxidation or degradation over time, especially in challenging environmental conditions.

As a High Speed USB Connector, this product supports fast data transfer rates, making it suitable for modern devices that require rapid and reliable communication. Whether you are integrating this connector into smartphones, tablets, laptops, or other digital equipment, it ensures that your device can handle high-speed data transmission with minimal signal loss or interference.

Overall, the Universal USB Interface Connector combines advanced protection, robust mechanical characteristics, and high-speed capability in a compact and reliable form factor. Its IP68 rating, controlled extraction and insertion forces, optimized soldering process, and protective plating make it an excellent choice for manufacturers and end-users seeking a dependable Standard USB Plug Connector that can perform under diverse and demanding conditions.

Choosing this High Speed USB Connector means investing in a product that not only meets industry standards but also exceeds expectations in terms of durability and performance. It is a versatile and high-quality solution that supports a wide array of applications, ensuring your devices stay connected and operate efficiently in any environment.

Features:

• Product Name: USB Connector
• Contact Current Rating: 3.0A for VBUS pin and its corresponding GND pin; 0.25A minimum for all other contacts
• Shell Material: Copper Alloy and Steel
• Insulation Impedance: 100MΩ minimum at 250V DC
• Insulator Material: PBT / LCP with 30% Glass Fiber, UL94V-0 rated
• Connector Compliance: RoHS Compliant and Halogen Free Compliant
• Functionality: USB Data Transfer Connector, USB Power and Data Connector, USB Communication Port Connector

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U040, is a high-quality male and female USB connector designed and manufactured in China, certified under ISO-9001:2000 standards. This product is ideal for a wide range of application occasions and scenarios, especially where a compact USB connection interface is required to ensure reliable and efficient connectivity. Its compact design makes it perfect for integration into modern electronic devices that demand space-saving yet robust connection solutions.

This USB data transfer connector supports data transfer speeds of up to 10 Gbps (USB 3.1), making it highly suitable for applications involving high-speed data transmission between devices. Whether used in laptops, desktops, external hard drives, or other peripherals, the LP-U040 ensures seamless and fast data exchange, enhancing overall user experience. Its current rating, ranging from 1.5A to 5A, guarantees stable power delivery for connected devices, enabling efficient charging and operation of USB-powered gadgets.

The LP-U040 serves as an essential external device connection port in various consumer electronics, industrial equipment, and automotive applications where durable and reliable USB connections are vital. Due to its low contact impedance of 30mΩ MAX, it ensures minimal signal loss and interference, which is critical in maintaining data integrity during transmission. The connector is recommended to be processed via IR Reflow at 260°C for 3 to 5 seconds, ensuring optimal soldering quality and secure mounting on circuit boards.

With a supply ability of 100,000 pieces and a minimum order quantity of 1000 pieces, this USB connector is suitable for both small-scale and large-scale manufacturing needs. It is packaged thoughtfully in reels, tubes, or trays to facilitate efficient handling and assembly line integration. The delivery time ranges between 7 to 10 days, and multiple payment terms such as T/T, Western Union, and L/C are accepted, providing flexibility for buyers worldwide.

In summary, the LP-U040 USB connector is perfect for any scenario that demands a compact and reliable USB connection interface or an external device connection port capable of supporting high-speed data transfer and stable power delivery. Whether you are manufacturing consumer electronics, upgrading existing hardware, or developing new USB-enabled devices, this connector offers an excellent balance of performance, quality, and cost-efficiency with a competitive price of 0.01 per unit.

Customization:

LP brand USB Connector model LP-U040 is a high-quality USB Power and Data Connector designed and manufactured in China with ISO-9001:2000 certification. We offer customization services to meet your specific requirements, ensuring reliable performance with a contact resistance of 40 milliohms max for VBUS and GND contacts and 50 milliohms max for other contacts.

This USB Data Transfer Connector features a durable shell made of copper alloy and steel, providing excellent insulation resistance of 100 megohms minimum, and a strong overall pull-out force of 1.02kgf minimum. The contacts are selectively plated to enhance connectivity and longevity.

We support various packaging options including reel, tube, and tray to suit your logistics needs. The minimum order quantity is 1000PCS, with a competitive price of $0.01 per unit and a supply ability of 100,000PCS. Delivery time typically ranges from 7 to 10 days.

Flexible payment terms are available, including T/T, Western Union, and L/C. As a trusted USB Communication Port Connector supplier, LP ensures quality and timely delivery to support your business requirements.
