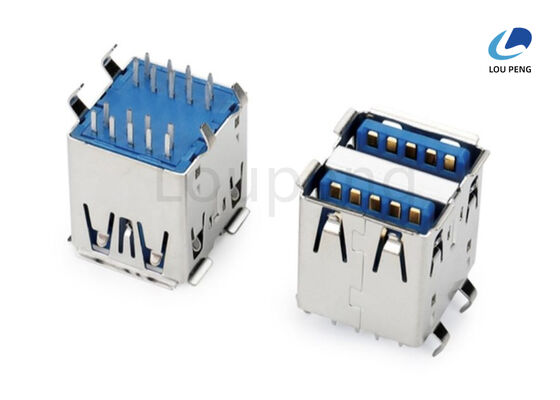

Au Plated USB Connector Featuring USB 2.0 USB 3.0 USB 3.1 Micro USB MINI USB Operating Temperature Minus 55 Celsius to 85 Celsius

Product Description:

The USB Connector is a high-performance, reliable solution designed to provide a compact USB connection interface for a wide range of electronic devices. Engineered to meet the demands of modern technology, this connector supports multiple USB standards including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB, making it an incredibly versatile choice for various applications. Whether you are designing a new device or upgrading an existing system, this USB connector ensures seamless and efficient connectivity with USB peripheral connection interfaces.

One of the standout features of this USB connector is its superior contact plating. The contacts are gold (Au) plated with options of 1 microinch (1U), 15 microinch (15U), or 30 microinch (30U), which significantly enhances corrosion resistance and ensures stable electrical performance over time. This gold plating not only improves durability but also helps maintain consistent signal integrity, essential for high-speed data transmission. With such robust contact plating, the connector is well-suited for environments where reliability and longevity are crucial.

The USB connector supports data transfer speeds of up to 10 Gbps, aligning with the USB 3.1 standard. This high-speed data transfer capability is essential for modern external device connection ports, enabling fast and efficient communication between computers, peripherals, and other external devices. Whether transferring large files, streaming high-definition video, or syncing devices, this connector offers the performance needed to keep up with today's demanding data requirements.

Designed with user experience and device protection in mind, this USB connector has an overall insertion force of a maximum of 3.57 kgf. This means it provides a firm and secure connection while ensuring that the physical effort required to plug and unplug the device remains comfortable and manageable. Such a balance is critical in preventing damage to both the connector and the port it mates with, thereby extending the lifespan of the device.

Safety and electrical reliability are also top priorities for this USB connector. It features a dielectric withstanding voltage rating of at least 100 VRMS AC, which ensures that the connector can safely withstand voltage surges and prevent electrical breakdown under normal operating conditions. This rating guarantees that the connector maintains insulation integrity and protects connected devices from potential electrical hazards.

Overall, this USB connector stands out as an excellent choice for anyone needing a compact USB connection interface that supports a broad range of USB types and high data transfer speeds. It is ideal for use as a USB peripheral connection interface in laptops, desktops, multimedia devices, and other electronic equipment requiring a dependable external device connection port. The combination of gold-plated contacts, robust mechanical design, high-speed data transfer capability, and electrical safety features makes this USB connector a versatile and reliable component in the world of digital connectivity.

In summary, the USB connector offers a perfect blend of durability, performance, and compatibility. Its compact size and multiple USB type support make it suitable for various applications, while its high data transfer speed of up to 10 Gbps ensures excellent performance for demanding data communication tasks. The gold-plated contact options provide enhanced longevity and signal quality, and the connector's physical and electrical specifications ensure safe, stable, and user-friendly operation. This product truly represents the ideal external device connection port and USB peripheral connection interface for today’s fast-evolving technological landscape.

Features:

• Product Name: USB Connector
• Compact USB Connection Interface for versatile usage
• Standard USB Plug Connector compatible with multiple USB types
• Supports USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB standards
• Connector insertion force: 5~20N at a maximum rate of 12.5mm per minute
• Contact resistance: 40 milliohms max for VBUS and GND contacts; 50 milliohms max for other contacts
• Overall insertion force: 3.57 kgf max
• Dielectric withstanding voltage: 100 VRMS AC minimum
• Reliable USB Communication Port Connector ensuring stable data transmission

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U039, is a high-quality Universal USB Interface Connector designed and manufactured in China. Certified with ISO-9001:2000, this product ensures reliable performance and consistency, making it an ideal choice for various electronic applications. With a minimum order quantity of 1000PCS and a competitive price of 0.01 per unit, the LP-U039 caters to both small and large-scale production needs. Its packaging options include Reel, Tube, and Tray, providing flexibility for different manufacturing and assembly processes.

This Universal Serial Bus Connector is widely used in numerous scenarios where efficient and secure data transfer is essential. Its robust design features a nickel-plated shell for excellent corrosion resistance and durability, while the insulator material is made from PBT / LCP+30% glass fiber, complying with UL94V-0 standards for flame retardancy. The connector supports a dielectric withstanding voltage of AC 100V, ensuring safety and stability in various electrical environments. With a connector extraction force ranging between 8 to 20N at a maximum rate of 12.5mm per minute, it guarantees secure and reliable connections that withstand repeated plugging and unplugging.

The LP-U039 USB Data Transfer Connector is perfect for use in consumer electronics, computer peripherals, communication devices, and industrial equipment. Its universal compatibility allows seamless integration with a wide range of devices, facilitating efficient data transmission and power supply. This connector is especially beneficial in scenarios such as computer assembly lines, USB cable manufacturing, and electronic device repairs where dependable connections are critical for optimal performance.

With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, the LP-U039 ensures timely fulfillment of orders, making it a reliable partner for manufacturers and distributors. Payment terms include T/T, Western Union, and L/C, providing convenient and secure transaction options. Whether you are producing USB cables, building data transfer hubs, or designing new electronic gadgets, the LP Universal USB Interface Connector offers superior quality and performance in every application.

In summary, the LP-U039 Male Female USB Connector is a versatile and durable Universal Serial Bus Connector designed to meet the rigorous demands of modern electronic devices. Its combination of excellent material quality, precise engineering, and certification-backed reliability makes it an indispensable component in various application occasions and scenarios where seamless USB connectivity is required.

Customization:

Introducing the LP brand USB Connector, model number LP-U039, a high-quality and reliable solution originating from China. Certified with ISO-9001:2000, this product ensures excellent standards in manufacturing and performance. Designed as a High Speed USB Connector, it supports various types including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB, making it a versatile choice for multiple applications.

The USB Communication Port Connector features a connecting mode of plug/unplug with solder assembly, providing secure and stable connections. It is RoHS Compliant and Halogen Free Compliant, ensuring environmental safety and compatibility. With a dielectric withstanding voltage of AC 100V, the connector guarantees durability and reliable electrical insulation.

Available in packaging options such as Reel, Tube, or Tray, the Universal Serial Bus Connector can be ordered with a minimum quantity of 1000PCS. The supply ability reaches up to 100,000PCS, with a competitive price of 0.01 per unit. Delivery time is efficient, ranging from 7 to 10 days, and payment terms include T/T, Western Union, and L/C for customer convenience.

Choose the LP-U039 USB Connector for your high-speed data transfer and communication needs, backed by quality certification and comprehensive customization services tailored to your business requirements.

Support and Services:

For technical support and services related to the USB Connector product, please refer to the user manual and installation guide included with your purchase. Our support team is dedicated to assisting you with any issues regarding compatibility, installation, or functionality.

We offer comprehensive troubleshooting assistance, firmware updates, and replacement parts to ensure your USB Connector operates optimally. Additionally, our online resources provide FAQs, instructional videos, and downloadable documentation to help you get the most out of your product.

If you experience any problems or require further assistance, please visit our official website for detailed support options and service requests. We are committed to providing prompt and effective solutions to meet your needs.

Packing and Shipping:

Each USB Connector is carefully packaged in a durable, anti-static blister pack to prevent damage during transit. The packaging includes a clear window for easy identification and a secure backing card with product information and specifications.

For shipping, the USB Connectors are boxed in sturdy corrugated cartons with protective padding to ensure they arrive in perfect condition. Multiple units are securely packed to minimize movement and prevent any impact damage during handling and transportation.

All shipments are labeled with handling instructions and tracking information to provide a smooth and reliable delivery experience.
