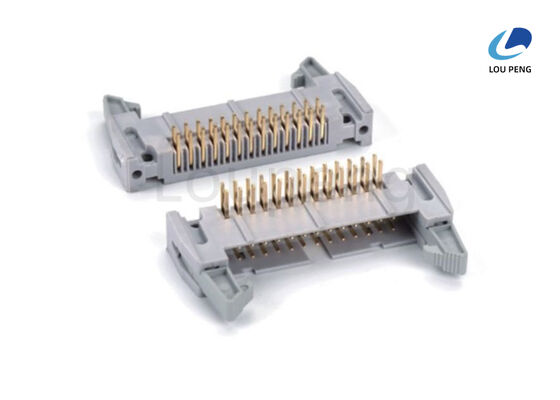

Pitch 1.0mm IDC Cable Socket Connector Designed with Dielectric Withstanding AC 500V Ensuring Stable Signal Transmission

Product Description:

The IDC Socket / BOX Header is a high-performance connector designed to meet the demanding requirements of modern electronic applications. Known for its reliability and precision, this product is an essential component for establishing secure and efficient connections in various electronic devices and systems. The IDC Socket / BOX Header is engineered with advanced features to ensure optimal performance, making it an ideal choice for both industrial and consumer electronics.

One of the standout features of this IDC Socket / BOX Header is its excellent dielectric withstanding capability. It can withstand an AC voltage of up to 500V, ensuring robust insulation and reliable operation even under high-voltage conditions. This characteristic is crucial for maintaining signal integrity and preventing electrical failures, especially in environments where electrical noise and interference are prevalent.

The product offers a range of pitch options, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. This variety allows for versatile application across different PCB layouts and design requirements. Whether you need a compact connector for high-density circuit boards or a standard pitch for general use, the IDC Socket / BOX Header provides the flexibility to accommodate diverse design needs without compromising performance.

Constructed from high-temperature thermoplastic insulator material, the IDC Socket / BOX Header ensures durability and resilience under harsh operating conditions. The high-temperature thermoplastic not only provides excellent mechanical strength but also resists thermal deformation and chemical exposure, extending the lifespan of the connector. This makes it suitable for applications where heat resistance and reliability are critical, such as automotive electronics, industrial machinery, and telecommunications equipment.

Another critical attribute of this connector is its low contact resistance, rated at a maximum of 20 milliohms. Low contact resistance is essential for minimizing power loss and ensuring efficient electrical conductivity. This feature enhances the overall performance of the connection, delivering stable and consistent signal transmission. It also contributes to energy savings and reduces the risk of overheating, which can be detrimental to sensitive electronic components.

The IDC Socket / BOX Header is specifically designed to work seamlessly with Insulation Displacement Crimp Sockets, providing a dependable and easy-to-use connection method. The Insulation Displacement Crimp Socket technology eliminates the need for stripping wires before termination, simplifying the assembly process and improving production efficiency. This makes the IDC Ribbon Cable Socket an excellent choice for high-volume manufacturing environments where speed and accuracy are paramount.

Moreover, the IDC Ribbon Cable Socket design allows for quick and reliable connections to flat ribbon cables, which are commonly used in computer and communication equipment. The IDC Ribbon Cable Socket ensures a firm grip on the cable conductors, preventing accidental disconnections and maintaining signal integrity under mechanical stress. This makes it an ideal connector for applications requiring frequent assembly and disassembly or where vibration and movement are concerns.

In summary, the IDC Socket / BOX Header combines advanced materials, versatile pitch options, and robust electrical performance to deliver a superior connection solution. Its compatibility with Insulation Displacement Crimp Sockets and IDC Ribbon Cable Sockets makes it a versatile and reliable choice for a wide range of electronic applications. Whether used in consumer electronics, industrial systems, or telecommunications, this product stands out for its durability, ease of use, and electrical excellence.

Choosing the IDC Socket / BOX Header ensures that your electronic assemblies benefit from high dielectric strength, low contact resistance, and excellent thermal stability. It is a connector designed to meet the rigorous demands of modern technology, providing peace of mind and long-term reliability for your electronic projects and products.

Features:

• Product Name: IDC Socket / BOX Header
• Color: Black (standard)
• Dielectric Withstanding Voltage: AC 500V
• Insulator Material: PA6T UL 94V-0 Black
• Mounting Type: Through Hole / Surface Mount
• Type: IDC Socket Header Connector and IDC Box Header Connector
• Feature: Insulation Displacement Crimp Socket for reliable connections

Technical Parameters:

Applications:

The LP-BX029 IDC Socket / BOX Header, manufactured by the reputable LP brand in China, is an essential component widely used in various electronic and electrical applications. Certified under ISO-9001:2000 and compliant with RoHS and UL Recognized standards, this IDC Socket Header Connector ensures high quality and reliability. With a dielectric withstanding voltage of AC 500V and a voltage rating of 250V AC/DC, it is suitable for environments requiring robust electrical insulation and safety. The product is available in multiple types including Vertical, Right Angle, SMT, and Double Row, all in a standard black color, allowing it to fit diverse circuit board configurations and design requirements.

The IDC Connector Socket Header is commonly applied in telecommunications, computer hardware, consumer electronics, and industrial automation systems. Its ability to provide secure and reliable connections makes it ideal for use in data communication equipment, control panels, and embedded systems. The LP-BX029 model is especially favored in scenarios where high-density connections are needed, such as in server racks, networking devices, and interface modules. Thanks to its packaging options including Reel, Tube, Tray, and Polybag, the IDC Socket Connector Assembly can be easily integrated into automated production lines, supporting efficient manufacturing processes.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-BX029 caters well to mass production needs. The supply ability of 100000PCS ensures steady availability for large-scale projects, while the delivery time of 7 to 10 days supports timely procurement schedules. Payment terms like T/T, Western Union, and L/C provide flexible financial options for customers worldwide. These features make the IDC Socket Header Connector not only a technically superior product but also a cost-effective and reliable choice for engineers and procurement managers.

In summary, the LP-BX029 IDC Connector Socket Header is ideal for application occasions and scenarios involving high-density electronic connections, demanding electrical safety and compliance with international standards. Its versatility in type and packaging, combined with efficient supply and delivery, makes it an indispensable component in modern electronics manufacturing, from prototype development to large-scale industrial deployments.

Customization:

Brand Name: LP

Model Number: LP-BX029

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.0001

Packaging Details: Reel / Tube / Tray / Polybag

Delivery Time: 7~10 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100000PCS

Insulator: PA6T UL 94V-0 Black

Insulation Resistance: 1000M Ohms Min

Contact Plating: Gold Or Tin Plated

Compliance Standards: RoHS, UL Recognized

Contact Material: Phosphor Bronze

Our LP-BX029 model IDC Socket Connector Assembly is designed to meet high-quality standards with reliable performance, featuring a robust PA6T UL 94V-0 black insulator and phosphor bronze contacts with gold or tin plating for excellent conductivity and durability.

This IDC Box Header Connector is compliant with RoHS and UL certifications, ensuring safety and environmental standards are met for various industrial applications.

We offer flexible packaging options including reel, tube, tray, or polybag to suit your specific needs, with a supply ability of up to 100000PCS and a minimum order quantity of 1000PCS.

Delivery time is efficient at 7 to 10 days, with payment terms available via T/T, Western Union, or L/C.

The IDC Socket Header Connector is engineered to provide a minimum insulation resistance of 1000M Ohms, ensuring reliable insulation and performance in your electronic assemblies.
