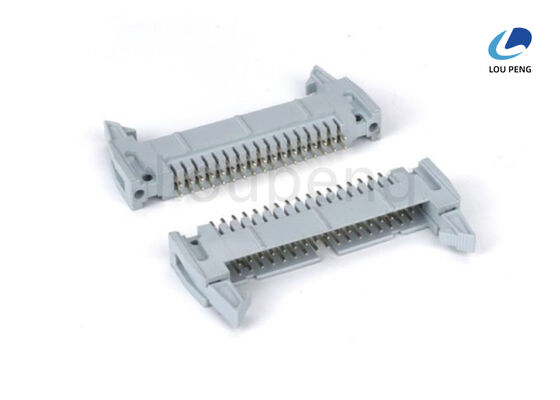

Number of positions 2 To 40 Insulation Displacement Contact Socket Providing Operating temperaturerange -65°C To 125°C Contact

Product Description:

The IDC Socket / BOX Header product is a highly reliable and versatile connector solution designed to meet the demanding requirements of modern electronic applications. Engineered with precision and durability in mind, this connector is ideal for a wide range of industrial, automotive, telecommunications, and consumer electronics uses. The product is commonly referred to as a Box Header IDC Connector, Insulation Displacement Crimp Socket, or IDC Box Header Connector, highlighting its key features and functions.

One of the standout characteristics of this IDC Socket / BOX Header is its impressive operating temperature range, which spans from -65°C to +125°C. This broad thermal tolerance ensures that the connector performs consistently under extreme environmental conditions, making it suitable for use in harsh and challenging settings. Whether exposed to freezing cold or elevated heat, the connector maintains reliable electrical connections and mechanical stability.

The mounting type options for this product include both Through Hole and Surface Mount configurations. Through Hole mounting provides a robust and mechanically strong connection to printed circuit boards (PCBs), ideal for applications subjected to mechanical stress or vibration. Surface Mount technology (SMT), on the other hand, allows for efficient and compact PCB assembly, supporting high-density designs and automated manufacturing processes. This flexibility in mounting types allows designers and engineers to select the optimal assembly method based on their specific application requirements.

The electrical contacts within the IDC Socket / BOX Header are available with either gold or tin plating. Gold plating offers excellent corrosion resistance, superior conductivity, and long-term durability, making it a preferred choice in high-reliability and high-performance applications. Tin plating provides an economical alternative with good solderability and adequate protection against oxidation, suitable for general-purpose uses. Both plating options ensure that the connector maintains low contact resistance and high signal integrity over its service life.

In terms of electrical safety and performance, the connector boasts a dielectric withstanding voltage of AC 500V. This specification indicates the connector’s ability to resist electrical breakdown and maintain insulation integrity under high voltage stress. It ensures safe operation and protects sensitive electronic components from potential damage caused by voltage spikes or electrical surges.

The termination method employed in this IDC Socket / BOX Header is the Insulation Displacement Contact (IDC) technique, which is a key feature defining its ease of use and reliability. IDC termination allows for quick and secure connections by piercing the insulation of the wire and establishing contact without the need for stripping or soldering. This method not only simplifies the assembly process but also enhances connection consistency and reduces the risk of wiring errors. The Insulation Displacement Crimp Socket design further ensures a firm and stable electrical connection, contributing to the overall robustness of the system.

Overall, the IDC Socket / BOX Header product combines rugged construction, versatile mounting options, superior contact plating choices, and excellent electrical performance to deliver a dependable connector solution. Whether referred to as a Box Header IDC Connector, Insulation Displacement Crimp Socket, or IDC Box Header Connector, this component is engineered to provide secure, efficient, and long-lasting connections in a variety of electronic devices and systems.

Its ability to operate across a wide temperature range, coupled with a strong dielectric rating and innovative IDC termination method, makes it a go-to choice for engineers and designers looking to optimize their electronic interconnections. This product stands out as a reliable and efficient connector that meets the stringent demands of modern electronics manufacturing and application environments.

Features:

• Product Name: IDC Socket / BOX Header
• Current Rating: 1.0 Amp
• Contact Plating: Gold or Tin Plated
• Mounting Type: Through Hole / Surface Mount
• Insulator Material: High Temperature Thermoplastic
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Includes IDC Socket Connector Assembly for reliable connections
• Features IDC Box Header Connector for versatile applications
• Designed as an Insulation Displacement Contact Socket for efficient wire termination

Technical Parameters:

Applications:

The LP-BX029 IDC Socket / BOX Header, manufactured by the reputable brand LP in China, is an essential component widely used in various electronic applications. Certified under ISO-9001:2000, this product guarantees high-quality standards and reliability. The IDC Socket Connector Assembly is designed to provide secure and efficient connections between cables and printed circuit boards, making it ideal for complex electronic setups that demand precision and durability.

This IDC Socket Header Connector is highly versatile, available in several mounting types including Through Hole and Surface Mount, as well as multiple configurations such as Vertical, Right Angle, SMT, and Double Row. This flexibility allows it to be used in a broad range of scenarios, from industrial automation equipment to consumer electronics. The black PA6T UL 94V-0 insulator ensures excellent heat resistance and electrical insulation, making the connector suitable for environments where safety and performance are critical.

In applications requiring reliable cable connections, the IDC Cable Socket Connector is often used for flat ribbon cables, enabling quick and secure wire-to-board interfaces. Typical occasions for its use include telecommunications, data communication systems, computer hardware, and control systems in automotive electronics. Its contact plating options of Gold or Tin ensure superior conductivity and corrosion resistance, thereby extending the product's lifespan in demanding environments.

With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, the LP-BX029 IDC Socket / BOX Header is available at a competitive price of 0.0001 per unit. Packaging options such as Reel, Tube, Tray, and Polybag provide flexibility for various volume requirements and handling preferences. The product’s delivery time ranges from 7 to 10 days, and payment terms include T/T, Western Union, and L/C, facilitating smooth procurement processes for manufacturers and distributors worldwide.

Overall, the LP-BX029 IDC Socket Connector Assembly is perfectly suited for engineers and designers seeking reliable, durable, and versatile connectors for their electronic devices and systems. Whether in prototyping or large-scale production, this IDC Socket Header Connector ensures exceptional performance and ease of integration in numerous application occasions and scenarios.

Customization:

Brand Name: LP

Model Number: LP-BX029

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.0001 per unit

Packaging Details: Reel, Tube, Tray, Polybag

Delivery Time: 7 to 10 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100000PCS

Insulator Material: PA6T UL 94V-0 Black

Operating Temperature Range: -65°C to +125°C

Compliance Standards: RoHS, UL Recognized

Termination Method: Insulation Displacement Contact (IDC)

Number of Positions: 2 to 40

Our LP-BX029 IDC Socket / BOX Header product offers customization services tailored to your requirements. This high-quality IDC Ribbon Cable Socket, also known as an Insulation Displacement Connector Socket or IDC Box Header Connector, ensures reliable electrical connections with efficient insulation displacement contact technology.

Whether you need specific packaging such as reel, tube, tray, or polybag, or require a particular number of positions ranging from 2 to 40, we can accommodate your needs. The product's robust PA6T UL 94V-0 black insulator withstands harsh environments with an operating temperature range from -65°C to +125°C, ensuring durability and safety.

Certified under ISO-9001:2000 and compliant with RoHS and UL Recognized standards, our IDC Box Header Connector guarantees quality and environmental compliance. With a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, we provide competitive pricing and prompt delivery within 7 to 10 days.

Payment options include T/T, Western Union, and L/C to facilitate smooth transactions. Customize your IDC Ribbon Cable Socket or Insulation Displacement Connector Socket today to meet your specific application needs with the trusted LP brand.

Support and Services:

Our IDC Socket / BOX Header products are designed to provide reliable and efficient electrical connections for a wide range of applications. These connectors ensure secure and stable mating with compatible components, offering excellent performance in various environmental conditions.

For optimal use, ensure that the cable and header are properly aligned before insertion to avoid any damage to the contacts. It is recommended to use appropriate crimping tools for cable preparation to maintain the integrity of the connection.

If you encounter any issues with the IDC Socket / BOX Header, please verify the compatibility of the connector with your system and inspect for any physical damage or contamination. Cleaning the contacts with suitable solvents can improve connectivity.

Our technical support team is available to assist with product selection, installation guidance, and troubleshooting to ensure maximum performance and longevity of your connectors.

For additional resources such as datasheets, application notes, and user manuals, please refer to our official website or product documentation.

Packing and Shipping:

Our IDC Socket / BOX Header products are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in anti-static bags to prevent electrostatic discharge damage. These are then packed in sturdy, corrugated cardboard boxes with adequate cushioning materials to absorb shocks and prevent movement.

For bulk orders, products are organized systematically within larger cartons, labeled clearly with product information and handling instructions. We use reliable shipping partners to guarantee timely and safe delivery worldwide. Tracking information will be provided upon shipment to keep you informed of your order status.

We recommend inspecting the packaging upon receipt and reporting any damage immediately to facilitate prompt resolution. Our packaging standards are designed to maintain product integrity from our facility to your doorstep.
