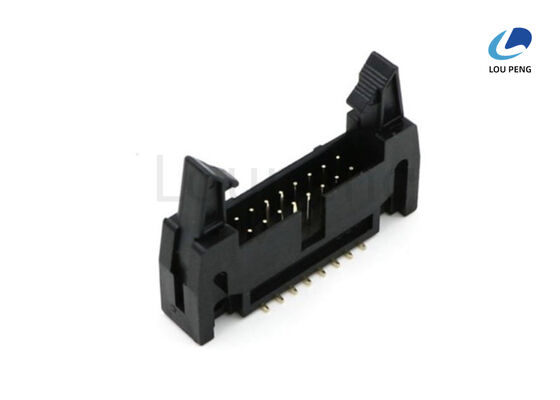

Insulation Resistance 1000M Ohms Min IDC Box Header Connector Featuring Gold or Tin Plated Contact Suitable for Data Transmission

Product Description:

The IDC Socket / BOX Header product is a versatile and reliable solution designed for various electronic applications requiring secure and efficient connections. This product line features IDC Socket Connector Assembly and Box Header IDC Connector options that cater to different design needs and ensure optimal performance in both industrial and consumer electronics.

One of the key attributes of the IDC Socket / BOX Header product is its availability in multiple pitch sizes, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. This wide range of pitch options allows designers to select the most suitable connector spacing to match their PCB layouts and space constraints, providing flexibility and adaptability in circuit design. Whether the application demands compact connections with smaller pitches or more robust setups with larger pitches, this product series meets those requirements effectively.

The product supports a number of positions ranging from 2 to 40, making it highly scalable for different circuit complexities. This range ensures that the IDC Socket Connector Assembly and Box Header IDC Connector can be customized to suit both simple and complex wiring needs. With the ability to accommodate multiple signal lines within a single connector, the product enhances wiring organization and reduces the risk of connection errors.

In terms of configuration, the IDC Socket / BOX Header product is available in various types, including Vertical, Right Angle, SMT (Surface Mount Technology), and Double Row. The Vertical and Right Angle types allow for versatile mounting options on PCBs, facilitating optimal mechanical and electrical connections depending on the board layout and assembly process. The SMT type ensures compatibility with modern surface mount assembly lines, providing ease of integration in automated manufacturing environments. Double Row configurations further increase the number of connection points within a compact footprint, ideal for applications requiring dense interconnections.

Reliability and electrical performance are paramount in the design of this IDC Socket / BOX Header product. It boasts a high insulation resistance of 1000M Ohms minimum, which guarantees excellent electrical isolation between contacts and prevents leakage currents that could compromise signal integrity. This high insulation resistance supports stable and noise-free signal transmission, essential for sensitive electronic applications.

Moreover, the product is rated for dielectric withstanding voltage of AC 500V, ensuring robust insulation under high voltage conditions. This characteristic offers additional safety and durability, protecting connected components from electrical surges and potential damage. The high dielectric withstanding capability also underscores the product’s suitability for use in demanding environments where electrical stress is a concern.

The IDC Socket Connector Assembly and Box Header IDC Connector are engineered for easy and secure cable termination. The Insulation Displacement Contact (IDC) technology allows quick connection of flat ribbon cables without the need for stripping insulation, thus reducing assembly time and minimizing the risk of wiring errors. This feature is particularly advantageous in mass production settings where efficiency and accuracy are critical.

Overall, the IDC Socket / BOX Header product provides a comprehensive solution for reliable, high-performance electrical connections. Its diverse pitch options, wide range of positions, multiple mounting types, and strong electrical characteristics make it an ideal choice for a broad spectrum of applications including telecommunications, consumer electronics, industrial equipment, and automotive electronics. By choosing this product, engineers and designers benefit from a proven connector system that delivers durability, ease of use, and excellent electrical performance.

Features:

• Product Name: IDC Socket / BOX Header
• Type: Vertical, Right Angle, SMT, Double Row
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Insulation Resistance: 1000M Ohms Min
• Contact Material: Phosphor Bronze for excellent conductivity and durability
• Color: Black (standard)
• Features Insulation Displacement Connector Socket technology for reliable connections
• Includes Insulation Displacement Crimp Socket design for efficient cable termination
• Compatible as an IDC Cable Socket Connector for various wiring applications

Technical Parameters:

Applications:

The LP IDC Socket / BOX Header, model number LP-BX029, is a highly reliable and versatile connector designed for various electronic and industrial applications. Manufactured in China and certified under ISO-9001:2000, this product ensures superior quality and performance. Featuring insulation displacement contact (IDC) termination method, the IDC Box Header Connector enables quick and secure wire connections without the need for stripping, making it ideal for efficient assembly processes.

This IDC Connector Socket Header is available with a number of positions ranging from 2 to 40, accommodating diverse wiring requirements in different systems. The contact material is made of phosphor bronze, which offers excellent conductivity and corrosion resistance. Its insulator is constructed from high-temperature thermoplastic, providing durability and stability even in demanding environmental conditions.

The LP IDC Box Header Connector is widely used in telecommunications, computer hardware, industrial control systems, automotive electronics, and consumer electronics. It is especially suitable for scenarios requiring fast and reliable connections such as circuit board wiring, cable assemblies, and panel connections. The product’s design supports various packaging options including reel, tube, tray, and polybag, enabling efficient handling during manufacturing and installation.

With a supply ability of 100,000 pieces and a minimum order quantity of 1,000 PCS, this connector is well-suited for mass production applications. The competitive price of 0.0001 per unit combined with flexible payment terms such as T/T, Western Union, and L/C makes it an economically viable choice for large-scale projects. Delivery time is typically between 7 to 10 days, ensuring timely supply to meet urgent production schedules.

In summary, the LP IDC Socket / BOX Header (LP-BX029) delivers reliable performance, ease of installation, and adaptability across multiple industries. Its robust materials and certified manufacturing process make it a dependable component in any electronic connector assembly. Whether you require a 2-position or a 40-position IDC Box Header Connector, this product offers an efficient and cost-effective solution for your connectivity needs.

Customization:

Introducing the LP-BX029 IDC Ribbon Cable Socket, a high-quality Box Header IDC Connector manufactured by LP in China. Certified with ISO-9001:2000, this product ensures reliable performance and durability for your electronic applications.

The LP-BX029 IDC Ribbon Cable Socket features a variety of pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, accommodating diverse design requirements. It supports a voltage rating of 250V AC/DC and offers excellent dielectric withstanding at AC 500V for enhanced safety and stability.

Available with gold or tin plating for optimal contact performance, this Box Header IDC Connector supports both through hole and surface mount mounting types, providing flexibility in PCB assembly. The product is supplied with packaging options such as reel, tube, tray, or polybag to suit different handling and storage needs.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-BX029 IDC Ribbon Cable Socket is an economical choice without compromising quality. Our supply ability reaches up to 100,000PCS, ensuring timely delivery within 7 to 10 days.

Payment terms include T/T, Western Union, and L/C, offering convenience and security for your transactions. Choose the LP-BX029 Box Header IDC Connector for your next project and experience exceptional product customization services tailored to your requirements.

Support and Services:

For technical support and service inquiries related to IDC Socket and BOX Header products, please ensure you have the product part number and detailed description of your application ready. Our support team is equipped to assist with installation guidance, troubleshooting, and compatibility questions to help you achieve optimal performance.

We recommend reviewing the product datasheet and application notes available on our website for detailed specifications and recommended usage practices. If you encounter any issues or require custom solutions, our technical experts are available to provide personalized assistance.

Warranty and repair services are offered in accordance with our standard terms and conditions. Please have your purchase information available for any warranty claims or service requests.

For additional resources, including firmware updates and software tools compatible with IDC Socket and BOX Header products, please refer to the downloads section on our support page.

Packing and Shipping:

Our IDC Socket / BOX Header products are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in anti-static bags to prevent any electrostatic discharge damage. The products are then packed in sturdy boxes with cushioning materials to absorb shocks and vibrations, ensuring they arrive in perfect condition.

For shipping, we offer multiple options including standard, expedited, and overnight delivery through reliable carriers. All shipments are tracked and insured for your peace of mind. Bulk orders are palletized and shrink-wrapped to maintain stability and safety throughout the shipping process.

We prioritize prompt handling and dispatch to meet your project timelines. Packaging and shipping comply with industry standards to guarantee the integrity and functionality of the IDC Socket / BOX Header upon delivery.
