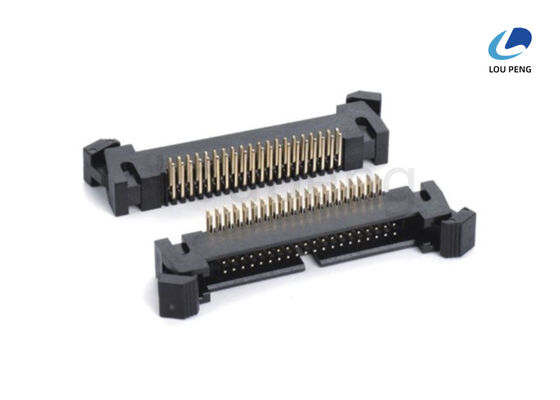

Operating temperature range 65°C to 125°C Black standard IDC Socket BOX Header in pitch sizes 08mm 10mm 127mm 20mm 254mm for versatile applications

Product Description:

The IDC Socket / BOX Header is a highly reliable and efficient connector designed to meet the demanding requirements of modern electronic applications. Specifically engineered with Insulation Displacement Contact (IDC) technology, this product offers a robust and secure connection solution that eliminates the need for traditional soldering methods. The use of Insulation Displacement Contact Socket and Insulation Displacement Crimp Socket mechanisms ensures quick and reliable wire termination, making it an ideal choice for various industrial, telecommunications, and consumer electronics applications.

One of the standout features of the IDC Box Header Connector is its impressive dielectric withstanding voltage of AC 500V. This high dielectric strength guarantees excellent insulation and protection against electrical breakdowns, ensuring safe and stable operation even in environments with high voltage stress. Such a high dielectric withstanding capability makes this connector suitable for applications where reliability and safety are paramount, providing peace of mind to engineers and end-users alike.

The IDC Socket / BOX Header is rated for a current of 1.0 Amp, which is sufficient for a wide range of low to moderate power electronic devices. This current rating ensures that the connector can efficiently handle the electrical load without overheating or degradation over time. The combination of a modest current rating and high dielectric strength makes this connector particularly well-suited for signal and control circuits where precision and reliability are critical.

Another remarkable attribute of this product is its versatility in terms of the number of positions available. With configurations ranging from 2 to 40 positions, the IDC Box Header Connector can accommodate a broad spectrum of wiring needs. Whether you require a simple two-position connector for basic applications or a larger 40-position connector for complex multi-wire systems, this product line offers a solution that fits perfectly. This wide range of options enhances design flexibility and simplifies inventory management for manufacturers and system integrators.

The contact material used in the IDC Socket / BOX Header is high-quality phosphor bronze. Phosphor bronze is renowned for its excellent electrical conductivity, mechanical strength, and corrosion resistance. These properties contribute to the long-term durability and consistent performance of the connector, even under harsh environmental conditions. The phosphor bronze contacts ensure minimal signal loss and stable electrical connections, which are critical for maintaining the integrity of electronic circuits.

The termination method employed in this product is the Insulation Displacement Contact (IDC) technique. This innovative method allows wires to be connected without stripping the insulation, as the contact blades penetrate the insulation and make direct contact with the conductor inside. This results in a fast, reliable, and reproducible termination process that reduces assembly time and labor costs. Additionally, the IDC termination provides a gas-tight connection that prevents oxidation and corrosion, enhancing the overall reliability of the connector.

In summary, the IDC Socket / BOX Header offers a combination of high dielectric withstanding voltage, adequate current rating, a broad range of position options, and superior contact materials, all integrated with the efficient Insulation Displacement Contact termination method. This makes it an excellent choice for applications demanding durability, safety, and ease of installation. Whether you are seeking an Insulation Displacement Contact Socket, an Insulation Displacement Crimp Socket, or an IDC Box Header Connector, this product line provides a dependable and versatile solution that meets the highest standards of quality and performance in the industry.

Features:

• Product Name: IDC Socket / BOX Header
• Type: Insulation Displacement Contact Socket
• Connector Type: IDC Ribbon Cable Socket and IDC Box Header Connector
• Mounting Type: Through Hole / Surface Mount
• Current Rating: 3A Per Contact
• Operating Temperature Range: -65°C To +125°C
• Insulator Material: PA6T UL 94V-0 Black
• Color: Black (standard)

Technical Parameters:

Applications:

The LP IDC Socket / BOX Header, model number LP-BX029, is a highly reliable IDC Cable Socket Connector designed and manufactured in China under stringent ISO-9001:2000 certification standards. This product is engineered to meet the demanding requirements of various electronic and electrical applications, providing excellent performance and durability. With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, it offers scalability for both small and large-scale production needs. The IDC Socket / BOX Header is available at an extremely competitive price of 0.0001 per unit, making it an economical choice for manufacturers.

This Insulation Displacement Contact Socket is constructed with a robust PA6T UL 94V-0 black insulator, ensuring high flame retardancy and mechanical strength. It is designed to operate efficiently within a wide temperature range of -65°C to +125°C, making it suitable for use in harsh environmental conditions. The dielectric withstanding voltage of AC 500V guarantees electrical safety and reliable insulation performance. Its standard black color provides a professional and uniform appearance, ideal for various industrial applications.

The IDC Socket / BOX Header is commonly used in scenarios that require quick and secure connections without the need for stripping wires, making it an excellent choice for mass termination processes. It is widely applied in telecommunications, automotive electronics, industrial machinery, and consumer electronics where high-quality Insulation Displacement Contact Socket connections are critical. The product’s packaging options include reel, tube, tray, and polybag, providing flexibility in handling and storage to meet different manufacturing line requirements.

With a delivery time of 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C, the LP-BX029 IDC Cable Socket Connector ensures timely and convenient procurement for businesses. Its reliable construction and certification-backed quality make it an ideal component for applications demanding high reliability and safety. Whether used in assembling control panels, wiring harnesses, or electronic devices, the Insulation Displacement Contact Socket offers a robust and efficient connection solution.

Customization:

Introducing the LP-BX029 IDC Socket / BOX Header from the trusted brand LP, manufactured in China with ISO-9001:2000 certification. Our IDC Socket Connector Assembly is designed to meet high standards of quality and reliability, complying with RoHS and UL Recognized standards.

This Insulation Displacement Connector Socket features a pitch range of 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, with an insulator made from PA6T UL 94V-0 Black, ensuring excellent durability and safety. The termination method uses Insulation Displacement Contact (IDC) technology for efficient and secure connections.

The IDC Box Header Connector is available in multiple types including Vertical, Right Angle, SMT, and Double Row configurations to fit diverse application needs. Packaging options include Reel, Tube, Tray, and Polybag to accommodate your specific requirements.

With a minimum order quantity of 1000PCS, a competitive price of 0.0001 per unit, and a supply ability of 100,000PCS, we ensure timely delivery within 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C methods.

Choose the LP-BX029 for your next project to benefit from a high-quality IDC Socket Connector Assembly that combines performance, compliance, and customization options tailored to your needs.

Support and Services:

Our IDC Socket / BOX Header products are designed to provide reliable and efficient connections in various electronic applications. For technical support, please ensure that you have the product model number and specifications handy to facilitate accurate assistance.

Installation Guidance: When installing IDC Sockets or BOX Headers, make sure to align the connector properly with the mating part to avoid damage to the pins or housing. Use the recommended cable type and follow the specified insertion force to ensure optimal connection performance.

Troubleshooting Tips: If you experience connectivity issues, check for bent or damaged pins, ensure the cable is properly seated, and verify that the mating connector is compatible. Inspect for any signs of wear or corrosion that might affect electrical contact.

Maintenance: Periodically inspect the connectors for mechanical integrity and cleanliness. Avoid exposure to harsh environments that exceed the product’s rated specifications to prolong service life.

Warranty and Repairs: Our IDC Socket / BOX Header products come with a limited warranty against manufacturing defects. For repair or replacement inquiries, please refer to the warranty terms provided at the time of purchase.

For detailed datasheets, installation manuals, and application notes, please visit our official website or product resource center.
