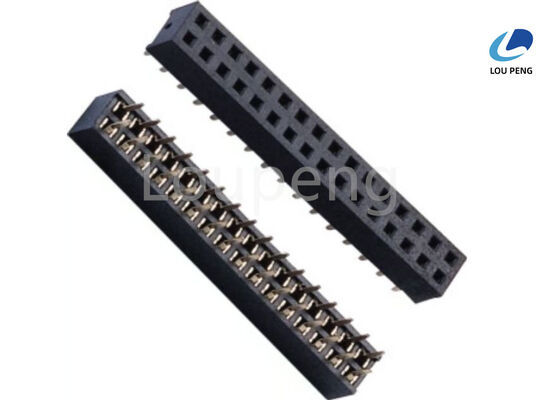

Phosphor Bronze Female Pin Header Connector Max Processing Temp 230 Degrees Celsius For 30 to 60 Seconds Durable Electrical Connector

Product Description:

The Female Header Connector is an essential component widely used in various electronic applications, offering reliable and efficient connectivity solutions. Known for its robust design and superior performance, this connector is specifically engineered to meet the demanding requirements of modern electronic devices. As a Female Connector Header Pin, it provides secure and stable connections, ensuring seamless communication between different parts of an electronic circuit.

One of the standout features of this Female Electrical Header Connector is its excellent insulation resistance. With a minimum insulation resistance of 1000MΩ, the connector ensures minimal leakage current, thereby enhancing the overall safety and reliability of the electrical system. This high insulation resistance makes it ideal for use in sensitive electronic equipment where maintaining signal integrity and preventing short circuits is crucial.

Designed to operate efficiently in a wide range of environmental conditions, the Female Socket Header Connector can withstand working temperatures ranging from -40 ℃ to +105 ℃. This impressive temperature tolerance allows it to perform reliably in both extremely cold and hot environments, making it suitable for use in automotive, industrial, and outdoor applications. The ability to maintain stable performance across such a broad temperature range ensures long-term durability and consistent functionality.

The connector’s contact resistance is another critical performance parameter, and this Female Header Connector excels in this regard with a maximum contact resistance of 30mΩ. Low contact resistance is vital for minimizing power loss and ensuring efficient electrical conductivity. It helps maintain signal quality and reduces the risk of overheating, thereby contributing to the overall efficiency and longevity of the electronic system.

Crafted from high-quality materials, the pins of this Female Electrical Header Connector are made from phosphor bronze or brass. Both materials are renowned for their excellent electrical conductivity, mechanical strength, and corrosion resistance. Phosphor bronze offers superior spring properties and durability, while brass provides good conductivity and cost-effectiveness. The choice of these materials ensures that the connector delivers consistent performance and maintains reliable connections even under frequent mating and unmating cycles.

The Female Socket Header Connector is designed with precision to fit seamlessly into various electronic assemblies. Its female design allows it to receive male pins securely, creating a stable and reliable connection interface. This characteristic makes it particularly useful in applications where connectors need to be easily plugged and unplugged without compromising connection quality.

Furthermore, the connector’s compact and versatile design makes it compatible with a wide range of circuit boards and electronic modules. It is commonly used in computer motherboards, communication devices, consumer electronics, and industrial machinery. Its adaptability and ease of use make it a preferred choice for engineers and designers looking to create efficient and maintainable electronic systems.

In summary, the Female Header Connector combines high insulation resistance, wide operating temperature range, low contact resistance, and durable pin materials to deliver outstanding performance. Whether referred to as a Female Connector Header Pin, Female Electrical Header Connector, or Female Socket Header Connector, this product is an indispensable component for ensuring reliable electrical connections in a variety of applications. Its robust construction and excellent electrical properties make it a trusted solution for enhancing the efficiency and longevity of electronic devices.

Features:

• Product Name: Female Header Connector
• Also known as Female Header Socket Connector, Female Socket Header Connector, and Female Wire Header Connector
• Contact Resistance: 30mΩ Max
• Insulator Material: Polyester (UL94V-0)
• Plastic Height Options: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, 8.5mm
• Plating Options: Gold or Tin
• Plastic Material: PA6T with 30% Glass Fiber

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH063, is a highly reliable and versatile Female Header Socket Connector designed and manufactured in China. Certified with ISO-9001:2000, this connector meets rigorous quality standards, ensuring excellent performance and durability in various electronic applications. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS, it is ideal for large-scale production needs. The product is competitively priced at 0.0001 per piece and packaged in multiple options including reel, tube, tray, and polybag for convenient handling and storage. Delivery is efficient, taking only 7 to 10 days, with flexible payment terms such as T/T and L/C.

The Female PCB Header Connector is constructed with a high-quality housing made of Polyester (UL94V-0), providing superior flame retardance and mechanical strength. The internal material consists of PA6T reinforced with 30% glass fiber, aligning with the PA6T standard for enhanced thermal and chemical resistance. This composition allows the connector to operate effectively in a wide temperature range from -40° to +105°C, making it suitable for use in diverse environmental conditions. Rated for a current load of 1.5 Amps, it supports moderate power transmission in compact electronic devices.

This Female Electrical Header Connector finds extensive applications in numerous occasions and scenarios. It is commonly used in printed circuit boards (PCBs) for consumer electronics, industrial machinery, automotive electronics, and communication equipment. Its reliable electrical performance and robust design make it an excellent choice for connecting various electronic modules such as sensors, controllers, and display units. The connector’s compact size and secure fit ensure stable connections in high-vibration environments, which is essential in automotive and industrial automation sectors.

Moreover, this Female Header Socket Connector is ideal for prototype development and mass production in electronics manufacturing. It serves as a crucial component in assembling circuit boards for household appliances, medical devices, and computing equipment. Engineers and designers prefer this connector for its ease of installation and maintenance, as well as its compliance with international standards. Whether used in factory automation systems, data communication devices, or portable gadgets, the LP-FH063 Female Header Connector delivers dependable connectivity and long service life.

In summary, the LP Female PCB Header Connector is a premium solution for diverse electrical and electronic applications where durability, safety, and performance are paramount. Its quality certification, robust material composition, and versatile packaging options make it a preferred choice for manufacturers aiming for excellence and efficiency in their products.

Customization:

Our Female Header Pin Connector, model LP-FH063, is a premium product from the renowned brand LP, manufactured in China with ISO-9001:2000 certification, ensuring top quality and reliability. Designed to meet diverse application needs, this Female PCB Header Connector features a durable polyester housing rated UL94V-0 for excellent flame resistance and operates efficiently within a wide temperature range of -40 ℃ to +105 ℃.

The Female Header Pin Connector offers versatile plastic heights options including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm, allowing customization to suit specific design requirements. Its contact materials are available in high-quality phosphor bronze or brass, providing reliable electrical conductivity and mechanical strength. The connector withstands a voltage of AC 500V, making it suitable for various electronic applications.

We offer flexible packaging solutions such as Reel, Tube, Tray, or Polybag to accommodate different handling and assembly processes. With a supply ability of 1,000,000 PCS and a minimum order quantity of 1000 PCS, we ensure prompt delivery within 7 to 10 days. Our competitive pricing starts at 0.0001 per unit, with payment terms including T/T and L/C for customer convenience.

Choose our Female Header Pin Connector and Female PCB Header Connector customization services for reliable, high-performance connectors tailored to your project needs, backed by LP’s commitment to quality and customer satisfaction.
