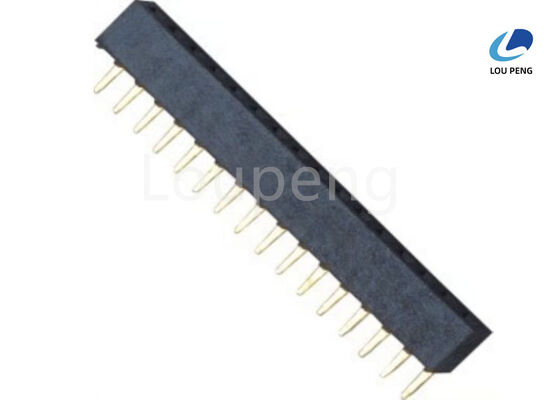

Polyester UL94V-0 Female PCB Header Connector Featuring High Durability and Compatibility with Various Electronic Modules

Product Description:

The Female Header Connector is a versatile and essential component designed for reliable electrical connections in various electronic applications. As a female connector header pin, it provides a secure interface for male pins, ensuring stable and efficient signal transmission. This connector is widely used in circuit boards, making it a fundamental element in both prototype development and mass production of electronic devices.

One of the key features of this Female Board Header Connector is its gender designation as female, which means it is specifically designed to receive and connect with male pins. This gender compatibility is crucial in ensuring proper mating and maintaining the integrity of electrical connections. The female header socket connector design offers excellent mechanical stability and electrical performance, making it suitable for a wide range of applications including consumer electronics, industrial equipment, and communication devices.

The mounting options for this female header connector are highly flexible, supporting both Through Hole and Surface Mount Technology (SMT) installation methods. Through Hole mounting provides strong mechanical bonds by inserting the pins into drilled holes on the PCB, making it ideal for applications requiring robust physical connections. On the other hand, SMT mounting offers streamlined assembly processes and is suitable for high-density circuit designs where space optimization is critical. This dual mounting capability allows designers to choose the most appropriate method based on their specific requirements.

In terms of electrical performance, this female header connector is rated for a withstanding voltage of AC 500V, ensuring reliable operation under high voltage conditions. This rating guarantees that the connector can handle significant electrical stress without breakdown, making it safe and dependable even in demanding environments. This high voltage tolerance is particularly important in industrial and automotive applications where voltage fluctuations are common.

The construction of the connector is equally impressive, featuring contacts made from high-quality copper alloys. Copper alloys are known for their excellent electrical conductivity and mechanical strength, which ensures low contact resistance and long-lasting durability. The use of copper alloy contacts enhances the overall performance of the female header socket connector by providing stable and efficient electrical connections over extended periods of use.

Another notable aspect of this female board header connector is the variety of plastic heights available, including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm. This range of plastic heights allows for customization to meet different design specifications and spatial constraints. Whether the application requires a low-profile connector or one with greater clearance, these options provide the flexibility needed to optimize the PCB layout and assembly process.

The plastics used in the connector housing not only provide mechanical support but also contribute to insulation and protection against environmental factors. High-quality plastic materials ensure durability, resistance to heat, and stability over time, which are critical attributes for maintaining consistent connector performance.

Overall, the Female Header Connector stands out as a reliable, adaptable, and high-performance solution for establishing electrical connections in a wide array of electronic devices. Its female connector header pin design, combined with the availability of both Through Hole and SMT mounting types, robust AC 500V withstanding voltage, copper alloy contacts, and multiple plastic height options, makes it an excellent choice for engineers and designers seeking dependable connector components. Whether used as a female board header connector or a female header socket connector, this product meets the demands of modern electronic assembly with precision and reliability.

Features:

• Product Name: Female Header Connector
• Also known as Female Pin Header Connector, Female PCB Header Connector, and Female Header Socket Connector
• Plastics Material: PA6T + 30% Glass Fiber for enhanced durability and strength
• Material Composition: PA6T + 30% Glass Fiber
• Contact Material: High-quality Copper Alloys for excellent conductivity
• Available Plastics Heights: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, 8.5mm
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm to suit various PCB designs

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH057, is a versatile and reliable component designed for various electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector ensures high quality and consistent performance. The product is ideal for use as a Female Inline Header Connector, Female Header Socket Connector, or Female PCB Header Connector, making it suitable for a wide range of industrial and consumer electronics projects.

This connector is widely applied in scenarios where secure and stable connections are essential. It is commonly used in PCB assemblies for computers, communication devices, and industrial control systems. Its robust design, with a high insulation resistance of at least 1000MΩ and a current rating of 1.5 Amps, ensures reliable signal transmission and power delivery even in demanding environments. The contact plating options of gold (Au) or tin (SN) over 40n provide excellent corrosion resistance and conductivity, making it suitable for long-term use in harsh conditions.

Due to its ability to withstand a maximum processing temperature of 230℃ for 30-60 seconds (or 260℃ for 5 seconds), the LP-FH057 Female Header Connector is well-suited for soldering processes in automated manufacturing lines. This feature guarantees that the connector maintains structural integrity and performance after assembly, which is crucial for high-volume production scenarios.

Packaging options such as reel, tube, tray, and polybag cater to different handling and storage needs, facilitating smooth integration into various production workflows. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000 PCS, LP ensures that large-scale manufacturing demands can be met efficiently. The competitive price of 0.0001 per piece further enhances its appeal for cost-sensitive projects.

Typical application occasions include the assembly of consumer electronics, automotive electronics, home appliances, and communication equipment. Engineers and designers rely on this Female Header Socket Connector for prototyping, product development, and final production due to its reliability and compliance with industry standards. Payment terms such as T/T and L/C offer flexible purchasing options, while a delivery time of 7 to 10 days ensures timely fulfillment of orders.

In summary, the LP-FH057 Female PCB Header Connector is an indispensable component for modern electronic assembly, providing durability, high performance, and versatility across various application occasions and scenarios.

Customization:

Our Female Header Connector product, branded as LP and model number LP-FH057, is designed to meet diverse customization needs with high quality and reliability. Manufactured in China under the ISO-9001:2000 certification, this Female Wire Header Connector ensures excellent performance with contact materials made from Phosphor Bronze or Brass and a durable PA6T standard housing.

We offer versatile customization options including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows configurations to suit your specific Female Pin Header Connector requirements. The product can withstand a maximum processing temperature of 230℃ for 30-60 seconds or 260℃ for 5 seconds, ensuring compatibility with various assembly processes.

Packaging options are flexible, available in Reel, Tube, Tray, or Polybag formats to meet your logistics needs. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, we support large scale orders with a supply ability of up to 1,000,000PCS.

Our delivery time ranges from 7 to 10 days, and we accept payment terms including T/T and L/C. Whether you require a Female Board Header Connector for standard applications or customized solutions, LP is committed to providing quality products and efficient service to support your projects.

Support and Services:

Product Technical Support and Services for the Female Header Connector include comprehensive assistance with product selection, installation guidance, and troubleshooting. Our technical support team is available to help you understand the specifications and compatibility of the connectors to ensure optimal performance in your applications.

We provide detailed datasheets, application notes, and design resources to aid in the proper integration of the Female Header Connector into your projects. Our services also cover customization options and recommendations for mating components to enhance connectivity and reliability.

For any technical issues or inquiries, we offer expert advice to resolve problems efficiently, ensuring minimal downtime and maximum satisfaction with the product. Additionally, we support warranty claims and replacement services when applicable, maintaining high standards of quality and customer care.

Packing and Shipping:

The Female Header Connector is carefully packaged to ensure protection during transit. Each connector is placed in an anti-static bag to prevent electrostatic discharge damage. Multiple bags are then securely packed into a sturdy cardboard box with cushioning materials to avoid any physical impact.

For shipping, we use reliable carriers that provide tracking services to ensure timely delivery. The packages are labeled clearly with handling instructions to maintain product integrity. Depending on the order size, shipping options include standard, expedited, and bulk freight to meet customer requirements.
