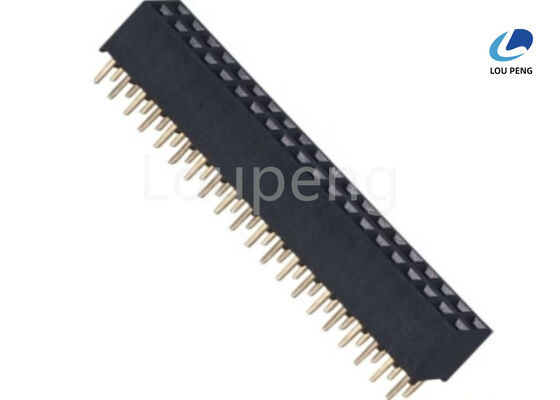

2 To 40Pin Female Header Pin Connector Built Using PA6T 30 Percent Glass Fiber Ensuring Long Term Electrical Reliability

Product Description:

The Female Header Connector is an essential component widely used in electronic and electrical applications, providing reliable and efficient connectivity for various devices and circuit boards. This particular Female Board Header Connector is manufactured with high-quality materials, ensuring durability and excellent performance under a wide range of conditions. Designed to meet industry standards, it is made from PA6T, a high-performance polyamide that offers exceptional mechanical strength, thermal stability, and resistance to chemicals and wear. This makes the connector suitable for demanding environments where long-lasting, stable connections are crucial.

One of the key features of this Female Pin Header Connector is its plating options. The connector is available with either gold or tin plating, both of which enhance conductivity and protect against corrosion, ensuring a secure and stable connection over time. The plating process is carefully controlled to maintain consistent thickness and coverage, which contributes to the overall reliability of the connector. Gold plating, in particular, is favored in applications requiring superior electrical performance and resistance to oxidation, while tin plating offers a cost-effective alternative with good solderability and corrosion resistance.

As a female connector, this product is designed to mate with corresponding male headers, providing a secure and easy-to-use interface for connecting wires, cables, or other circuit components. The Female Board Header Connector is commonly used in printed circuit boards (PCBs), offering a straightforward solution for signal transmission, power delivery, or data exchange between different parts of an electronic system. Its female gender design ensures compatibility with a wide range of male pin headers, facilitating versatile assembly options and simplifying maintenance or replacement tasks.

Versatility is another significant attribute of this Female Pin Header Connector. It is usually employed in various applications across different industries, including consumer electronics, automotive, telecommunications, industrial equipment, and more. Its adaptability stems from the connector's standard dimensions and robust construction, allowing it to fit seamlessly into diverse designs and configurations. Whether used in compact devices or larger systems, the connector consistently provides dependable performance and ease of integration.

The contact plating of the Female Board Header Connector is a critical factor in its functionality, with options including Au (gold) or Sn (tin) plating applied over a 40 microinch (40n) base. This ensures excellent electrical contact and minimizes signal loss or interference during operation. The precise plating thickness and quality contribute to the connector’s longevity, preventing wear and degradation even after numerous mating cycles. This level of contact plating is particularly important in high-frequency or sensitive electronic applications where signal integrity is paramount.

In summary, the Female Header Connector stands out as a high-quality, reliable, and versatile solution for a wide range of electronic connection needs. Its construction using PA6T material guarantees mechanical strength and durability, while the gold or tin plating options enhance electrical performance and corrosion resistance. The female design ensures compatibility with male headers, facilitating flexible and secure connections on printed circuit boards. With superior contact plating of Au or Sn over a 40n base, this Female Pin Header Connector offers exceptional signal integrity and longevity. Whether for professional electronics manufacturing or DIY projects, this connector is an excellent choice for anyone seeking a dependable Female Board Header Connector that combines quality, performance, and versatility.

Features:

• Product Name: Female Header Connector
• Available Types: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Plastics Material: PA6T with 30% Glass Fiber for enhanced durability
• Mounting Types: Through Hole and Surface Mount Technology (SMT) options
• Insulator Materials: LCP, NYLON, and PA6T (UL94V-0 rated) for high safety standards
• Compatible with Female Inline Header Connector and Female Wire Header Connector applications
• Designed for reliable electrical connections in various electronic assemblies
• Supports multiple configurations to fit diverse design requirements

Technical Parameters:

Applications:

The LP Female Wire Header Connector, model number LP-FH061, is a versatile and reliable component designed for a wide range of electrical and electronic applications. Manufactured in China under stringent ISO-9001:2000 certification standards, this connector guarantees quality and performance. Its robust construction includes an insulator made from high-quality Polyester (UL94V-0) and options such as LCP, Nylon, or PA6T (UL94V-0), ensuring excellent durability and flame retardance. The plastics material used is PA6T reinforced with 30% glass fiber, which adds strength and stability to the connector, making it suitable for demanding environments.

This Female Electrical Header Connector is ideal for scenarios where secure and reliable wire-to-board connections are essential. It supports both Through Hole and Surface Mount Technology (SMT) mounting types, offering flexibility for various PCB assembly processes. The contact plating options include gold (Au) or tin (Sn) over 40 microinches, providing excellent conductivity and corrosion resistance, which is crucial for maintaining long-term electrical performance.

Due to its high supply ability of up to 1,000,000 pieces and an economical price of 0.0001 per unit, the LP-FH061 Female Wire Header Connector is well-suited for mass production in industries such as consumer electronics, automotive electronics, telecommunications, industrial machinery, and medical devices. Its packaging options—reel, tube, tray, or polybag—allow for convenient handling and integration into automated assembly lines, enhancing production efficiency.

Typical application occasions for this Female Electrical Header Connector include connecting wiring harnesses in automotive control units, establishing secure data and power connections in telecommunications equipment, and integrating various modules in consumer electronic devices like computers, printers, and home appliances. The connector's flame-retardant materials and robust design also make it suitable for industrial machines and medical equipment that require high reliability and safety standards.

With a minimum order quantity of 1000 pieces and a delivery time of 7 to 10 days, the LP-FH061 Female Wire Header Connector balances availability and lead times effectively for both small and large-scale manufacturing projects. Payment terms including T/T and L/C facilitate smooth transactions globally, making it a preferred choice for international suppliers and manufacturers seeking dependable female header connectors for their products.

Customization:

Our Female Header Connector, branded as LP and model number LP-FH061, offers reliable and high-quality connection solutions. Manufactured in China and certified with ISO-9001:2000, this product ensures consistent performance and durability.

We specialize in product customization services for the Female Header Socket Connector, Female Pin Header Connector, and Female Socket Header Connector. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, we cater to both small and large volume needs.

The connectors are made from premium materials including PA6T with 30% glass fiber reinforcement, and insulators available in LCP, NYLON, or PA6T (UL94V-0) to meet various application requirements. The plastics height options range from 2.0mm to 8.5mm, including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm, providing flexibility for different design needs.

Our Female Pin Header Connector supports both Through Hole and SMT mounting types, ensuring compatibility with diverse PCB assembly processes. Packaging options include Reel, Tube, Tray, and Polybag, tailored to customer preferences for safe and efficient shipping.

We guarantee a delivery time of 7 to 10 days and offer flexible payment terms including T/T and L/C. With a supply ability of 1,000,000PCS, we are equipped to meet your large-scale production demands while maintaining strict quality standards based on PA6T.

Choose LP's Female Socket Header Connector for your connection solutions and experience superior customization services designed to fit your exact specifications and industry standards.
