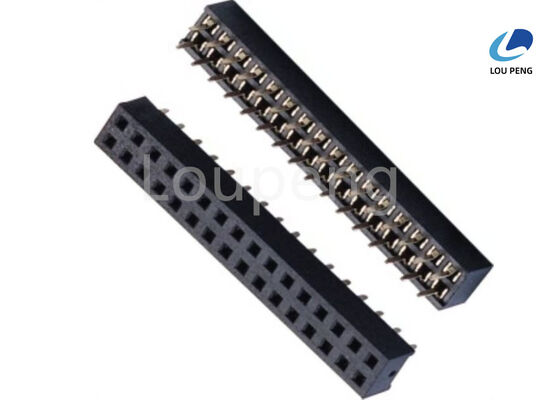

40 C to 105 C Female Header Connector Contact Resistance 30mΩ Max Ensuring Long Term Reliability and Electrical Stability

Product Description:

The Female Header Connector is an essential component widely used in electronic circuits and devices for establishing reliable connections between printed circuit boards (PCBs) and various electronic modules. Known for its versatility and robust performance, the Female PCB Header Connector offers exceptional functionality in numerous applications ranging from consumer electronics to industrial equipment.

One of the standout features of this Female Header Pin Connector is its wide operating temperature range. Designed to perform reliably in harsh environments, it can operate effectively from as low as -40 ℃ to as high as +105 ℃. This broad temperature tolerance ensures that the connector maintains stable electrical and mechanical performance even under extreme environmental conditions, making it suitable for use in automotive, aerospace, and outdoor electronic applications.

The insulator material used in the Female PCB Header Connector is high-quality polyester, rated UL94V-0 for flame retardancy. This certification means the connector meets stringent safety standards by exhibiting excellent resistance to ignition and flame spread, thereby enhancing the overall safety and longevity of the electronic assemblies in which it is used. Polyester insulators provide excellent electrical insulation, mechanical strength, and durability, which are crucial for maintaining the integrity of the connection over time.

Current rating is a critical consideration for any connector, and the Female Header Pin Connector is rated to handle up to 1.5 Amps of current. This current capacity is ideal for a wide range of low to moderate power applications, ensuring efficient and safe transmission of electrical signals without overheating or degradation of the connector components. Designers can confidently use this connector in circuits where moderate power levels are involved, guaranteeing reliable performance and energy efficiency.

Flexibility in design and application is another key attribute of the Female Header Connector. It is available with a variety of pin counts, ranging from 2 pins up to 40 pins. This wide pin range allows for customizable configurations to meet specific circuit requirements, whether connecting simple two-wire circuits or more complex multi-signal boards. The availability of multiple pin options makes it easier for engineers and designers to choose the perfect connector size and configuration to match their project needs.

Versatility is a hallmark of the Female Header Pin Connector. Its design and construction make it suitable for a vast array of applications, including but not limited to, signal and data transmission, power delivery, and interconnection between PCBs and modules. This connector is commonly used in computer motherboards, communication devices, industrial control systems, and embedded electronics, where dependable and compact connections are essential.

The Female PCB Header Connector also features a user-friendly design that facilitates easy installation and removal, making maintenance and upgrades straightforward. The connector pins are precisely aligned and securely housed within the polyester insulator, ensuring firm contact and minimizing the risk of connection failure due to vibration or physical stress.

In summary, the Female Header Pin Connector is a highly reliable, versatile, and safe connector solution for a broad spectrum of electronic applications. Its ability to operate within a wide temperature range, use of fire-retardant polyester insulators, appropriate current rating, and availability in various pin counts make it an excellent choice for engineers seeking durable and efficient female header connectors. Whether you need a connector for simple circuits or complex multi-pin assemblies, this Female PCB Header Connector offers the quality and performance necessary to meet modern electronic design challenges.

Features:

• Product Name: Female Header Connector
• Types available: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Contact Plating options: Au or SN over 40μin
• Contact Material: Phosphor Bronze or Brass
• Pitch options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Mounting Types: Through Hole and SMT
• Suitable for Female Inline Header Connector applications
• Compatible as a Female PCB Header Connector
• Also known as Female Header Socket Connector

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH060, is a highly versatile and reliable component designed for a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector guarantees quality and performance. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS, it is ideal for both small and large-scale production needs. The pricing is competitively set at 0.0001 per unit, making it an economical choice for manufacturers.

This Female Inline Header Connector is available in multiple pitch options, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing it to accommodate various design requirements. Its robust PA6T material construction ensures durability and excellent electrical insulation. The connector can withstand an AC voltage of up to 500V, making it suitable for applications requiring stable and secure electrical connections. Additionally, the product is supplied in convenient packaging forms such as reels, tubes, trays, or polybags, facilitating easy handling and integration into automated assembly lines.

Commonly used as a Female Header Pin Connector, the LP-FH060 is perfect for PCB mounting in diverse electronic devices. It is widely adopted in consumer electronics, telecommunications, industrial control systems, and automotive electronics. Its standardized dimensions and reliable contact performance make it an excellent choice for connecting daughter boards, modules, or sensors to main circuit boards. The connector’s compatibility with various pitch sizes enhances its adaptability across numerous electronic design scenarios.

The Female PCB Header Connector is especially beneficial in scenarios where secure and detachable connections are required. It is frequently used in prototyping, testing environments, and mass production of electronic assemblies. The quick delivery time of 7 to 10 days and flexible payment terms, including T/T and L/C, support efficient supply chain management. Moreover, the LP brand’s commitment to quality and customer service, supported by the Openresty server infrastructure, ensures a smooth purchasing and after-sales experience.

In summary, the LP-FH060 Female Header Connector series is an essential component for engineers and manufacturers seeking dependable, versatile, and cost-effective connection solutions. Its wide range of pitch options, high withstanding voltage, and standardized quality make it suitable for virtually any electronic application requiring a Female Inline Header Connector, Female Header Pin Connector, or Female PCB Header Connector.

Customization:

Our LP Female Header Connector, model number LP-FH060, is a high-quality Female Inline Header Connector designed to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this Female Header Pin Connector ensures reliable performance with a contact resistance of 30mΩ max.

We offer customization services with a minimum order quantity of 1000PCS, priced competitively at 0.0001 per unit. The Female Board Header Connector is made from durable PA6T with 30% glass fiber and features a polyester housing rated UL94V-0 for excellent flame resistance. The plating options include gold or tin to suit your application requirements.

Packaging options are flexible, including reel, tube, tray, or polybag to facilitate easy handling and shipping. With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, we ensure timely fulfillment of your orders.

Our payment terms include T/T and L/C, providing you with convenient and secure transaction methods. The operational temperature range of -40° to +105° makes this Female Inline Header Connector suitable for a wide variety of environments.

Contact us today to customize your Female Header Pin Connector or Female Board Header Connector to perfectly fit your application needs.
