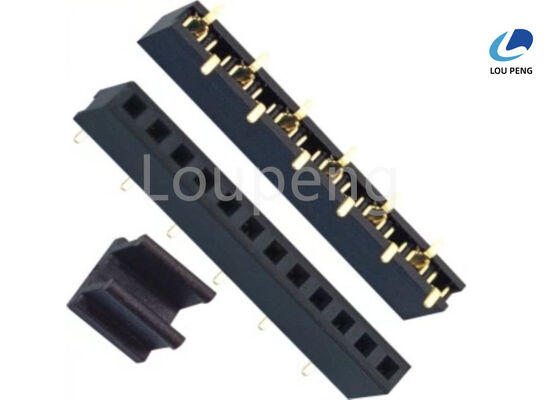

Minus 40 to Plus 105 Celsius Female Header Connector with Versatility Usually and Pitch Choices 0.8mm 1.0mm 1.27mm 2.0mm 2.54mm

Product Description:

The Female Electrical Header Connector is an essential component widely used in various electronic applications to establish secure and reliable connections between printed circuit boards (PCBs) and other electronic modules. Designed specifically with a female gender configuration, this connector provides a versatile and efficient solution for interfacing male header pins, ensuring optimal electrical performance and mechanical stability in diverse electronic assemblies.

Constructed with high-quality copper alloys for the contact material, the Female Electrical Header Connector guarantees excellent conductivity, corrosion resistance, and long-term durability. Copper alloys are chosen for their superior electrical characteristics, which help minimize signal loss and maintain consistent electrical contact over extended periods of use. This makes the connector ideal for applications where signal integrity and robust electrical connections are critical.

The insulation of the Female Header Pin Connector is crafted from premium polyester material that meets the UL94V-0 flammability rating. This ensures that the connector not only provides electrical insulation but also offers enhanced safety by resisting ignition and self-extinguishing flames in the event of a fire. The UL94V-0 rating is a testament to the connector’s compliance with stringent safety standards, making it suitable for use in a wide range of commercial, industrial, and consumer electronic devices.

One of the key features of this Female PCB Header Connector is its dual mounting capability, supporting both through-hole and surface-mount technology (SMT) installation methods. The through-hole mounting option offers strong mechanical bonds by inserting the connector pins through drilled holes on the PCB and soldering them on the opposite side, thereby providing excellent stability and durability in high-vibration environments. On the other hand, the SMT mounting option allows for efficient, automated placement directly onto the PCB surface, enhancing manufacturing speed and reducing overall production costs. This flexibility in mounting types makes the Female Electrical Header Connector highly adaptable to various design requirements and manufacturing processes.

This Female PCB Header Connector is designed to be compatible with a wide range of male header pins, making it a versatile choice for many electronic projects and products. Whether used in consumer electronics, automotive systems, industrial machinery, or communication devices, the connector ensures secure and reliable mating with corresponding male connectors. Its precise manufacturing tolerances and high-quality materials contribute to consistent performance, reducing the risk of connection failures and maintenance issues.

Furthermore, the Female Header Pin Connector is engineered for easy integration into circuit designs, providing designers and engineers with a dependable component that simplifies assembly and enhances overall device reliability. Its robust construction and excellent electrical properties make it suitable for applications requiring frequent connect and disconnect cycles, such as test equipment, modular devices, and prototyping setups.

In addition to its functional benefits, the Female Electrical Header Connector is supported by a reliable supply chain and excellent customer service, ensuring that users receive consistent product quality and technical assistance when needed. The connector’s design also considers industry standards and compatibility, allowing seamless integration into existing systems without the need for extensive modifications.

In summary, the Female Electrical Header Connector is a high-performance, durable, and versatile component designed to meet the demanding requirements of modern electronic assemblies. With its copper alloy contacts, UL94V-0 rated polyester insulation, and dual mounting options of through-hole and SMT, this Female Header Pin Connector stands out as an ideal solution for ensuring secure electrical connections in a wide array of applications. Whether you are designing a new product or upgrading an existing system, this Female PCB Header Connector offers the reliability, safety, and flexibility needed to achieve optimal performance and longevity.

Features:

• Product Name: Female Header Connector
• Material: PA6T + 30% Glass Fiber plastic for enhanced durability
• Contact Resistance: 30mΩ Max, ensuring reliable electrical connection
• Housing made of Polyester (UL94V-0) for excellent flame retardance
• Standard: PA6T, providing high mechanical strength and heat resistance
• Maximum Processing Temperature: 230℃ for 30-60 seconds, 260℃ for 5 seconds
• Compatible as Female PCB Header Connector for various electronic applications
• Functions as a Female Connector Header Pin for secure and stable connections
• Also known as Female Header Pin Connector, suitable for PCB mounting

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH056, is a versatile and reliable solution designed for a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector ensures high quality and consistent performance. With a supply ability of 1,000,000PCS and a minimum order quantity of 1000PCS, it is ideal for both small and large scale production requirements. Priced competitively at 0.0001 per piece, this connector offers excellent value without compromising on quality.

The Female PCB Header Connector is available in multiple configurations including vertical, right angle, SMT, single row, double row, and three rows, accommodating 2 to 40 pins. Made from high-grade phosphor bronze or brass pin materials, it guarantees excellent conductivity and durability. The maximum processing temperature supports soldering at 230℃ for 30-60 seconds or 260℃ for 5 seconds, making it suitable for various PCB assembly processes. With a contact resistance of 30mΩ max, it ensures stable electrical connections throughout the product’s lifecycle.

This Female Socket Header Connector is widely used in numerous occasions and scenarios such as consumer electronics, communication devices, industrial machinery, automotive electronics, and home appliances. Its compact design and reliable electrical performance make it perfect for connecting different circuit boards, modules, and components within a device. The connector’s packaging options include reel, tube, tray, and polybag, facilitating easy handling and integration into automated production lines.

In industrial and commercial projects, the Female Electrical Header Connector is essential for ensuring secure and efficient connectivity. It is commonly applied in PCB interconnections, signal transmission systems, and power supply modules where dependable connections are critical. The connector’s compatibility with various payment terms such as T/T and L/C, along with a delivery time of 7 to 10 days, makes it an excellent choice for businesses seeking timely and flexible procurement solutions.

Overall, the LP-FH056 Female Header Connector stands out as a high-performance, cost-effective component suitable for diverse electronic applications. Its robust build, multiple configuration options, and stringent quality certifications position it as a trusted connector for engineers and manufacturers aiming for reliable and efficient electronic assemblies.

Customization:

Introducing the LP Female Header Connector, model number LP-FH056, proudly made in China. This Female Inline Header Connector is designed with high versatility, making it suitable for various electronic applications. Certified by ISO-9001:2000, it guarantees quality and reliability for your projects.

Our Female Connector Header Pin features contact materials made from phosphor bronze or brass, ensuring excellent conductivity and durability. The plastics height options range from 2.0mm to 8.5mm, including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm, providing flexibility to meet your design requirements.

The Female Board Header Connector supports a working temperature range of -40℃ to +105℃ and can withstand a maximum processing temperature of 230℃ for 30-60 seconds or 260℃ for 5 seconds, ensuring stable performance during soldering.

We offer packaging options including reel, tube, tray, and polybag to accommodate your handling preferences. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, our supply ability reaches up to 1,000,000PCS, ensuring timely delivery within 7 to 10 days.

Payment terms are flexible, accepting T/T and L/C methods, making transactions convenient and secure. Choose the LP Female Header Connector for your reliable and customizable electronic connection solutions.
