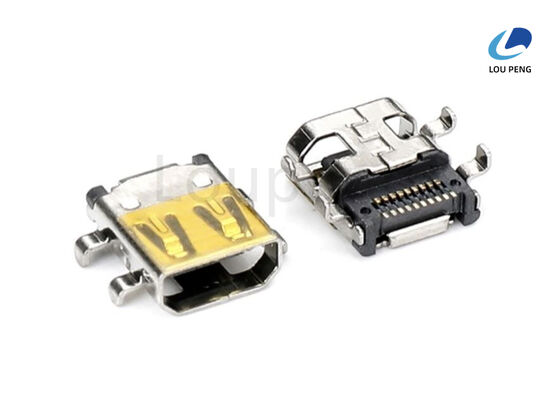

40V AC RMS DC Voltage Rating High Definition Multimedia Interface Connector Featuring 1u Au Contact Finish Suitable for Data and Video Interfaces

Product Description:

The High Speed HDMI Cable Connector is a critical component designed to ensure seamless and reliable HDMI port connection interface for a wide range of audio and video devices. Engineered with precision and durability in mind, this HDMI video audio connector offers exceptional performance, making it ideal for both consumer electronics and professional AV equipment. Whether you are setting up a home theater system, connecting a gaming console, or integrating multimedia devices, this connector guarantees a stable and high-quality signal transmission.

One of the standout features of this High Speed HDMI Cable Connector is its impressive operating temperature range, which spans from -55°C to 85°C. This wide temperature tolerance ensures that the connector performs reliably under extreme environmental conditions, making it suitable for use in various settings, including industrial applications where temperature fluctuations are common. This durability under harsh conditions protects the integrity of the HDMI port connection interface, preventing signal loss or degradation over time.

In addition to its robust thermal performance, this HDMI video audio connector boasts an insulation resistance of 100 Mega Ohms minimum. High insulation resistance is crucial for maintaining signal clarity by preventing unwanted electrical interference and leakage currents. This characteristic ensures that the video and audio signals transmitted through the HDMI cable remain clean and free from distortion, thus delivering an optimal viewing and listening experience.

The mechanical design of the High Speed HDMI Cable Connector also emphasizes user convenience and longevity. With a maximum insertion force of 3.7 Kgf, the connector strikes a perfect balance between ease of use and secure attachment. Users can easily connect and disconnect the HDMI cable without excessive effort, yet the connector remains firmly in place during operation, preventing accidental disconnections. Furthermore, this connector is rated for a maximum insertion cycle of 10,000, highlighting its durability and suitability for frequent use. This high cycle count means the connector can withstand repeated plugging and unplugging without compromising performance or physical integrity.

To further enhance the signal quality and protect against electromagnetic interference (EMI), the High Speed HDMI Cable Connector is equipped with advanced shielding technologies. It features a combination of aluminum foil and braided shield, which together provide comprehensive coverage against EMI and radio frequency interference (RFI). This shielding ensures that the HDMI port connection interface maintains a stable and interference-free connection, which is essential for delivering high-definition video and pristine audio signals. The aluminum foil provides a solid barrier against high-frequency noise, while the braided shield offers excellent coverage and flexibility, making this connector both effective and adaptable.

Overall, the High Speed HDMI Cable Connector is a premium solution for anyone seeking a reliable and high-performance HDMI connection. Its robust operating temperature range, superior insulation resistance, manageable insertion force, and long insertion cycle life combine to provide a connector that is both durable and user-friendly. The sophisticated aluminum foil and braided shielding further guarantee that the video and audio signals transmitted through the HDMI cable remain clear and uninterrupted.

Whether you are upgrading your home entertainment system, setting up a professional AV installation, or requiring a dependable HDMI video audio connector for your devices, this HDMI cable connector meets and exceeds industry standards. It is designed to deliver excellent performance, durability, and signal integrity, making it an essential component for any HDMI port connection interface.

Features:

• Product Name: HDMI Connector
• Type: High Definition Multimedia Interface Connector
• Function: HDMI Video Audio Connector for seamless multimedia transmission
• Interface: HDMI Port Connection Interface compatible with standard HDMI cables
• Operating Temperature Range: -55°C to 85°C for reliable performance in various environments
• Insertion Cycle (Maximum): 10,000 cycles ensuring durability and long-lasting use
• Withstanding Voltage: 500V AC R.m.s. for enhanced electrical safety
• Voltage Rating: 40V AC (RMS)/DC suitable for typical HDMI cable applications
• Cable Compatibility: Specifically designed for HDMI Cable integration

Technical Parameters:

Applications:

The Loupeng LP-HD039 HDMI Connector is a highly reliable HDMI Signal Transmission Connector designed to meet the demanding needs of modern multimedia applications. With 19 pins and robust shielding consisting of aluminum foil and braided shield, this connector ensures excellent signal integrity and minimal interference for both video and audio signals. Its UL94V-0 rated LCP black housing offers superior durability and safety, making it ideal for prolonged use in various environments.

Thanks to its wide operating temperature range from -55°C to 85°C and a maximum insertion cycle of 10,000 times, the LP-HD039 HDMI Video Audio Connector is perfect for both residential and commercial applications. Whether you are setting up a home theater system, a professional video conferencing setup, or a digital signage solution, this connector provides stable and high-quality HDMI multimedia interface performance.

The LP-HD039 connector is also well-suited for use in industrial and automotive electronics where temperature extremes and frequent connections and disconnections are common. Its ISO-9001:2000 certification assures customers of consistent quality and reliability. With a supply ability of 100,000 pieces and packaging options including reel, tube, or tray, Loupeng can accommodate large orders with a minimum quantity of 1000 pieces, making it a cost-effective solution at a competitive price of $0.05 per unit.

Delivery times of 7 to 10 days and flexible payment terms such as T/T and L/C further enhance the purchasing experience. The LP-HD039 HDMI Multimedia Connector Interface is an excellent choice for manufacturers and integrators who require a dependable, high-performance connector that supports high-definition video and multi-channel audio transmission with ease. Its combination of durability, shielding, and ease of installation ensures seamless connectivity in demanding HDMI signal transmission environments.

Customization:

Introducing the Loupeng HDMI Connector, model number LP-HD039, a premium HDMI Interface Connector Plug designed to meet your high-definition multimedia needs. Manufactured in China and certified with ISO-9001:2000, this connector ensures top quality and reliability.

Our HDMI Multimedia Connector Interface features 19 pins with a 24K gold-plated contact plating to guarantee excellent signal transmission and durability. It supports a maximum insertion force of 3.7 Kgf and can withstand a voltage of 500V AC R.m.s., making it a robust choice for various applications.

The product is available with plating times of 24 to 48 hours and is supplied in packaging options including reel, tube, or tray to suit your production requirements. With a minimum order quantity of 1000PCS and a competitive price of $0.05 per piece, Loupeng offers both value and performance.

We have a supply ability of up to 100,000PCS with a delivery time of 7 to 10 days. Payment terms accepted include T/T and L/C, providing flexible options for your procurement needs.

Choose the Loupeng LP-HD039 High Definition Multimedia Interface Connector for your next project and experience superior quality HDMI connectivity.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the product manual and installation guide provided with your purchase. Our support team is available to assist with troubleshooting, installation guidance, and warranty information.

Ensure that your HDMI Connector is compatible with your devices and that all connections are secure. For optimal performance, use certified HDMI cables and follow the recommended specifications outlined in the product documentation.

If you encounter any issues, consult the FAQ section on our website for common solutions and tips. For advanced technical assistance, please have your product details and purchase information ready to facilitate a quick and efficient support process.

We are committed to providing excellent customer service and ensuring your HDMI Connector meets your expectations and performance needs.

Packing and Shipping:

Each HDMI Connector is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge during transit.

The connectors are then placed in a sturdy, shock-resistant box with foam padding to ensure they remain secure and protected from impact.

For bulk orders, individual packages are consolidated into a larger carton with additional cushioning materials to prevent movement and damage.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth delivery.

We partner with reliable shipping carriers to ensure timely and safe delivery of your HDMI Connectors to your specified address.
