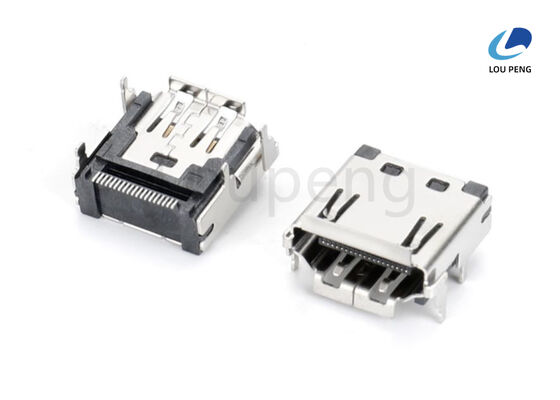

19 PIN HDMI Connector Offering 500V AC Rms Withstanding Voltage and 1u Au Contact Finish Ensuring Long Lasting Performance

Product Description:

The HDMI Connector is a high-quality HDMI Video Audio Connector designed to provide seamless and reliable connectivity for your digital devices. This HDMI Interface Connector Plug is engineered to meet the demands of modern multimedia applications, ensuring superior performance for transmitting both high-definition video and audio signals with remarkable clarity and precision. Whether you are setting up a home theater system, connecting a gaming console, or integrating professional audiovisual equipment, this HDMI Digital Audio Video Connector offers the perfect solution to meet your connectivity needs.

One of the key features of this HDMI Connector is its robust construction and meticulous plating process. The plating time for this connector ranges between 24 to 48 hours, which guarantees an exceptional level of durability and resistance to corrosion. This extended plating process not only enhances the overall lifespan of the connector but also ensures consistent signal quality by minimizing interference and signal loss. The black color finish lends a sleek and professional appearance, making it suitable for both consumer and professional environments where aesthetics and performance are equally important.

Equipped with 19 pins, this HDMI Interface Connector Plug supports a wide range of HDMI standards, enabling it to transmit high-definition video and multi-channel audio signals simultaneously. The 19-pin configuration aligns perfectly with the HDMI specification, ensuring compatibility with a vast array of devices such as HDTVs, monitors, projectors, Blu-ray players, and more. This pin arrangement facilitates the transfer of uncompressed digital video and audio data, delivering crystal-clear images and rich sound quality for an immersive viewing experience.

Durability and safety are paramount when it comes to electronic connectors, and this HDMI Video Audio Connector excels in these aspects. The welding temperature of the connector reaches a maximum of 260°C, allowing for secure and stable soldering during assembly without compromising the integrity of the connector or the connected devices. This high welding temperature tolerance ensures that the connector maintains its structural and electrical performance even in demanding manufacturing environments, providing peace of mind for both manufacturers and end-users.

In addition to its mechanical robustness, this HDMI Digital Audio Video Connector offers excellent electrical insulation and protection. It has a withstanding voltage rating of 500V AC R.m.s., which means it can safely handle voltage surges and electrical stress without failure. This high withstanding voltage capability is crucial for preventing damage caused by unexpected electrical spikes, thereby enhancing the reliability and safety of your electronic systems. Whether you are dealing with consumer electronics or professional AV installations, this connector is designed to maintain optimal performance under various electrical conditions.

Overall, this HDMI Connector is a versatile and dependable choice for anyone seeking a reliable HDMI Interface Connector Plug. Its combination of a precise 19-pin layout, extended plating time, high welding temperature tolerance, and impressive withstanding voltage rating makes it an outstanding component in the realm of digital audio and video transmission. The black color finish not only adds to its aesthetic appeal but also complements a wide range of devices and setups, ensuring that it fits seamlessly into your existing equipment.

By choosing this HDMI Video Audio Connector, you are investing in a product that guarantees excellent signal integrity, durability, and safety. It is ideal for applications requiring high-definition video and audio transmission, from everyday home entertainment systems to professional audiovisual installations. Experience superior connectivity and dependable performance with this premium HDMI Digital Audio Video Connector, designed to meet the highest industry standards and enhance your multimedia experience.

Features:

• Product Name: HDMI Connector
• Type: Female / Male HDMI Interface Connector Plug
• Contact Current Rating: 0.5A AC(rms)/DC
• Voltage Rating: 40V AC (RMS)/DC
• Cable Compatibility: HDMI Cable
• Shielding: Aluminum Foil And Braided Shield
• High performance HDMI Multimedia Connector Interface
• Supports HDMI Digital Audio Video Connector functionality

Technical Parameters:

Applications:

The Loupeng LP-HD036 HDMI Signal Transmission Connector is a high-quality HDMI Interface Connector Plug designed to meet the demanding needs of various electronic and multimedia devices. Manufactured in China and certified under ISO-9001:2000, this connector ensures reliable performance and durability, making it an ideal choice for a wide range of application occasions and scenarios. With a robust voltage rating of 40V AC (RMS)/DC and a contact current rating of 0.5A AC(rms)/DC, the LP-HD036 is engineered to provide stable signal transmission and excellent electrical connectivity.

One of the primary application scenarios for the Loupeng HDMI Signal Transmission Connector is in consumer electronics, including HDTVs, Blu-ray players, gaming consoles, and home theater systems. Its precise insertion force of 3.7 Kgf max and mating force of 44.1N max ensure secure and firm connections, reducing the risk of signal loss or disconnection during use. The connector’s plating time of 24/48 hours enhances corrosion resistance, making it suitable for environments where reliability over time is critical.

In addition to home entertainment, the LP-HD036 HDMI Interface Connector Plug is widely used in professional audiovisual equipment such as projectors, video conferencing systems, and broadcast devices. Its excellent signal integrity supports high-definition video and audio transmission, which is essential for delivering crystal-clear presentations and live broadcasts. The packaging options, including reel, tube, and tray, facilitate efficient handling and integration into automated production lines, meeting the needs of manufacturers requiring a minimum order quantity of 1000PCS.

Furthermore, this HDMI Signal Transmission Connector caters to industrial and commercial electronics, where stable and consistent HDMI connectivity is crucial. Its supply ability of 100,000PCS and competitive price of $0.05 per unit make it a cost-effective solution for large-scale deployments. With a typical delivery time of 7 to 10 days and flexible payment terms such as T/T and L/C, Loupeng ensures timely and convenient procurement for its customers worldwide.

Overall, the Loupeng LP-HD036 HDMI Signal Transmission Connector is perfectly suited for any scenario demanding reliable HDMI connectivity, from consumer electronics to professional AV applications and industrial environments. Its combination of quality certification, technical specifications, and efficient supply chain capabilities makes it a preferred choice for ensuring seamless HDMI signal transmission across a variety of devices and systems.

Customization:

Introducing the Loupeng HDMI Connector, model number LP-HD036, a reliable HDMI Signal Transmission Connector designed to meet your high-speed connectivity needs. Manufactured in China and certified with ISO-9001:2000, this HDMI Interface Connector Plug ensures superior quality and performance.

With a minimum order quantity of 1000PCS and a competitive price of $0.05 per unit, the LP-HD036 is ideal for large-scale projects. It supports a maximum welding temperature of 260°C and offers an insertion cycle of up to 10,000 times, guaranteeing durability and long-term use.

The High Speed HDMI Cable Connector comes in a sleek black color and operates at a voltage rating of 40V AC (RMS)/DC. Packaging options include reel, tube, or tray, with a delivery time of 7 to 10 days. Payment terms are flexible, accepting T/T and L/C, supported by a strong supply ability of 100,000PCS.

The plating time for the connector is carefully controlled between 24 to 48 hours, ensuring optimal conductivity and corrosion resistance. Choose Loupeng's LP-HD036 HDMI Connector for your next project and experience high-quality HDMI signal transmission with reliable performance.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the user manual and installation guide provided with the product. Our support team is available to assist with any installation issues, compatibility questions, or troubleshooting needs you may encounter.

We recommend ensuring that your HDMI Connector is used within the specified environmental conditions and with compatible devices to guarantee optimal performance. For firmware updates and additional resources, please visit our official website.

If you experience any defects or performance issues, please review the warranty terms included with your purchase. Our service centers are equipped to handle repairs and replacements in accordance with the warranty policy.

For detailed technical specifications, application notes, and best practices, consult the product datasheet and technical resources available online.

Packing and Shipping:

Each HDMI connector is carefully packed in an anti-static bag to prevent any damage from electrostatic discharge during handling and shipping.

The connectors are then placed in a sturdy, cushioned box to ensure protection against physical impacts and vibrations throughout the shipping process.

For bulk orders, the connectors are organized in segmented compartments within larger cartons to avoid any movement and potential damage.

All packages are sealed securely and labeled clearly with product information, handling instructions, and shipping details.

We use reliable courier services to ensure timely and safe delivery of your HDMI connectors to your specified address.

Tracking information will be provided once the order has been dispatched for your convenience.
