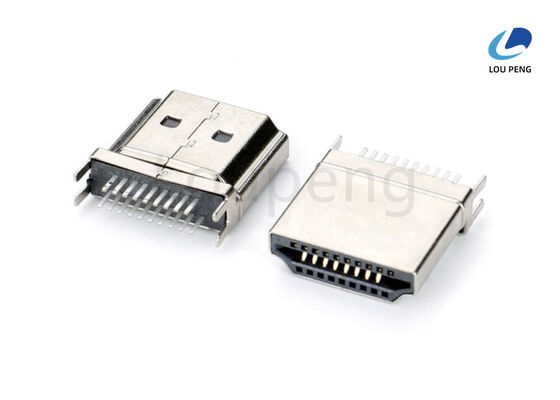

Contact Resistance 30 Milliohms Max High Speed HDMI Cable Connector Suitable for Data Transmission and Durable Connection

Product Description:

The High Speed HDMI Cable Connector is a premium-quality component designed to ensure reliable and efficient transmission of high-definition video and audio signals. Crafted with precision, this connector is an essential part of any modern HDMI port connection interface, delivering superior performance and durability for a wide range of electronic devices including televisions, monitors, gaming consoles, and home theater systems.

One of the standout features of this High Definition Video Connector is its robust construction. The shell material is made from Copper Alloy (C2680) and Brass, which provides excellent mechanical strength and corrosion resistance. This combination of metals not only enhances the longevity of the connector but also ensures stable and consistent signal transmission by minimizing interference and signal loss. The sturdy shell protects the internal components from physical damage and environmental factors, making it suitable for both residential and commercial applications.

Electrical safety and performance are paramount in the design of this connector. With a voltage rating of 40V AC (RMS)/DC, the connector is capable of handling the electrical demands of high-speed data transfer without compromising on safety. This rating ensures that the connector can be used confidently in various electronic setups without the risk of electrical failure or hazards. The voltage rating aligns with industry standards, making this connector a reliable choice for integration into a wide range of HDMI port connection interfaces.

Insertion force is a critical factor in connector usability and durability. The High Speed HDMI Cable Connector boasts an insertion force of 3.7 Kgf Max, which strikes a perfect balance between ease of connection and secure attachment. This means that users can plug and unplug the connector smoothly without excessive force, reducing wear and tear on both the connector and the HDMI port. The optimized insertion force enhances user experience by providing a snug fit that maintains a stable connection during use.

To further enhance signal integrity, the connector features advanced shielding technology. It employs a combination of aluminum foil and braided shield to protect against electromagnetic interference (EMI) and radio-frequency interference (RFI). This dual-layer shielding is crucial for maintaining the quality of high-definition video and audio signals, especially in environments with numerous electronic devices. The shielding minimizes noise and crosstalk, ensuring that the high-speed data transmitted through the HDMI cable connector remains clear and uninterrupted.

The housing of the connector is made from UL94V-0 rated Liquid Crystal Polymer (LCP) in black color. This material is known for its excellent flame-retardant properties, mechanical strength, and thermal stability. The UL94V-0 rating signifies that the housing meets stringent safety standards, providing an added layer of protection against fire hazards. The use of LCP ensures that the connector can withstand high temperatures and mechanical stress without deforming or losing functionality, making it ideal for high-performance and long-lasting HDMI port connection interfaces.

In summary, this High Speed HDMI Cable Connector combines superior materials, precise engineering, and advanced shielding to deliver a high-quality solution for high-definition video connections. Its copper alloy and brass shell provide durability, while the 40V AC/DC voltage rating ensures safe and efficient electrical performance. The carefully calibrated insertion force guarantees ease of use and secure connections, and the aluminum foil and braided shielding protect signal integrity in demanding environments. Additionally, the UL94V-0 LCP housing enhances safety and durability, making this connector an excellent choice for both consumer and professional applications. Whether you are setting up a home theater system, upgrading your gaming setup, or designing professional AV equipment, this High Definition Video Connector is designed to meet your needs with reliability and excellence.

Features:

• Product Name: HDMI Connector
• Type: HDMI Video Audio Connector
• Supports High Definition Video Connector standards
• Operating Temperature: -55°C to 85°C
• Contact Plating: 24K Gold Plated for enhanced conductivity and durability
• Color: Black
• Insulation Resistance: 100 Mega Ohms Minimum
• Pin Number: 19 PIN for reliable signal transmission
• Ideal HDMI Video Audio Connector for high-quality audio and video transmission

Technical Parameters:

Applications:

The Loupeng HDMI Connector, model number LP-HD033, is a high-quality HDMI Video Audio Connector designed and manufactured in China with ISO-9001:2000 certification. This product is ideal for various application occasions and scenarios where reliable HDMI signal transmission is essential. With its 19-pin design, this connector ensures stable and high-definition signal transfer, making it perfect for both professional and consumer electronics.

This HDMI Signal Transmission Connector is widely used in home entertainment systems, allowing users to connect their HDTVs, Blu-ray players, gaming consoles, and sound systems with ease. Thanks to its aluminum foil and braided shield, the LP-HD033 provides excellent protection against interference, ensuring crystal-clear audio and video quality. Its panel mount type makes installation straightforward and secure, suitable for both male and female HDMI port connection interfaces.

In commercial settings, the Loupeng HDMI Connector is commonly used in conference rooms, classrooms, and digital signage installations. It supports seamless connectivity between projectors, monitors, and computers, enabling efficient presentations and multimedia displays. The connector’s compatibility with standard HDMI cables ensures versatility and ease of integration into existing setups.

With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, the LP-HD033 HDMI Connector is perfect for manufacturers and distributors looking for bulk supply at a competitive price of $0.05 per piece. Packaging options such as reel, tube, or tray provide convenience for various handling and shipping needs. Delivery time is typically 7 to 10 days, with flexible payment terms including T/T and L/C.

Overall, the Loupeng HDMI Connector LP-HD033 is an essential component for any device requiring a reliable HDMI port connection interface. Whether in consumer electronics, professional AV equipment, or industrial applications, this connector delivers dependable performance and durability, making it an excellent choice for any HDMI signal transmission needs.

Customization:

Introducing the Loupeng LP-HD033 High Speed HDMI Cable Connector, a premium HDMI Interface Connector Plug designed to deliver exceptional performance and reliability. Manufactured in China and certified with ISO-9001:2000, this High Definition Video Connector ensures superior quality and durability for all your connectivity needs.

With a robust panel mount design, the LP-HD033 features a maximum welding temperature of 260°C, guaranteeing secure and stable installation. It offers a contact resistance of 30 milliohms max and supports a contact current rating of 0.5A AC(rms)/DC, making it ideal for high-definition video transmission.

Available in black color, this HDMI connector is packaged in Reel, Tube, or Tray formats to suit your production requirements. We offer a minimum order quantity of 1000PCS at an attractive price of $0.05 per unit, with a supply ability of up to 100,000PCS. Delivery time is typically 7 to 10 days, with flexible payment terms including T/T and L/C.

Choose the Loupeng LP-HD033 for your High Speed HDMI Cable Connector needs and experience reliable, high-quality connections for your high-definition video applications.

Support and Services:

Our HDMI Connector product is designed to provide high-quality audio and video transmission for a variety of electronic devices. For technical support, please refer to the user manual included with the product for installation instructions, compatibility information, and troubleshooting tips.

If you experience any issues with the HDMI Connector, ensure that all connections are secure and that your devices are powered on. Verify that the HDMI cable is not damaged and that it meets the required specifications for your setup.

For advanced troubleshooting, update your device firmware and graphics drivers to the latest versions. This can resolve many compatibility and performance issues related to HDMI connections.

We also recommend checking the resolution and display settings on your source and display devices to ensure they are properly configured for optimal performance with the HDMI Connector.

In case you need further assistance, consult the FAQs on our website or refer to the online support resources for additional guidance and support documentation.

Our technical support team is dedicated to helping you resolve any issues promptly to ensure you get the best experience from your HDMI Connector product.

Packing and Shipping:

Our HDMI Connector is carefully packaged to ensure it reaches you in perfect condition. Each connector is securely placed in an anti-static protective bag, then cushioned with foam padding inside a compact, sturdy box to prevent any damage during transit.

For shipping, we use reliable courier services that provide tracking and delivery confirmation. Orders are processed promptly, typically shipping within 1-2 business days. We take extra care to package the product to avoid any impact or moisture damage, ensuring a seamless delivery experience.
