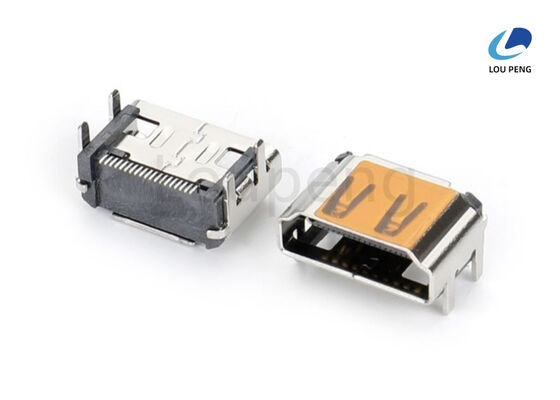

Contact Current Rating 0.5A AC rms DC HDMI Connector Panel Mount Copper Alloy C2680 BRASS Shell Material Durable Connection

Product Description:

The High Definition Multimedia Interface Connector, commonly known as the HDMI Connector, is an essential component in modern audio and video transmission systems. Designed for reliable and high-performance connectivity, this connector serves as a vital link between various electronic devices, facilitating seamless communication through the HDMI Port Connection Interface. Whether used in televisions, monitors, gaming consoles, or home theater systems, the HDMI Electronic Interface Connector ensures the efficient transfer of high-definition digital signals with exceptional clarity and precision.

One of the standout features of this HDMI Connector is its remarkable durability, boasting a maximum insertion cycle of up to 10,000. This means the connector can be plugged and unplugged thousands of times without compromising its performance or integrity, making it ideal for applications where frequent connection changes are necessary. This longevity is particularly valuable in professional environments and consumer electronics where reliability and consistent performance are paramount.

The HDMI Connector is specifically engineered to be compatible with standard HDMI cables, ensuring broad usability across a wide range of devices. This Cable Compatibility guarantees that users can easily connect their HDMI-enabled equipment without the need for specialized or proprietary cables, simplifying the setup process and enhancing user convenience. The connector supports the transmission of high-definition video and audio signals through these cables, maintaining signal quality and minimizing data loss.

With a maximum data rate of 18 Gbps, this connector supports the high bandwidth required for transmitting ultra-high-definition video and audio streams. This impressive data rate capability ensures that users can enjoy crystal-clear images, vibrant colors, and immersive sound without interruption or degradation. It is perfectly suited for applications involving 4K video, HDR content, and advanced audio formats, meeting the demands of today’s high-performance multimedia devices.

In terms of electrical performance, the HDMI Connector offers excellent insulation resistance, rated at a minimum of 100 Mega Ohms. This high insulation resistance is crucial for preventing electrical leakage and interference, thereby ensuring stable signal transmission and protecting connected devices from potential damage. The robust insulation properties contribute to the overall reliability and safety of the HDMI Port Connection Interface, making it a trusted choice for both consumer and professional use.

The product is available in both Female and Male types, providing versatility in design and application. The Female HDMI Connector is typically mounted on devices such as TVs, monitors, and projectors, serving as the receiving end of the HDMI connection. Conversely, the Male HDMI Connector is usually attached to cables or equipment that plug into the female port, completing the connection loop. This dual availability allows for flexible integration into various setups and system configurations.

In summary, the High Definition Multimedia Interface Connector is a high-quality, durable, and efficient solution for HDMI Port Connection Interface needs. Its compatibility with standard HDMI cables, impressive 18 Gbps maximum data rate, and robust insulation resistance make it an indispensable component in modern multimedia technology. Whether you require a Male or Female HDMI Electronic Interface Connector, this product delivers reliable performance, longevity, and excellent signal integrity, ensuring your devices remain connected with the highest quality transmission possible.

Features:

• Product Name: HDMI Connector
• Type: Female / Male
• Contact Current Rating: 0.5A AC(rms)/DC
• Contact Resistance: 30 Milliohms Max.
• Plating Time: 24/48 Hours
• Maximum Data Rate: 18 Gbps
• Compatible with High Speed HDMI Cable Connector standards
• Supports High Definition Multimedia Interface Connector applications
• Reliable HDMI Multimedia Connector Interface for enhanced signal transmission

Technical Parameters:

Applications:

The Loupeng LP-HD034 HDMI Signal Transmission Connector is a high-performance solution designed for a wide range of application occasions and scenarios. Manufactured in China under strict ISO-9001:2000 certification, this connector ensures reliable and stable signal transmission, making it ideal for use in consumer electronics, professional audio-visual setups, and industrial applications where high-speed data transfer is crucial.

One of the primary application scenarios for the LP-HD034 is in home entertainment systems. Whether connecting a high definition television to a Blu-ray player, gaming console, or streaming device, this High Speed HDMI Cable Connector guarantees excellent picture and sound quality. The 24K gold plated contacts enhance conductivity and reduce signal loss, ensuring seamless 4K or even 8K video transmission without interference.

In professional environments such as conference rooms, broadcasting stations, and digital signage, the LP-HD034 HDMI Signal Transmission Connector plays a vital role. Its robust design supports up to 10,000 insertion cycles, making it highly durable for frequent connections and disconnections. With a voltage rating of 40V AC (RMS)/DC and a contact current rating of 0.5A AC/DC, it is suitable for stable power and data transfer in demanding technical setups.

Industrial applications also benefit from the LP-HD034, especially where reliable HDMI connections are required in control rooms, monitoring systems, or embedded devices. The connector’s packaging options—Reel, Tube, or Tray—along with a minimum order quantity of 1000PCS and a competitive price of $0.05 per unit, make it a cost-effective choice for large-scale projects. The typical delivery time of 7 to 10 days, combined with flexible payment terms such as T/T and L/C, ensures a smooth procurement process for manufacturers and integrators.

Overall, the Loupeng LP-HD034 is an ideal HDMI Signal Transmission Connector for anyone seeking a high-quality, durable, and efficient connection solution. Whether for personal use in home theaters, professional AV installations, or industrial applications, it delivers consistent performance supported by reliable manufacturing standards and a strong supply capacity of 100,000PCS. Its 24/48 hours plating time further enhances corrosion resistance, ensuring longevity and stable performance in various environments.

Customization:

Loupeng offers professional product customization services for the HDMI Connector model LP-HD034, originating from China and certified with ISO-9001:2000. Our HDMI Port Connection Interface is designed to meet high standards with a minimum order quantity of 1000PCS, priced competitively at $0.05 each.

The HDMI Interface Connector Plug is part of our HDMI / MINI HDMI / MICRO HDMI Series, featuring excellent shielding with aluminum foil and braided shield to ensure reliable HDMI signal transmission. It supports a maximum data rate of 18 Gbps, with insulation resistance of 100 Mega Ohms minimum and contact resistance up to 30 milliohms max.

Packaging options include Reel, Tube, and Tray to suit various logistics needs. We guarantee a delivery time of 7 to 10 days, backed by a supply ability of 100,000PCS. Payment terms accepted are T/T and L/C, making procurement smooth and convenient.

Choose Loupeng's HDMI Signal Transmission Connector for superior quality and reliable HDMI port connection solutions customized to your requirements.

Support and Services:

Our HDMI Connector product is designed to provide reliable and high-quality connectivity for your audio and video devices. For technical support, please ensure that your HDMI cables and connectors are properly installed and compatible with your devices.

If you experience any issues such as no signal, poor image quality, or intermittent connections, please verify the following:

1. Check that all HDMI connections are securely plugged in.

2. Ensure that the connected devices are powered on and set to the correct input/output source.

3. Confirm that the HDMI cable and connector support the required HDMI version for your devices.

4. Try using a different HDMI cable or port to isolate the issue.

For firmware updates, compatibility questions, or advanced troubleshooting, please refer to the product manual or visit our online support resources.

We also offer installation services and extended warranty options for your HDMI Connector product. Please consult our service plans for more information.

Your satisfaction is our priority. Should you need further assistance, please have your product details and purchase information ready when contacting our support team.

Packing and Shipping:

Each HDMI Connector is carefully packaged in a protective blister pack to prevent damage during handling and transportation.

The product is securely placed in a custom-molded insert to ensure it remains in position and is shielded from impact.

Outer packaging consists of a sturdy cardboard box designed to withstand shipping stresses and provide additional protection.

For bulk orders, HDMI Connectors are packed in larger boxes with appropriate cushioning materials to avoid movement and damage.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth transit.

We use reliable courier services and provide tracking information to ensure timely and safe delivery to our customers worldwide.
