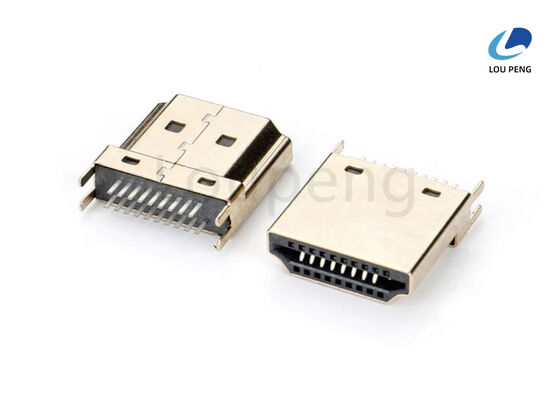

40V AC RMS DC Voltage Rating HDMI Video Audio Connector Male Female Suitable for Audio Video Transmission Applications

Product Description:

The HDMI Digital Audio Video Connector is an essential component in modern electronic devices, designed to provide seamless connectivity for high-definition multimedia applications. This connector is engineered to deliver superior performance, ensuring that both audio and video signals are transmitted with exceptional clarity and reliability. As a High Definition Video Connector, it supports the latest standards in digital video transmission, making it ideal for use in a variety of consumer electronics such as televisions, monitors, projectors, and gaming consoles.

One of the key features of this HDMI connector is its robust construction, which is built to withstand demanding usage conditions. The connector is available in both female and male configurations, offering versatility to suit different installation needs and device interfaces. This flexibility allows it to be used in a wide range of applications, from simple home entertainment setups to complex professional audiovisual systems.

In terms of electrical performance, the HDMI connector boasts a voltage rating of 40V AC (RMS)/DC, ensuring safe and reliable operation under typical usage scenarios. This rating makes it suitable for transmitting high-definition multimedia signals without the risk of electrical failure or signal degradation. Additionally, the connector is designed to operate at a maximum welding temperature of 260°C, highlighting its durability and capability to endure the soldering processes involved in manufacturing and assembly.

The contact finish of the HDMI Digital Audio Video Connector is another critical aspect that contributes to its overall performance. It features a 1u Au (1 micron gold) plating on the contact surfaces, which significantly enhances conductivity and reduces the risk of corrosion over time. This gold plating ensures that the connector maintains a stable and low-resistance connection, which is vital for preserving the integrity of high-definition signals during transmission.

Moreover, the plating process for this High Definition Multimedia Interface Connector is meticulously controlled, with plating times set at 24 or 48 hours depending on specific production requirements. This extended plating duration guarantees a uniform and robust layer of gold, further enhancing the connector’s resistance to wear and environmental factors. The high-quality plating not only improves electrical performance but also extends the lifespan of the connector, making it a reliable choice for long-term use.

The HDMI Digital Audio Video Connector is designed with user convenience and compatibility in mind. It supports high-definition video resolutions and multi-channel audio formats, enabling users to enjoy an immersive multimedia experience. Whether you are connecting a Blu-ray player to a high-definition television or linking a gaming console to a projector, this connector ensures that your devices communicate effectively without loss of quality.

In summary, this High Definition Video Connector combines superior electrical characteristics, durable materials, and precise manufacturing processes to deliver a product that meets the stringent demands of modern multimedia applications. Its maximum welding temperature of 260°C, 40V voltage rating, and 1u Au contact finish reflect a commitment to quality and reliability. Available in both female and male types and featuring carefully controlled plating times of 24 to 48 hours, this HDMI connector stands out as a high-performance solution for anyone seeking dependable and high-quality digital audio and video connectivity.

Features:

• Product Name: HDMI Connector
• Contact Plating: 24K Gold Plated for enhanced durability and signal quality
• Housing Material: UL94V-0 LCP in Black, ensuring high flame retardancy
• Mating Force: 44.1N Max., providing secure and reliable connections
• Mounting Type: Panel Mount for easy installation
• Contact Resistance: 30 Milliohms Max., ensuring efficient HDMI signal transmission
• Designed as an HDMI Signal Transmission Connector for superior performance
• Ideal HDMI Port Connection Interface for various electronic devices

Technical Parameters:

Applications:

The Loupeng HDMI Connector, model number LP-HD031, is a high-quality HDMI Signal Transmission Connector designed to meet the demanding needs of modern multimedia applications. Originating from China and certified with ISO-9001:2000, this connector guarantees reliable performance and durability, making it an ideal choice for various application occasions and scenarios.

In home entertainment systems, the LP-HD031 HDMI Multimedia Connector Interface plays a crucial role in delivering high-definition audio and video signals between devices such as TVs, Blu-ray players, gaming consoles, and sound systems. Its 19 PIN configuration ensures seamless transmission of uncompressed digital signals, providing crystal-clear image and sound quality for an immersive viewing experience.

In professional audio-visual setups, the Loupeng HDMI Electronic Interface Connector is extensively utilized in conference rooms, auditoriums, and broadcasting stations. Its robust design, featuring a copper alloy (C2680) / brass shell and aluminum foil and braided shielding, ensures excellent electromagnetic interference protection and signal integrity, even in environments with heavy electronic noise.

Manufacturers and assembly lines also benefit from the LP-HD031 HDMI Connector’s high insertion cycle capability of up to 10,000 times, and its maximum welding temperature of 260°C, which allows for efficient and secure soldering during production. The connector is available in packaging options such as reel, tube, and tray, accommodating various automated assembly processes.

With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS at an economical price of $0.05 per unit, the Loupeng HDMI Connector is well-suited for large-scale projects and OEM partnerships. Delivery is prompt, with lead times between 7 to 10 days, and flexible payment terms including T/T and L/C facilitate smooth procurement transactions.

Overall, the Loupeng LP-HD031 HDMI Signal Transmission Connector stands out as a reliable, cost-effective, and versatile interface solution across multiple application scenarios, from consumer electronics and professional AV installations to manufacturing and system integration, ensuring superior HDMI multimedia connectivity and performance.

Customization:

Introducing the Loupeng LP-HD031 High Definition Multimedia Interface Connector, a premium HDMI Electronic Interface Connector designed to meet the highest standards of quality and performance. Manufactured in China and certified with ISO-9001:2000, this HDMI Digital Audio Video Connector ensures reliable and efficient signal transmission for your audio and video needs.

The LP-HD031 model features 19 pins and supports a maximum data rate of 18 Gbps, making it ideal for high-speed digital audio and video applications. With an insertion force of 3.7 Kgf max and an impressive insertion cycle maximum of 10,000, this connector guarantees durability and long-lasting performance.

We offer flexible product customization services with a minimum order quantity of 1000PCS. Packaging options include Reel, Tube, and Tray to suit your specific requirements. Our supply ability is up to 100,000PCS with a delivery time of 7 to 10 days.

Payment terms are convenient and secure, including T/T and L/C methods. The Loupeng HDMI / Mini HDMI / Micro HDMI Series connectors are engineered to provide excellent connectivity and compatibility for various electronic devices.

Choose the Loupeng LP-HD031 HDMI Electronic Interface Connector for your next project and experience superior quality and service in HDMI Digital Audio Video Connector solutions.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the user manual and installation guide provided with your purchase. Our support team is dedicated to assisting you with product setup, troubleshooting, and any technical inquiries to ensure optimal performance.

If you encounter any issues with the HDMI Connector, verify that all connections are secure and compatible with your devices. Ensure that your devices support HDMI standards and that cables are not damaged.

For software updates, firmware upgrades, and additional resources, please visit our official website. We provide comprehensive FAQs, downloadable manuals, and instructional videos to help you get the most out of your HDMI Connector.

Warranty services are available for products that meet the warranty conditions. Please review the warranty terms and conditions for detailed information on service eligibility and procedures.

Our technical support team is committed to providing timely and effective solutions. For complex issues, please have your product model number and purchase details ready to facilitate a quicker resolution.

Packing and Shipping:

Each HDMI Connector is carefully packaged in an anti-static bag to prevent any damage from static electricity during transit.

The product is then placed in a sturdy, shock-resistant box with sufficient padding to ensure it remains secure and protected from impacts.

For bulk orders, HDMI Connectors are organized in labeled cartons with clear handling instructions to facilitate easy identification and safe transportation.

All packages are sealed securely and clearly marked with shipping labels, including fragile warnings where necessary.

We use reliable shipping carriers to ensure timely delivery and provide tracking information for all shipments.
