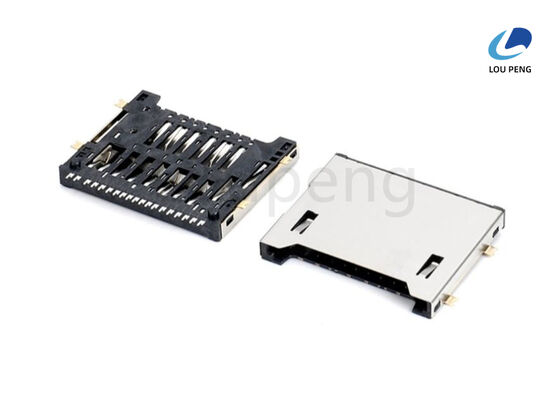

Contact Separation Force 0.20kgf Minimum SD Holder Connector Gold Plated Contact Dielectric Withstanding Voltage AC 50OV Rms Electrical Component

Product Description:

The SD Holder Connector is a high-quality component designed for reliable and efficient interfacing with SD cards. This product is an essential part of any device requiring secure and stable SD card connectivity, such as digital cameras, portable media players, and embedded systems. The SD Holder Connector is engineered to provide excellent performance, durability, and ease of use, making it an ideal choice for manufacturers and developers seeking a dependable SD Card Holder Assembly solution.

One of the key features of this SD Card Holder Assembly is its precise Card Push Insertion / Out Force, which ranges between 0.7 to 1.20 kgf. This specification ensures that the SD card can be inserted and removed smoothly without excessive force, providing a user-friendly experience while maintaining a secure connection. The careful calibration of insertion and ejection force helps prevent damage to both the card and the connector, thereby extending the lifespan of the device.

In terms of electrical performance, the SD Card Reader Connector offers outstanding insulation resistance with a minimum rating of 1000 MΩ. This high insulation resistance guarantees minimal leakage current and excellent protection against electrical interference, ensuring stable data transfer and reliable operation in various environmental conditions. Additionally, the dielectric withstanding voltage of AC 500V R.m.s. provides robust protection against voltage spikes and electrical surges, safeguarding both the connector and the connected device from potential damage.

The contact material used in this SD Card Holder Assembly is a copper alloy with a thickness of 0.15mm. Copper alloy is chosen for its excellent electrical conductivity, mechanical strength, and corrosion resistance, which are critical for maintaining consistent signal integrity and long-term reliability. The thin yet sturdy contacts ensure a stable connection with the SD card terminals, reducing the risk of data loss or communication errors during usage.

Furthermore, the contact current rating of this SD Card Reader Connector is 0.5 Amperes, which is adequate for the power requirements of standard SD cards. This rating ensures that the connector can handle the necessary current without overheating or degrading, contributing to the safe and efficient operation of the device. The balanced electrical and mechanical properties make this connector suitable for a wide range of applications where SD card interfacing is required.

The SD Holder Connector is designed with user convenience and product reliability in mind. Its compact form factor and robust construction make it easy to integrate into various device designs without compromising performance. Whether you are developing consumer electronics, industrial equipment, or portable devices, this SD Card Holder Assembly provides a dependable and high-performance solution for SD card connectivity needs.

In summary, the SD Card Holder Assembly offers a comprehensive set of features that ensure secure, reliable, and efficient communication with SD cards. With a carefully controlled insertion and ejection force, high insulation resistance, strong dielectric withstand voltage, and durable copper alloy contacts, this SD Card Reader Connector stands out as a premium choice for manufacturers. Its 0.5 Ampere current rating further attests to its capability in supporting standard SD card operations safely. Choosing this SD Holder Connector means investing in quality, performance, and durability for your SD card interfacing applications.

Features:

• Product Name: SD Holder Connector
• Type: Secure Digital Card Connector
• Spring Type: SWP
• Includes Card Detect Switch for enhanced functionality
• Contact Material: High-quality Copper Alloy
• Insulator: High-Temperature Plastic, UL 94V-0 Rated for safety
• Contact Separation Force: Minimum 0.20kgf ensuring reliable contact
• Ideal as an SD Memory Card Holder for various applications

Technical Parameters:

This SD Memory Card Holder is an ideal SD Memory Slot Connector designed for Secure Digital Card Slot applications, providing reliable performance and durability.

Applications:

The LP-SD029 Secure Digital Holder Connector, manufactured by LP in China, is a highly reliable and versatile component designed for various electronic devices requiring a Secure Digital Card Reader interface. With ISO-9001:2000 certification, this product guarantees quality and durability, making it ideal for mass production with a minimum order quantity of 1000PCS. The product is competitively priced at 0.0003 per unit, making it an economical choice for manufacturers and assemblers.

This SD Card Interface Holder is engineered to operate efficiently within a wide temperature range of -40°C to 90°C, ensuring stable performance in diverse environmental conditions. Its robust construction, combining high-quality plastic and metal materials, along with terminals made of copper alloy, supports a reliable contact current rating of 0.5 Amperes. This makes the LP-SD029 model suitable for devices that require consistent and secure electrical connections.

Available in configurations with 8, 9, or 11 pins, the Secure Digital Holder Connector can accommodate various SD card standards and designs. Its packaging in reel, tube, or tray formats facilitates easy handling and integration into automated assembly lines, streamlining production processes. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures prompt availability and efficient logistics support.

The LP-SD029 is ideal for application occasions such as consumer electronics, including digital cameras, portable media players, and handheld gaming devices, where reliable Secure Digital Card Readers are essential. It is also widely used in industrial equipment, automotive systems, and communication devices that require secure and durable SD Card Interface Holders. This connector ensures secure data transmission and card retention even under mechanical stress or temperature fluctuations.

Furthermore, the LP-SD029 Secure Digital Holder Connector is perfect for scenarios requiring compact and reliable card readers embedded in devices like laptops, tablets, and networking equipment. Its high-quality construction and precise pin configurations make it a preferred choice for manufacturers focused on delivering end-users dependable and long-lasting SD card connectivity solutions.

With flexible payment terms including T/T and L/C, customers can conveniently procure the LP-SD029 in bulk. Whether for new product development or replacement parts, this Secure Digital Holder Connector provides an optimal balance of quality, cost-efficiency, and performance, making it a vital component in modern electronic device manufacturing.

Customization:

Introducing the LP brand SD Holder Connector, model number LP-SD029, a high-quality SD Card Reader Connector designed for embedded systems and consumer electronics. Manufactured in China and certified under ISO-9001:2000, this SD Card Socket Connector ensures reliable performance and durability.

The LP-SD029 features a copper alloy contact material with a thickness of 0.15mm, providing excellent conductivity and a card retention force of 10-20N for secure connections. Its surface mount design allows easy integration into various electronic devices.

We offer flexible packaging options including reel, tube, and tray, catering to different production needs. With a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, we ensure timely delivery within 7 to 10 days. Payment terms include T/T and L/C for your convenience.

Our SD Card Reader Connector is competitively priced at $0.0003 per unit, making it an ideal choice for large-scale manufacturing. Trust the LP-SD029 SD Card Socket Connector to deliver exceptional quality and performance for your electronic applications.

Support and Services:

Product Technical Support and Services for the SD Holder Connector are designed to ensure optimal performance and customer satisfaction. Our support team provides comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to help you get the most out of your SD Holder Connector.

We offer detailed product documentation, including datasheets and user manuals, to help you understand the specifications and proper usage. Our technical specialists are available to answer any questions related to product compatibility, electrical characteristics, and mechanical design.

In addition, we provide repair and replacement services for connectors that may be damaged during normal use or installation. Our quality assurance process ensures that all products meet stringent standards before delivery.

For enterprise customers, we offer customized solutions and consulting services to tailor the SD Holder Connector to specific application requirements. This includes assistance with design integration and performance optimization.

Continuous product updates and firmware support are available to keep your connectors up to date with the latest technological advancements. We are committed to delivering reliable and efficient technical support throughout the lifecycle of your SD Holder Connector.

Packing and Shipping:

Product Packaging: The SD Holder Connector is securely packaged in an anti-static bag to prevent any damage from electrostatic discharge during handling and transportation. It is then placed inside a sturdy cardboard box with protective padding to ensure the product remains intact and free from scratches or impacts. The packaging includes a clear label with product details, specifications, and handling instructions.

Shipping: We offer reliable shipping options to ensure your SD Holder Connector arrives promptly and safely. The product is shipped via trusted carriers with tracking available for all orders. Standard shipping typically takes 3-7 business days, while expedited options are also available for faster delivery. All shipments are carefully inspected before dispatch to guarantee quality and accuracy.
