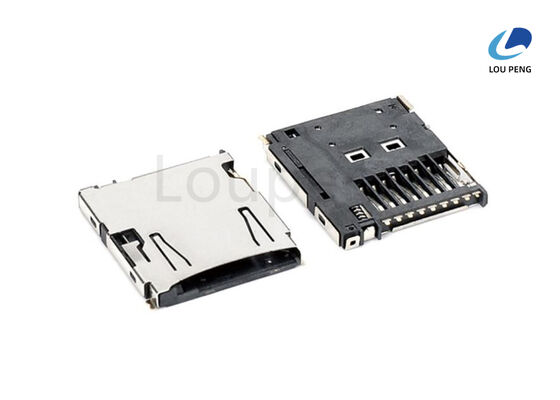

Withstanding Voltage AC 500V Black SD Card Reader Connector Durable Compatible with Various Devices and Easy Installation

Product Description:

The SD Holder Connector is a high-quality component designed to provide reliable and secure connectivity for Secure Digital (SD) cards. As an essential part of many electronic devices, this SD Card Holder Assembly ensures seamless integration and optimal performance in various applications including consumer electronics, industrial equipment, and communication devices. Engineered with precision and durability in mind, this connector offers a robust solution for securely housing and interfacing SD cards.

One of the standout features of this SD Card Socket Connector is its excellent dielectric withstanding voltage capability. Rated at AC 500V R.m.s., it provides superior insulation and protection against electrical breakdowns, ensuring the safety and longevity of both the connector and the host device. This high dielectric strength is especially important in environments where electrical interference and voltage spikes are common, making the connector highly reliable under demanding conditions.

The contact material used in this SD Card Holder Assembly is a premium copper alloy, chosen for its outstanding electrical conductivity and mechanical resilience. Copper alloy contacts ensure low resistance and stable signal transmission, which is critical for maintaining high-speed data transfer rates between the SD card and the host device. Moreover, these contacts are designed to withstand repeated insertion and removal cycles without degradation, providing long-term reliability and consistent performance.

Contact separation force is another critical attribute of this Secure Digital Card Connector. With a minimum force of 0.20kgf required to separate the contacts, the connector strikes the perfect balance between secure retention and ease of use. This force ensures that the SD card remains firmly seated during operation, preventing accidental disconnections while allowing smooth insertion and removal when necessary. Users can trust that their data connections remain stable even in mobile or vibration-prone environments.

The terminals of this SD Card Holder Connector are also constructed from copper alloy, reinforcing the connector’s overall electrical and mechanical integrity. These terminals facilitate reliable soldering and connection to printed circuit boards (PCBs), ensuring a stable and durable electrical path. The copper alloy terminals contribute to minimizing contact resistance and enhancing signal integrity, which is vital for the high-speed data communication standards supported by SD cards.

Encasing this high-performance connector is a shell made of stainless steel with a thickness of 0.20mm. The stainless steel shell provides exceptional mechanical strength and corrosion resistance, protecting the internal components from physical damage and environmental factors such as moisture, dust, and oxidation. The robust shell design not only enhances the durability of the SD Card Holder Assembly but also adds a sleek and professional appearance suitable for a wide range of devices.

In summary, the SD Holder Connector is a meticulously engineered Secure Digital Card Connector that combines durable materials, precise mechanical design, and excellent electrical properties. Its AC 500V dielectric withstanding voltage, copper alloy contacts and terminals, secure contact separation force, and sturdy stainless steel shell make it an ideal choice for manufacturers and designers looking for a reliable SD Card Socket Connector. Whether in consumer electronics, industrial systems, or communication devices, this connector guarantees secure, stable, and efficient SD card interfacing, ensuring data integrity and device performance over time.

Features:

• Product Name: SD Holder Connector
• Terminal Material: Copper Alloy for excellent conductivity
• Link Material: Stainless Steel for durability and strength
• Contact Plating: Gold Plated to ensure reliable signal transmission
• Card Insertion Force: 30-50N for smooth and secure card engagement
• Slider Material: High-Temperature Plastic, UL 94V-0 Rated for safety and heat resistance
• Designed to be compatible with Secure Digital Card Slot applications
• Ideal for use in Secure Digital Card Reader devices
• Provides a reliable connection for Secure Digital Card Connector interfaces

Technical Parameters:

Applications:

The LP SD Holder Connector, model number LP-SD028, is a high-quality SD Card Interface Holder designed to meet the rigorous demands of modern electronic devices. Manufactured in China and certified under ISO-9001:2000, this SD Memory Card Holder guarantees reliability and durability. Its gold-plated contacts ensure excellent conductivity and corrosion resistance, making it an ideal choice for applications requiring stable data transmission. With an operating temperature range from -40°C to 90°C, this connector performs reliably under extreme environmental conditions, making it suitable for a wide variety of usage scenarios.

One of the primary application occasions for the LP-SD028 SD Card Reader Connector is in consumer electronics such as digital cameras, camcorders, and portable media players. It provides a secure and reliable interface for SD memory cards, facilitating quick and easy data access and transfer. Additionally, this SD Card Interface Holder is extensively used in computing devices like laptops, tablets, and embedded systems where expandable storage is essential. Its card detect switch feature allows the host device to recognize when an SD card is inserted or removed, enhancing user convenience and operational efficiency.

In industrial and automotive settings, the LP-SD028 SD Memory Card Holder proves invaluable for data logging, firmware updates, and system diagnostics. The connector’s robust insulation resistance of 1000 MΩ minimum and a strong contact separation force of 0.20kgf minimum ensure secure connections even in vibration-prone environments. Packaging options including reel, tube, and tray accommodate various manufacturing requirements, supporting high-volume installations with a supply ability of 100,000 pieces. With a minimum order quantity of 1000PCS and competitive pricing at $0.0003 per unit, this product offers excellent cost-efficiency for large-scale production.

The delivery time of 7 to 10 days and flexible payment terms like T/T and L/C make the LP-SD028 SD Card Reader Connector a reliable choice for businesses looking to integrate SD card interfaces into their products swiftly and economically. Whether for consumer electronics, industrial equipment, or automotive applications, this SD Card Interface Holder delivers consistent performance and ease of integration, meeting the needs of diverse scenarios where secure and efficient memory card connectivity is crucial.

Customization:

LP brand SD Holder Connector, model number LP-SD028, is a high-quality SD Card Holder Assembly designed and manufactured in China. Certified with ISO-9001:2000, this product ensures reliable performance and durability for various applications.

This SD Card Reader Connector features a surface mount design with terminals made from copper alloy, providing excellent conductivity and strength. The link is crafted from stainless steel, while the cover is made of brass with nickel plating for enhanced corrosion resistance. The contact material used is phosphor bronze, ensuring stable and long-lasting connections.

We offer flexible packaging options including reel, tube, and tray to meet different production needs. With a minimum order quantity of 1000PCS and a competitive price of 0.0003 per unit, LP-SD028 is ideal for mass production. Our supply ability reaches up to 100000PCS with a delivery time of 7 to 10 days, ensuring timely fulfillment of your orders.

Payment terms are convenient and secure, supporting T/T and L/C methods. Whether you require SD Card Socket Connector solutions for consumer electronics or industrial devices, LP’s SD Holder Connector provides a reliable and efficient option for your product customization needs.

Support and Services:

Our SD Holder Connector product is designed to provide reliable and secure connections for SD cards in various electronic devices. For technical support, please ensure that your SD Holder Connector is properly installed and compatible with your device specifications.

If you experience any issues with the SD Holder Connector, such as connection failures or physical damage, please refer to the product manual for troubleshooting steps. Common solutions include checking the alignment of the SD card, cleaning the connector contacts, and verifying that the card is fully inserted.

We offer comprehensive services including product repair, replacement, and warranty support for the SD Holder Connector. Please review the warranty terms to determine eligibility for service.

For optimal performance, avoid exposing the SD Holder Connector to extreme temperatures, moisture, or mechanical stress. Regular inspection and maintenance can help extend the life of your product.

Our technical team is committed to assisting you with any questions or concerns regarding the SD Holder Connector. We recommend having the product model number and purchase details available when seeking support to expedite the service process.

Packing and Shipping:

Product Packaging:

The SD Holder Connector is securely packaged in a durable, anti-static bag to prevent any damage or static discharge during transit. Each unit is then placed in a compact, sturdy cardboard box with protective padding to ensure the product remains intact and free from scratches. The packaging includes a clear label with the product name, specifications, and barcode for easy identification and inventory management.

Shipping:

We offer reliable shipping options to ensure your SD Holder Connector arrives promptly and safely. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking information provided. Depending on your location, standard or expedited shipping methods are available. International shipping is also offered with customs documentation prepared for a smooth delivery experience.
