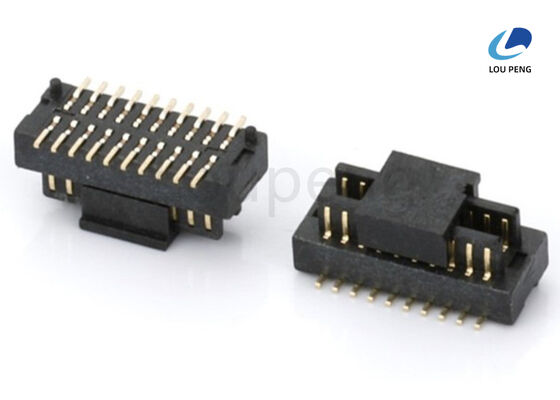

0.5mm pitch Board to Board Connector, PCB connector, male, gold plated, H=7.5mm, 10pin ~ 100pin

NOTES:

1.HOUSING  MATERIAL:  LCP   UL94V-0

2.TERMINAL  AND POST  MATERIAL: COPPER  ALLOY, GOLD PLATING OVER NICKEL.

SPECIFICATIONS:

1. ELECTRICAL CHARACTERISTICS:

1-1. RATING  CURRENT:  POWER  PIN  3A/CONTACTO,

                                             SIGNAL PIN  0.3A/CONTACT(MAX.5A  AT  TOTAL  CONTACT).

1-2.VOLTAGE  RATING:  50V

1-3. CONTACT  RESISTANCE:  POWER  PIN  20mΩ  MAX,SIGNAL  PIN  50mΩ  MAX.

1-4. DIELECTRIC  WITHSTANDING  VOLTAGE:  250V  AC  FOR  ONE  MINUTE.

1-5. INSULATION  RESISTANCE:  1000MΩ MIN.

2.MECHANICAL  CHARACTERISTICS:

2-1. INSERTION  FORCE:  1.5N/PIN  MAX(40N  MAX  TOTAL)

2-2.WITHDRAWAL  FORCE:  0.15N/PIN  MIN

3.DURABILITY:  30  CYCLES(MIN)

4.AMBIENT  TEMPERATURE  RANGE: -55ºC ~ +125ºC
