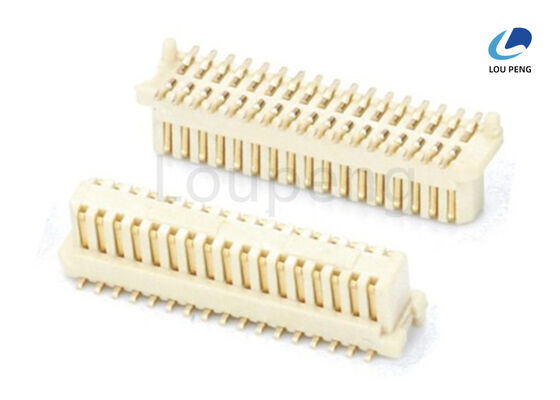

Voltagerating Up To 250V PCB Board Interconnect Connector Providing Contact Resistance Signal Pin 50mΩ Max Ensuring Signal Transmission

Product Description:

The Board To Board Connector is a highly reliable and efficient solution designed for seamless interconnection between printed circuit boards in various electronic applications. As a Printed Circuit Board Connector, it ensures secure and stable electrical connections, making it an essential component in modern electronic devices that require compact and high-performance interconnectivity. This connector is engineered to meet the demanding requirements of high-density applications, providing exceptional durability and electrical performance.

One of the standout features of this Board To Board Connector is its impressive durability, rated for a minimum of 30 mating cycles. This durability ensures that the connector can withstand repeated connections and disconnections without compromising its performance or reliability. Such robustness is particularly important in applications where maintenance or upgrades may require frequent board replacements or adjustments. The connector's ability to maintain stable connections over numerous cycles makes it a dependable choice for both industrial and consumer electronics.

Voltage rating is another critical attribute of this Printed Circuit Board Connector. It is rated to handle voltages up to 250V, making it suitable for a wide range of electronic circuits that operate under various voltage conditions. This high voltage rating ensures safety and efficiency, protecting the connected circuits from electrical hazards while maintaining optimal performance. Whether used in low or moderately high voltage applications, this connector delivers consistent and reliable electrical continuity.

The Board To Board Connector is designed to perform reliably under extreme environmental conditions. It supports an ambient temperature range from -55ºC to +125ºC, allowing it to function effectively in harsh environments. This broad temperature tolerance makes the connector ideal for applications in automotive, aerospace, industrial, and outdoor electronic systems where temperature fluctuations can be significant. The connector’s resilience to temperature extremes ensures long-term stability and reliability, even in challenging operational environments.

Contact plating is a vital aspect of connector performance, directly affecting conductivity and resistance to corrosion. This connector offers options for gold plated or tin plated contacts. Gold plating provides superior corrosion resistance and excellent electrical conductivity, which is crucial for maintaining signal integrity and reducing contact resistance over time. Tin plating, on the other hand, offers a cost-effective alternative while still providing good conductivity and protection against oxidation. These plating options allow users to select the best fit for their specific application needs, balancing performance and cost considerations.

The terminal and post materials used in this Printed Circuit Board Connector are crafted from copper alloy, with gold plating over nickel. Copper alloy is chosen for its excellent electrical and thermal conductivity, ensuring efficient signal transmission and heat dissipation. The gold plating over nickel further enhances corrosion resistance and durability, preventing oxidation and wear that could degrade the connection quality. This combination of materials guarantees a robust and long-lasting connector that maintains high performance throughout its service life.

As a High Density Board Connector, this product is designed to maximize space efficiency on printed circuit boards. Its compact form factor allows for close board spacing without sacrificing connection reliability or electrical performance. This makes it particularly suitable for modern electronic devices where miniaturization and high component density are critical design considerations. The connector’s precision engineering ensures reliable mating alignment and secure locking mechanisms, which are essential for maintaining consistent connections in high-density configurations.

In summary, the Board To Board Connector is a superior Printed Circuit Board Connector solution that combines durability, high voltage capability, wide temperature tolerance, and excellent material quality. Its gold or tin plated contacts, along with copper alloy terminals plated with gold over nickel, ensure outstanding electrical performance and longevity. Ideal for high density board applications, this connector supports the evolving needs of advanced electronic systems, providing reliable and efficient interconnections that enhance overall device functionality and durability.

Features:

• Product Name: Board To Board Connector
• Type: Right Angle Board Connector
• Connector System: Board Mount Connector System
• Configuration: Dual Row Board Connector
• Withdrawal Force: 0.15N/PIN MIN
• Rating Current: Power Pin 3A/contact, Signal Pin 0.3A/contact (Max. 5A at Total Contact)
• Trial Order Quantity: 2000 Pcs
• Packaging: Embossed Tape Packaging suitable for Automated Pick And Place
• Fob Price: Get Latest Price

Technical Parameters:

Applications:

The LP-BTB018 Board To Board Connector, manufactured by LP in China, is a highly reliable PCB Board Interconnect Connector designed to meet the demanding needs of modern electronic assemblies. Certified under ISO-9001:2000 standards, this connector ensures superior quality and performance, making it an ideal choice for various industrial and commercial applications. With a current rating of up to 3A per contact and an insulation resistance of 1000MΩ minimum, the LP-BTB018 guarantees stable electrical connections even in high-performance environments.

This Surface Mount Board Connector is widely used in scenarios where efficient and secure board-to-board connections are essential. Its gold-plated or tin-plated contact plating options provide excellent conductivity and durability, ensuring long-lasting operation in devices such as communication equipment, consumer electronics, automotive electronics, and industrial control systems. The connector’s compact design and surface mount technology facilitate easy integration into densely populated PCBs, optimizing space without compromising connectivity.

The LP-BTB018 also supports automated assembly processes through its embossed tape packaging, which is compatible with automated pick and place machines. This feature significantly reduces assembly time and enhances production efficiency, making it suitable for mass production environments. With a supply ability of 100,000 pieces and a minimum order quantity of 1000 pieces, LP can readily support large-scale manufacturing demands, delivering products within 7 to 10 days to ensure timely project completion.

Additionally, the Board Mount Connector System is packaged thoughtfully in reels, tubes, or trays to accommodate various handling preferences and protect the connectors during transportation. The trial order option of 2000 pieces allows customers to evaluate the product thoroughly before committing to larger purchases. Flexible payment terms including T/T, Western Union, and L/C further facilitate smooth business transactions.

Overall, the LP-BTB018 Board To Board Connector stands out as a dependable and versatile solution for establishing secure electrical connections between PCB boards. Whether used in consumer electronics, automotive systems, or industrial machinery, it offers exceptional performance, ease of assembly, and cost-effectiveness at a competitive price of 0.06 per piece. This makes the LP-BTB018 an excellent choice for engineers and manufacturers seeking a high-quality Surface Mount Board Connector or Board Mount Connector System to enhance their product designs.

Customization:

LP's Board To Board Connector, model number LP-BTB018, is a high-quality Through Hole Board Connector designed to provide a reliable Electrical Board Connection Interface. Manufactured in China and certified with ISO-9001:2000, this connector ensures excellent performance and durability.

With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, LP offers flexible packaging options including Reel, Tube, and Tray to meet various customer needs. The delivery time is 7 to 10 days, supported by secure payment terms such as T/T, Western Union, and L/C.

Featuring a gold plated or tin plated contact plating, the connector guarantees superior conductivity and corrosion resistance. The housing material is made from LCP UL94V-0, while the insulator material is polyester, providing excellent heat resistance and insulation.

Designed for high-performance applications, this High Density Board Connector boasts a durability of at least 30 cycles and an insulation resistance of 1000MΩ minimum. With a supply ability of 100000PCS, LP ensures timely availability to support your production requirements.

Choose LP's LP-BTB018 Board To Board Connector for a dependable and efficient solution in your electronic assemblies, enhancing your electrical board connections with precision and quality.

Support and Services:

Our Board To Board Connector product is supported by a dedicated technical support team committed to ensuring seamless integration and optimal performance. We provide comprehensive services including product selection guidance, design assistance, and troubleshooting support to help you achieve the best results in your applications.

Technical documentation, including datasheets, application notes, and installation guides, are available to assist you in understanding the product specifications and proper usage. Our experts are also available to offer advice on customizing connector configurations to meet specific design requirements.

For any technical inquiries or support needs, we recommend reviewing the provided documentation first. Should you require further assistance, our technical support team is ready to help resolve any issues related to product compatibility, electrical performance, or mechanical fit.

We are committed to continuous improvement and welcome feedback on our Board To Board Connector products to enhance future designs and support services. Our goal is to provide reliable connectors and exceptional service to ensure your project success.

Packing and Shipping:

Each Board To Board Connector is carefully packaged to ensure maximum protection during transit. The connectors are placed in anti-static bags to prevent any electrostatic discharge damage, followed by secure cushioning materials to avoid physical impact. Multiple units are then packed into sturdy cardboard boxes, clearly labeled with product information and handling instructions.

For shipping, we use reliable carriers to deliver the products safely and on time. Tracking information is provided for all shipments to keep customers informed of their order status. Depending on the destination and order volume, various shipping options are available, including standard, expedited, and express delivery services.

We also offer customized packaging solutions upon request to meet specific customer requirements. Our goal is to ensure that every Board To Board Connector reaches you in perfect condition, ready for immediate use.
