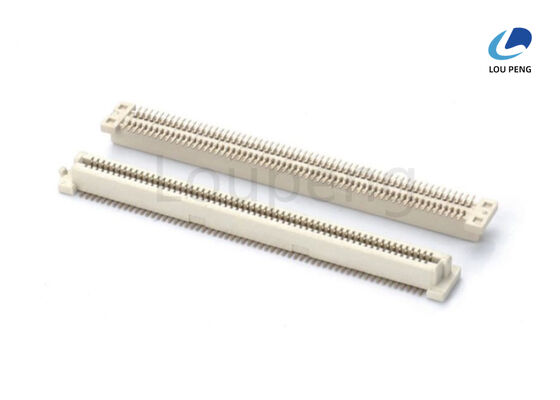

Polyester Insulator Material Electrical Board Connection Interface Incorporating Gold Plated Contact Plating for Signal Transmission

Product Description:

The Board To Board Connector is a high-performance Board Mount Connector System designed to facilitate reliable and efficient electrical connections between two printed circuit boards. Engineered with precision and quality materials, this connector ensures optimal performance in a variety of electronic applications, making it an indispensable component in modern electronic assemblies.

One of the standout features of this Board To Board Connector is its robust mechanical characteristics. The insertion force is rated at a maximum of 1.5N per pin, with a total maximum insertion force not exceeding 40N. This ensures that the connector can be easily mated without requiring excessive force, protecting both the connector and the boards during assembly. Additionally, the withdrawal force is guaranteed to be at least 0.15N per pin, providing a secure and stable connection that resists accidental disconnection during operation.

This connector is available in a variety of plastic heights, catering to diverse design requirements and board layouts. The plastic high options include H=5.0mm, 3.0mm, 1.28mm, 1.5mm, 2.0mm, 2.5mm, 3.7mm, 7.7mm, 6.0mm, 6.5mm, 6.6mm, 7.0mm, 4.0mm, 3.3mm, 7.8mm, 9.75mm, and 14.5mm. This wide range of heights allows engineers to select the precise connector dimension that best fits their specific board spacing and mechanical constraints, ensuring a perfect fit and reliable connectivity in complex electronic assemblies.

The terminal and post materials are crafted from high-quality copper alloy, which is further enhanced with gold plating over nickel. This combination provides excellent electrical conductivity and corrosion resistance, ensuring long-term durability and stable signal transmission. The gold plating helps to minimize contact resistance and improve the overall reliability of the connector, making it suitable for demanding environments and applications where signal integrity is critical.

Moreover, the Board To Board Connector supports Embossed Tape Packaging, which is compatible with automated pick-and-place machinery. This feature significantly streamlines the manufacturing process, enabling high-speed, high-precision assembly lines to efficiently place the connectors onto printed circuit boards. The automated packaging format reduces handling errors, increases production throughput, and lowers manufacturing costs, making it an attractive choice for mass production scenarios.

This product is classified as a Dual Row Board Connector, providing a compact yet robust interface that allows for increased pin density while maintaining a manageable footprint on the PCB. The dual-row configuration enhances the connector’s electrical and mechanical performance, ensuring stable and secure connections even in applications where space is limited and reliability is paramount.

Furthermore, the connector is designed as a Through Hole Board Connector, which offers superior mechanical strength compared to surface-mount alternatives. Through hole mounting provides enhanced durability and resistance to mechanical stresses such as vibration and shock, making this connector ideal for industrial, automotive, and other demanding applications where reliability under harsh conditions is essential.

In summary, the Board To Board Connector is a versatile and reliable solution within the Board Mount Connector System category. Its carefully engineered insertion and withdrawal forces, extensive plastic height options, premium copper alloy terminals with gold plating, and compatibility with automated pick-and-place processes make it a top choice for engineers seeking dependable inter-board connections. The dual row and through hole design further enhance its mechanical stability and electrical performance, ensuring that it meets the rigorous demands of modern electronic devices and systems.

Features:

• Product Name: Board To Board Connector
• Packing: Reel
• Withdrawal Force: 0.15N/pin minimum
• Voltage Rating: Up to 250V
• Contact Resistance: Power Pin 20mΩ max, Signal Pin 50mΩ max
• Product Use: Office Equipment
• High Density Board Connector design for compact applications
• Board Mount Connector System ensuring reliable connections
• Ideal for High Density Board Connector applications in office equipment

Technical Parameters:

This Surface Mount Board Connector is an ideal PCB Board Interconnect Connector featuring a Dual Row Board Connector design, ensuring reliable electrical performance and durability.

Applications:

The LP-BTB014 Board To Board Connector, manufactured by LP in China, is a high-quality Right Angle Board Connector designed to meet the demanding requirements of modern electronics. With ISO-9001:2000 certification ensuring superior quality standards, this Dual Row Board Connector is ideal for use in various electronic assembly applications where reliable and efficient board-to-board connections are essential.

Featuring a pitch of 0.5mm, 0.8mm, or 1.0mm, the LP-BTB014 offers flexibility to suit different design needs. Its impressive contact resistance specifications — power pins at a maximum of 20mΩ and signal pins at a maximum of 50mΩ — guarantee excellent electrical performance, making it perfect for applications requiring stable power and signal transmission. The Board Mount Connector System is engineered for durability, with a minimum of 30 mating cycles, ensuring long-lasting reliability in both consumer and industrial products.

This connector system is widely applied in various scenarios, including telecommunications, computing devices, industrial control equipment, medical devices, and automotive electronics. Its compact right angle design allows for space-saving PCB layouts while maintaining strong mechanical and electrical connections. The LP-BTB014 is especially suitable for compact devices where board stacking or parallel board connections are necessary.

Packaging options such as reel, tube, or tray offer convenience for automated assembly lines, improving manufacturing efficiency. With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, this product is well-suited for both small and large volume production runs. The competitive price of $0.06 per piece, combined with flexible payment terms including T/T, Western Union, and L/C, makes it an attractive choice for manufacturers worldwide.

Delivery time ranges from 7 to 10 days, ensuring timely availability for urgent projects. Additionally, the LP-BTB014 provides excellent insulation resistance of 1000MΩ minimum, enhancing safety and performance in various electronic environments. Overall, the LP Board To Board Connector LP-BTB014 is an ideal solution for engineers seeking a reliable, efficient, and cost-effective Board Mount Connector System with the added benefits of right angle and dual row configurations.

Customization:

Introducing the LP Board To Board Connector, model number LP-BTB014, a high-quality PCB Board Interconnect Connector designed and manufactured in China. Certified under ISO-9001:2000, this product ensures reliability and superior performance for your electronic assembly needs.

Our Board To Board Connector supports various pitch options including 0.5mm, 0.8mm, and 1.0mm, making it versatile for different PCB layouts. With a voltage rating of up to 250V and a dielectric withstanding voltage of 250V AC for one minute, it guarantees safety and durability in operation.

The Through Hole Board Connector is available in multiple packaging formats such as Reel, Tube, and Tray to suit your manufacturing requirements. We maintain a supply ability of up to 100,000 pieces, with a minimum order quantity of 1,000 pieces at a competitive price of $0.06 per unit.

Delivery is prompt within 7 to 10 days, and we accept various payment terms including T/T, Western Union, and L/C. Choose the LP Board To Board Connector for a dependable PCB Board Interconnect Connector solution that meets stringent quality standards and supports efficient production workflows.

Support and Services:

Our Board To Board Connector product is designed to provide reliable and high-performance connections between printed circuit boards in various electronic applications. For technical support, we offer comprehensive assistance including product selection guidance, application engineering, and troubleshooting services to ensure optimal integration and functionality.

We provide detailed product datasheets, application notes, and design resources to help you incorporate our Board To Board Connectors effectively into your projects. Our technical support team is equipped to assist with questions related to electrical specifications, mechanical compatibility, and environmental considerations.

Additionally, we offer customized solutions and modifications to meet specific design requirements. Our services include prototype support, testing, and validation to guarantee product performance in your intended application.

For ongoing support, we maintain a knowledge base and FAQs to address common issues and provide best practices. We are committed to delivering prompt and effective service to help you achieve success with our Board To Board Connector products.

Packing and Shipping:

The Board To Board Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in an anti-static bag to prevent any electrostatic discharge damage. The connectors are then securely packed in a sturdy cardboard box with adequate cushioning materials to avoid any physical damage.

For shipping, we use reliable carriers that provide tracking and insurance options to guarantee safe and timely delivery. The packaging is labeled clearly with product information and handling instructions to facilitate smooth logistics. Bulk orders are palletized and wrapped to maintain stability and protection throughout the shipping process.
