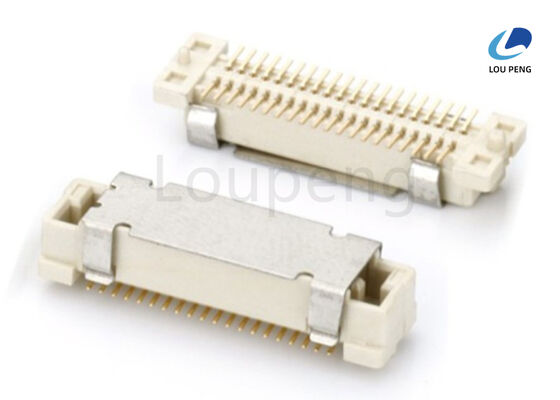

Insertion Force 1.5N Per Pin Max 40N Max Total Board To Board Connector Copper Alloy Terminal And Post Material Rows 2

Product Description:

The Board To Board Connector is an essential component designed to facilitate reliable electrical connections between two printed circuit boards (PCBs). Engineered with precision and durability in mind, this connector is ideal for applications requiring compact and efficient board stacking solutions. Its versatility makes it a preferred choice in various electronic devices, offering exceptional performance across a wide range of industries.

One of the standout features of this product is its availability in multiple pitch options, including 0.5mm, 0.8mm, and 1.0mm. These pitch variations provide flexibility for different design requirements, allowing engineers to select the optimal spacing for their specific application. This adaptability ensures seamless integration into diverse PCB layouts, enhancing the overall design efficiency and reliability.

The housing material of the Board To Board Connector is constructed from Liquid Crystal Polymer (LCP) rated UL94V-0, a high-performance material known for its excellent mechanical strength and outstanding flame-retardant properties. This ensures that the connector maintains its structural integrity and safety standards even under demanding conditions. The robust housing contributes significantly to the longevity and dependability of the connector in various operational environments.

Designed to operate effectively within a broad ambient temperature range from -55ºC to +125ºC, the Board To Board Connector is well-suited for use in both extreme cold and high-temperature environments. This wide temperature tolerance makes it ideal for applications in automotive, industrial, and outdoor electronics where temperature fluctuations are common. Users can trust this connector to deliver consistent performance regardless of environmental challenges.

With a voltage rating of up to 250V, this connector supports a wide range of electrical applications, ensuring safe and efficient transmission of electrical signals and power between boards. This capability is particularly important in complex electronic assemblies where high voltage handling is necessary without compromising connector safety or performance.

The product also features a reliable Stackable Board Connector Assembly design, which enables multiple boards to be connected in a compact, stacked configuration. This assembly method not only saves valuable space within electronic devices but also simplifies the overall assembly process. The Stackable Board Connector Assembly is engineered to provide strong mechanical and electrical connections, reducing the risk of disconnections or signal loss during operation.

In addition to the stackable design, the Board To Board Connector is available as a Right Angle Board Connector variant. This right-angle configuration is especially beneficial when space constraints require connectors to be mounted perpendicular to the board surface. It offers flexibility in PCB layout design, enabling more efficient use of space and better routing of electrical paths within the device.

For delivery, this product supports multiple shipment methods including Air Shipment, Sea Shipment, UPS, FEDEX, and DHL, ensuring that customers worldwide can receive their orders promptly and reliably. The availability of various delivery options accommodates different urgency levels and logistical preferences, making procurement convenient and efficient.

In summary, the Board To Board Connector is a high-quality, versatile solution for electrical interconnections between PCBs. Its range of pitches, robust LCP housing, wide temperature tolerance, and high voltage rating make it suitable for demanding applications across multiple industries. The stackable design and right-angle variants provide additional flexibility for space-saving and efficient PCB assembly. Combined with multiple delivery options, this connector is a dependable choice for engineers and manufacturers seeking reliable board-to-board connectivity.

Features:

• Product Name: Board To Board Connector
• Application: Office Equipment
• Type: Board Mount Connector System
• Mounting Style: Surface Mount Board Connector
• Configuration: 2 Rows
• Voltage Rating: Up To 250V
• Compatible With: Printed Circuit Board Connector applications
• FOB Price: Get Latest Price

Technical Parameters:

Applications:

The LP Board To Board Connector, model number LP-BTB017, is a high-quality PCB Board Interconnect Connector designed and manufactured in China by the reputable brand LP. Certified under ISO-9001:2000, this connector guarantees exceptional reliability and performance, making it an ideal choice for various electronic applications requiring robust and efficient electrical connections between printed circuit boards.

This Stackable Board Connector Assembly is engineered with precision using copper alloy terminals and post material, enhanced by gold plating over nickel to ensure excellent conductivity and resistance to corrosion. With a contact resistance of only 20mΩ max for power pins and 50mΩ max for signal pins, it provides a stable and low-resistance Electrical Board Connection Interface. The LP-BTB017 supports a voltage rating of 50V, making it suitable for a wide range of electronic devices and systems.

In practical applications, the Board To Board Connector is widely used in industries such as consumer electronics, telecommunications, automotive, industrial control systems, and medical devices. Its compact and stackable design enables efficient vertical or horizontal connections between PCBs, optimizing space and enhancing modularity in complex electronic assemblies. This makes it particularly valuable in scenarios where multiple circuit boards need to be interconnected securely and reliably without compromising signal integrity.

The connector is available with flexible packaging options including reel, tube, and tray to accommodate different manufacturing needs. With a minimum order quantity of 1000PCS and a competitive price of 0.06 USD per piece, it is an economical solution for mass production. The supply ability of 100,000PCS and a delivery time of 7 to 10 days ensure timely fulfillment of orders. Payment terms are flexible, accepting T/T, Western Union, and L/C, catering to diverse customer preferences.

Overall, the LP-BTB017 Board To Board Connector offers a dependable and efficient solution for creating electrical connections between circuit boards. Whether in prototyping or large-scale production, its high-quality materials, precision engineering, and versatile packaging options make it an excellent choice for any project requiring a reliable PCB Board Interconnect Connector and Electrical Board Connection Interface.

Customization:

Introducing the LP Board To Board Connector, model number LP-BTB017, a high-quality Board Mount Connector System designed for reliable and efficient connectivity. Manufactured in China and certified with ISO-9001:2000, this product guarantees excellent standards and durability.

The LP-BTB017 is a versatile Through Hole Board Connector that supports a wide range of plastic heights including H=5.0mm, 3.0mm, 1.28mm, 1.5mm, 2.0mm, 2.5mm, 3.7mm, 7.7mm, 6.0mm, 6.5mm, 6.6mm, 7.0mm, 4.0mm, 3.3mm, 7.8mm, 9.75mm, and 14.5mm, making it adaptable to various board configurations.

This High Density Board Connector is rated for voltages up to 250V, with a specific voltage rating of 50V, ensuring safe and stable performance in office equipment applications. It features a minimum withdrawal force of 0.15N per pin, providing secure contact and connection integrity.

We offer flexible packaging options including Reel, Tube, and Tray to suit your production needs. The minimum order quantity is 1000PCS, priced competitively at 0.06 per unit. Our supply ability supports up to 100,000PCS, with delivery times ranging from 7 to 10 days.

Payment terms include T/T, Western Union, and L/C, ensuring a smooth and secure transaction process. Choose the LP-BTB017 Board To Board Connector for your next project and experience superior quality and performance in your Board Mount Connector System solutions.

Support and Services:

Our Board To Board Connector product is designed to provide reliable and high-performance connections between printed circuit boards. For technical support and services, we offer comprehensive assistance including product selection guidance, application advice, and troubleshooting support to ensure optimal performance in your designs.

We provide detailed product documentation, including datasheets, application notes, and installation guidelines to help you integrate our connectors seamlessly into your projects. Our engineering team is available to assist with custom requirements and to address any specific challenges you may encounter.

To enhance your experience, we also offer training sessions and webinars on connector technology and best practices. Additionally, our quality assurance services ensure that all products meet stringent industry standards for durability and reliability.

For warranty and repair services, please refer to the terms and conditions provided with your product purchase. We are committed to delivering exceptional customer support to ensure your complete satisfaction with our Board To Board Connector solutions.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent any damage from electrostatic discharge. The connectors are then placed in sturdy, cushioned boxes to avoid any physical impact or deformation.

For shipping, we use reliable and trackable courier services to guarantee timely and safe delivery. Multiple packaging options are available depending on the order size, including bulk packaging for large orders with additional protective materials. We also offer customized packaging solutions upon request to meet specific customer requirements.

All shipments are accompanied by detailed documentation, including packing lists and product specifications, to facilitate smooth customs clearance and inventory management.
