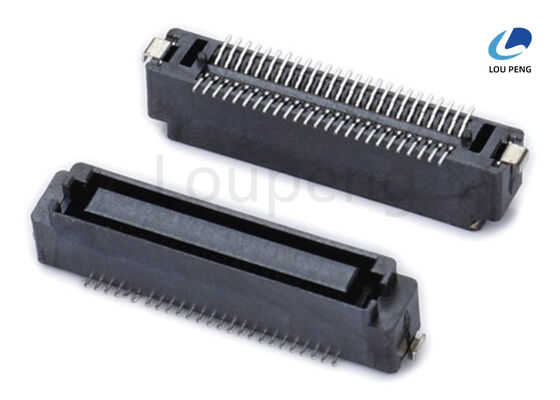

Polyester Insulator Material Board To Board Connector Designed with 2 Rows Offering Electrical Connectivity and Long Term Stability

Product Description:

The Board To Board Connector is a highly reliable and versatile component designed to facilitate seamless electrical connections between two printed circuit boards (PCBs). Engineered to meet the demanding requirements of modern electronic devices, this connector offers exceptional performance in a compact and efficient design. With a current rating of up to 3A per contact, it supports robust power delivery while ensuring signal integrity, making it ideal for applications requiring both power and data transmission within a single connector.

This connector features a dual-row configuration, providing a balanced and organized layout that optimizes space utilization on the PCB. The two-row design allows for an increased number of contacts within a limited footprint, which is essential for high-density electronic assemblies. Each power pin in the connector is rated for 3A per contact, ensuring reliable power connections, while the signal pins support up to 0.3A per contact, with a maximum total current capacity of 5A across all contacts. This combination of power and signal handling capabilities makes the Board To Board Connector suitable for a wide range of electronic applications, from consumer electronics to industrial equipment.

One of the standout features of this product is its availability in multiple pitch sizes, including 0.5mm, 0.8mm, and 1.0mm. This variety allows designers to select the most appropriate pitch based on their specific space constraints and electrical requirements. The smaller pitch options are particularly beneficial for miniaturized devices where board space is at a premium, while the larger pitch options provide enhanced durability and ease of assembly.

Designed primarily as a Surface Mount Board Connector, this product supports automated assembly processes, ensuring high production efficiency and consistent quality. The surface mount technology (SMT) compatibility also enhances mechanical stability and reduces the overall height profile of the assembled device, which is crucial in compact electronic systems.

Additionally, the Board To Board Connector comes in a convenient reel packaging format. This packaging is optimized for automated pick-and-place machines, enabling streamlined manufacturing workflows and minimizing handling damage. The reel format supports efficient inventory management and reduces waste, making it an environmentally and economically sound choice for manufacturers.

The connector's right angle orientation is specifically engineered to facilitate perpendicular PCB connections, which is a common requirement in multilayered or stacked circuit board assemblies. This Right Angle Board Connector design aids in simplifying the mechanical and electrical integration of complex electronic systems, improving both reliability and serviceability.

In summary, this Printed Circuit Board Connector offers a perfect blend of electrical performance, mechanical design, and manufacturing compatibility. Its high current rating of up to 3A per power contact, dual-row configuration, multiple pitch options, and right angle design make it a versatile solution for various electronic applications. Whether you are designing compact consumer gadgets or robust industrial equipment, this Board To Board Connector provides a dependable and efficient means of interconnecting PCBs with high performance and reliability.

Features:

• Product Name: Board To Board Connector
• High Density Board Connector for efficient space utilization
• Board Mount Connector System ensuring secure and reliable connections
• Voltage Rating: Up to 250V for versatile applications
• Ambient Temperature Range: -55ºC to +125ºC for high durability
• Embossed Tape Packaging suitable for Automated Pick and Place processes
• Delivery Methods: Air Shipment, Sea Shipment, UPS, FEDEX, DHL

Technical Parameters:

Applications:

The LP Board To Board Connector, model number LP-BTB019, is an essential component for various electrical and electronic applications, providing a reliable Electrical Board Connection Interface. Manufactured in China and certified with ISO-9001:2000, this connector ensures high quality and consistency, meeting the rigorous demands of modern electronic assembly.

Designed as a Right Angle Board Connector, the LP-BTB019 is ideal for applications where space-saving and efficient board layout are critical. Its two-row configuration allows for dense and secure connections between circuit boards, making it an excellent choice for compact and complex electronic devices. The connector supports a contact resistance of up to 20mΩ for power pins and 50mΩ for signal pins, ensuring stable electrical performance essential for high-speed and high-reliability applications.

The product is suitable for Surface Mount Board Connector applications, enabling automated pick-and-place assembly thanks to its embossed tape packaging. This feature makes it highly compatible with modern manufacturing processes, helping to reduce labor costs and improve production efficiency. With a maximum insertion force of 1.5N per pin and a total maximum force of 40N, the connector guarantees ease of use while maintaining firm and durable connections.

Applications for the LP-BTB019 Board To Board Connector span various industries, including consumer electronics, telecommunications, automotive electronics, industrial control systems, and medical devices. It is commonly used in motherboards, display modules, power supplies, and other devices requiring robust board-to-board connections. The right-angle design is particularly advantageous in situations where vertical space is limited, or where boards must be connected at 90 degrees for optimal signal integrity and mechanical stability.

With a supply ability of 100,000 pieces and a minimum order quantity of 1,000 pieces, LP offers competitive pricing at $0.06 per unit. Packaging options include reel, tube, and tray, catering to different assembly line requirements. Delivery times range from 7 to 10 days, with flexible payment terms such as T/T, Western Union, and L/C, making it convenient for global customers seeking reliable and efficient procurement.

Overall, the LP-BTB019 Board To Board Connector is a versatile and dependable solution for designers and manufacturers looking for a high-quality Electrical Board Connection Interface that supports right-angle and surface mount applications. Its combination of precision engineering, certification, and optimized packaging makes it a preferred choice for modern electronic product assembly and integration.

Customization:

LP brand offers the Board To Board Connector, model number LP-BTB019, a high-quality Printed Circuit Board Connector designed for reliable performance in various electronic applications. Manufactured in China and certified with ISO-9001:2000, this Board Mount Connector System ensures stringent quality standards and durability.

With a high density board connector configuration featuring 2 rows, the connector is made from premium LCP housing material with UL94V-0 rating, ensuring flame retardancy and long-lasting use. It provides a minimum withdrawal force of 0.15N per pin, guaranteeing secure connections in demanding environments.

Our LP-BTB019 Board To Board Connector is supplied with flexible packaging options including reel, tube, and tray, with reel packing as standard, facilitating easy integration and handling. The product is offered at a competitive price of $0.06 per piece with a minimum order quantity of 1000 PCS.

We maintain a strong supply ability of 100,000 PCS, ensuring prompt fulfillment of orders with a delivery time frame of 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C. Delivery methods include air shipment, sea shipment, UPS, FEDEX, and DHL, providing convenience and reliability in logistics.

Choose the LP-BTB019 Board To Board Connector for your next project to benefit from a trusted Printed Circuit Board Connector solution that balances high density, robust construction, and efficient delivery, perfect for your Board Mount Connector System needs.
