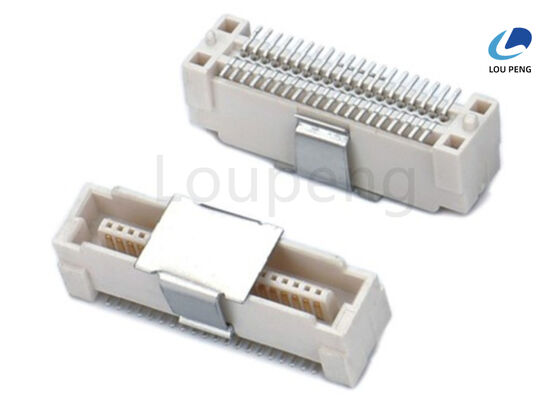

Contact Resistance Signal Pin 50mΩ Max Printed Circuit Board Connector Suitable for Ambient Temperature Range -55ºC to 125ºC Durable Performance

Product Description:

The Board To Board Connector is an essential component designed to facilitate seamless electrical connections between printed circuit boards (PCBs). This Stackable Board Connector Assembly is engineered to provide a reliable and efficient Electrical Board Connection Interface, making it ideal for a wide range of electronic applications where secure and stable board-to-board connections are crucial. With a voltage rating of up to 250V, this connector ensures optimal performance in various electrical environments, supporting both low and moderate voltage requirements with ease and safety.

Constructed with high-quality polyester as the insulator material, the Board To Board Connector offers excellent resistance to heat, moisture, and electrical stress. Polyester's robust insulating properties contribute significantly to the connector’s overall durability and reliability, ensuring that the electrical connection remains stable under different operating conditions. This material choice also enhances the connector’s lifespan, making it a dependable solution for long-term electronic projects and industrial applications.

The connector features a dual-row configuration, with 2 rows designed to maximize connection density while maintaining a compact footprint. This arrangement allows for efficient use of space on the PCB, facilitating complex circuit designs without compromising on connectivity or structural integrity. The 2-row design also supports a variety of pin configurations, making the Stackable Board Connector Assembly highly adaptable to diverse electronic setups.

Durability is a key attribute of this connector, with a minimum endurance rating of 30 cycles. This means the connector can withstand at least 30 mating and unmating cycles without degradation in performance, ensuring consistent electrical contact and mechanical stability throughout its use. This level of durability is particularly beneficial in applications where boards may need to be frequently connected and disconnected for maintenance, upgrades, or testing purposes.

For manufacturers and engineers considering bulk procurement, the Board To Board Connector is available with a trial order quantity of 2000 pieces. This quantity is ideal for pilot production runs, prototype development, and initial deployment phases, allowing users to evaluate the connector’s performance and integration within their systems before committing to larger orders. The availability of such a trial order ensures flexibility and supports efficient project planning and budgeting.

As a Stackable Board Connector Assembly, this product not only provides electrical connectivity but also supports modular design approaches. Its stackable nature allows multiple boards to be connected vertically, saving valuable space and enabling more compact and organized electronic assemblies. This capability is especially useful in applications such as telecommunications, computing, industrial control systems, and consumer electronics, where space optimization and reliable inter-board communication are paramount.

In summary, the Board To Board Connector stands out as a high-quality, reliable Electrical Board Connection Interface designed to meet the demands of modern electronic assemblies. Its voltage rating of up to 250V, durable polyester insulation, 2-row configuration, and minimum 30-cycle durability make it a versatile and robust choice for a variety of applications. The option for a trial order of 2000 pieces further enhances its appeal by providing an entry point for evaluation and integration. Whether used in industrial, commercial, or consumer electronics, this Stackable Board Connector Assembly offers a dependable solution for establishing secure and efficient board-to-board connections, supporting the advancement of compact and modular electronic designs.

Features:

• Product Name: Board To Board Connector
• Housing Material: LCP UL94V-0 for high flame retardancy
• Fob Price: Get Latest Price
• Rows: 2 for reliable connections
• Withdrawal Force: 0.15N/PIN minimum ensuring secure contact
• Dielectric Withstanding Voltage: 250V AC for one minute for excellent insulation
• Designed as a Stackable Board Connector Assembly for flexible configurations
• Suitable for use as a Through Hole Board Connector offering strong mechanical support

Technical Parameters:

Applications:

The LP-BTB020 Board To Board Connector, proudly made in China and certified with ISO-9001:2000, is an ideal solution for a wide range of product application occasions and scenarios requiring reliable and efficient electrical board connection interfaces. As a stackable board connector assembly, this product is designed to facilitate seamless connections between multiple printed circuit boards (PCBs) in various electronic devices and systems. Its versatility makes it highly suitable for use in consumer electronics, industrial automation, telecommunications, automotive electronics, and medical equipment, where compact, durable, and high-performance board-to-board connections are essential.

The LP-BTB020 excels as a through hole board connector, providing secure mechanical and electrical connections in environments that demand robustness and stability. Thanks to its excellent contact resistance performance—20mΩ max for power pins and 50mΩ max for signal pins—this connector ensures minimal signal loss and reliable current flow up to 3A per contact. Its broad ambient temperature range, from -55ºC to +125ºC, enables it to operate efficiently in extreme temperature conditions, making it suitable for harsh industrial and outdoor applications.

With a plastic height variety ranging from 1.28mm to 14.5mm, the LP-BTB020 offers design flexibility to meet diverse spacing and stacking requirements in multilayer PCB assemblies. It is perfect for applications where space optimization and precise board alignment are critical. The product comes with packaging options including reel, tube, and tray, supporting efficient handling and assembly processes in large-scale manufacturing environments. With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, it caters to both small and high-volume production needs.

Furthermore, LP ensures a strong supply ability of 100,000PCS with a delivery time frame of 7 to 10 days, backed by multiple payment terms such as T/T, Western Union, and L/C. The delivery methods include air shipment, sea shipment, UPS, FEDEX, and DHL, providing flexible logistics solutions to meet global customer demands. Whether used in compact consumer gadgets or complex industrial machinery, the LP-BTB020 Board To Board Connector stands out as a dependable choice for creating efficient, stackable board connector assemblies and robust electrical board connection interfaces.

Customization:

LP proudly presents the Board To Board Connector, model number LP-BTB020, a reliable Board Mount Connector System designed to meet your electrical connection needs. Manufactured in China and certified with ISO-9001:2000, this product ensures high-quality standards and durability.

Our Stackable Board Connector Assembly features 2 rows and various plastic heights ranging from 1.28mm up to 14.5mm, allowing flexible design options for your Electrical Board Connection Interface. The housing material is made from LCP with UL94V-0 rating, guaranteeing excellent flame retardance and safety.

With a durability of at least 30 cycles, the LP-BTB020 connector supports robust and long-lasting connections. We offer a minimum order quantity of 1000PCS at a competitive price of $0.06 per unit, packaged conveniently in Reel, Tube, or Tray formats to suit your production requirements.

Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C for your convenience. Delivery options are comprehensive, including Air Shipment, Sea Shipment, UPS, FEDEX, and DHL to ensure timely receipt of your orders.

Choose the LP-BTB020 Board To Board Connector for a dependable and efficient Board Mount Connector System that enhances your Stackable Board Connector Assembly and optimizes your Electrical Board Connection Interface.

Support and Services:

Our Product Technical Support and Services for the Board To Board Connector include comprehensive assistance to ensure optimal performance and integration. We provide detailed product documentation, application guidelines, and design support to help you select the right connector for your project. Our engineering team is available to offer technical advice on installation, compatibility, and troubleshooting.

We also offer customization services to meet specific design requirements, including variations in pitch, pin count, and plating options. Quality assurance testing and validation support are available to guarantee reliability in your application environment.

For ongoing support, we provide firmware updates when applicable, repair services, and replacement parts to minimize downtime. Our commitment is to deliver prompt and effective solutions to support your product lifecycle and ensure customer satisfaction.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. These bags are then securely packed in sturdy, cushioned boxes to avoid any physical impact.

For shipping, we offer multiple options to suit your needs, including standard ground shipping, expedited air freight, and international delivery. All shipments are tracked and insured to guarantee safe and timely arrival at your destination.

Bulk orders are palletized and shrink-wrapped for added stability and protection. We also provide custom packaging solutions upon request to accommodate specific requirements.

Our commitment is to deliver your Board To Board Connectors in perfect condition, ready for immediate use in your applications.
