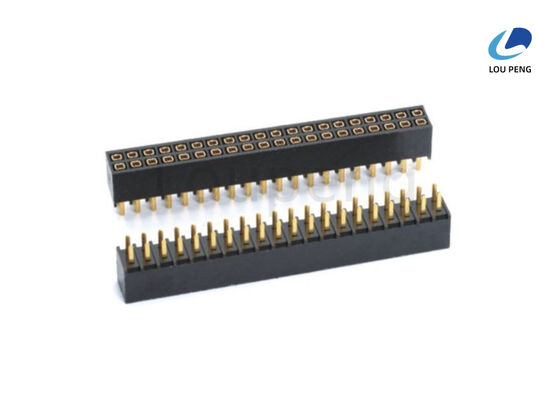

PA6T Standard Female Pin Header Connector Featuring 1.5 Amps Current Rating Ensuring Connection in Electronic Assemblies

Product Description:

The Female Header Connector is an essential component widely used in electronic assemblies, providing reliable and secure connections between various circuit elements. Designed to accommodate different mounting preferences, this connector is available in both Through Hole and Surface Mount Technology (SMT) configurations, offering great flexibility for diverse design requirements. Whether you are working on a prototype or a high-volume production line, the Female Header Connector ensures ease of integration and dependable performance.

One of the standout features of this Female Header Connector is its low contact resistance, which is rated at a maximum of 30 milliohms (mΩ). This low resistance value ensures minimal signal loss and reliable electrical conductivity, making it ideal for applications where signal integrity and power efficiency are critical. The high-quality contact materials and precision manufacturing processes contribute to the connector’s excellent electrical characteristics, ensuring consistent performance over time.

Additionally, the insulation resistance of this connector is rated at a minimum of 1000 megaohms (MΩ). This high insulation resistance is crucial for preventing unwanted current leakage between contacts, thus enhancing the safety and reliability of your electronic circuits. The robust insulation properties also make the Female Header Connector suitable for use in sensitive electronic applications where maintaining isolation between different signal paths is essential.

Operating reliably across a wide temperature range from -40 ℃ to +105 ℃, this Female Header Connector is designed to withstand harsh environmental conditions without compromising its performance. This broad working temperature range makes it suitable for use in various industries, including automotive, industrial control systems, consumer electronics, and telecommunications. Whether your application involves exposure to extreme cold or elevated temperatures, this connector will maintain its mechanical integrity and electrical functionality.

The versatility of this connector is notable, as it is commonly used in a wide range of applications and configurations. The Female Wire Header Connector variant is especially popular for connecting wires directly to printed circuit boards (PCBs), facilitating easy and secure wire-to-board connections in many electronic devices. Meanwhile, the Female Board Header Connector is designed to interface with male board headers, providing a straightforward method to connect two PCBs together or to modular components within a system. The Female Inline Header Connector offers a convenient inline connection option, often utilized in cable assemblies or where space constraints require a compact and efficient connector solution.

Manufacturers and engineers value the Female Header Connector for its combination of robust mechanical design, excellent electrical properties, and flexible mounting options. Its through-hole and SMT mounting types cater to different assembly processes, allowing for both traditional soldering and modern automated pick-and-place production lines. This adaptability reduces manufacturing complexity and cost, while maintaining high reliability standards.

In summary, the Female Header Connector is a versatile, high-performance connector solution that meets the demanding needs of modern electronic designs. With its low contact resistance of 30mΩ maximum, high insulation resistance of at least 1000MΩ, and broad operating temperature range from -40 ℃ to +105 ℃, it ensures stable and efficient electrical connections under various conditions. Its availability in Through Hole and SMT mounting types, along with its adaptability as a Female Wire Header Connector, Female Board Header Connector, and Female Inline Header Connector, makes it an indispensable component in countless electronic applications. Whether you are designing complex circuit boards or simple wire-to-board connections, this connector offers the reliability and versatility required for today's dynamic electronic environments.

Features:

• Product Name: Female Header Connector
• Also known as Female Socket Header Connector
• Max. Processing Temperature: 230℃ for 30-60 seconds (260℃ for 5 seconds)
• Housing Material: Polyester (UL94V-0 rated)
• Plastic Material: PA6T with 30% Glass Fiber
• Available Pins: 2 to 40 Pin options
• Versatility: Usually suitable for various applications
• Includes Female Connector Header Pin for reliable connections

Technical Parameters:

Applications:

The LP Female Header Connector, model LP-FH033, is a versatile and reliable component designed for a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this product ensures high quality and consistency, making it ideal for both industrial and consumer electronics. With a current rating of 1.5 Amps and available in configurations ranging from 2 to 40 pins, the Female Header Socket Connector can accommodate various circuit design requirements.

These Female Header Pin Connectors come in multiple types including Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and Three Rows, providing flexibility for different PCB layouts. The connectors are made from durable PA6T material, ensuring excellent mechanical strength and thermal resistance, which is critical in high-performance electronic assemblies.

The LP-FH033 Female PCB Header Connector is widely used in occasions such as computer motherboards, communication devices, automotive electronics, industrial control systems, and consumer electronics. Its compact design and reliable connection make it suitable for scenarios where space-saving and secure electrical contact are paramount. For example, in industrial automation, these connectors facilitate quick installation and maintenance of control panels and circuit boards. In consumer electronics, they provide robust connections for devices like smart home appliances and wearable technology.

Packaging options such as Reel, Tube, Tray, and Polybag cater to different production line requirements, enhancing convenience during automated assembly processes. The minimum order quantity is set at 1000PCS, with a competitive price of 0.0001 per unit, making it an economical choice for large-scale manufacturing. Delivery time ranges from 7 to 10 days, supported by flexible payment terms including T/T, Western Union, and L/C, ensuring smooth procurement for businesses.

With a supply ability of 100,000PCS, the LP Female Header Connector is well-suited for mass production environments. The product is supported by the Openresty server, ensuring efficient order processing and customer service. Whether you need connectors for prototyping or full-scale production, the LP-FH033 Female Header Socket Connector offers a dependable solution for your electronic connectivity needs.

Customization:

Our Female Header Connector, branded as LP with model number LP-FH033, is designed and manufactured in China, ensuring high quality and reliability. Certified under ISO-9001:2000, this Female Pin Header Connector meets rigorous industry standards.

We offer product customization services to meet your specific needs, with a minimum order quantity of 1000PCS and a competitive price starting at 0.0001 per unit. The Female Connector Header Pin is made from high-quality PA6T+30% Glass Fiber material, featuring a durable polyester (UL94V-0) housing for excellent insulation and safety.

The contact resistance of this Female Header Socket Connector is maintained at a maximum of 30mΩ, supporting a current rating of 1.5 Amps. The plating options include Gold or Tin to ensure optimal conductivity and corrosion resistance.

Packaging options are flexible, including Reel, Tube, Tray, or Polybag, tailored to your requirements. Our supply ability is strong, with up to 100000PCS available, and a typical delivery time of 7 to 10 days after order confirmation.

We accept multiple payment terms such as T/T, Western Union, and L/C to facilitate smooth transactions. Choose our customizable Female Pin Header Connector for your projects and experience reliable performance combined with efficient service.
