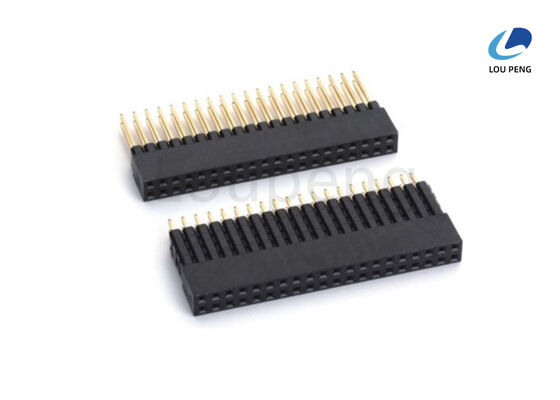

LCP UL94V-0 Female Socket Header Connector Precision Engineered for Secure Electrical Connections in Industrial Equipment

Product Description:

The Female Header Connector is a versatile and reliable component designed to provide secure and efficient connections in a wide range of electronic applications. Known for its excellent electrical performance and robust construction, this connector is suitable for both board-to-board and wire-to-board interfaces, making it an essential element in modern electronic assemblies.

One of the standout features of this Female Board Header Connector is its exceptionally low contact resistance, rated at a maximum of 30 milliohms (mΩ). This low resistance ensures minimal signal loss and optimal electrical conductivity, contributing to the overall efficiency and reliability of the electronic device. The contacts themselves are made from high-quality copper alloys, which not only provide excellent electrical conductivity but also offer superior mechanical strength and resistance to corrosion, thereby enhancing the durability and longevity of the connector.

The housing of the Female Wire Header Connector is constructed from premium polyester material that complies with the UL94V-0 flammability rating. This certification indicates that the housing is highly resistant to fire and meets stringent safety standards, making it suitable for use in environments where safety and reliability are paramount. The polyester housing also provides excellent insulation and mechanical protection to the contacts, ensuring stable performance under various operating conditions.

This Female Board Header Connector is available in multiple configurations to meet diverse application needs. Customers can choose from vertical or right-angle orientations depending on their board layout and mechanical design requirements. Additionally, the connector comes in surface-mount technology (SMT) variants, which facilitate automated assembly and improve manufacturing efficiency. The connector is offered in single row, double row, and three-row configurations, providing flexibility in pin count and enabling designers to optimize space and connectivity on their printed circuit boards.

In terms of thermal performance, this Female Wire Header Connector is designed to withstand high processing temperatures during soldering. It can tolerate a maximum processing temperature of 230℃ for 30 to 60 seconds, and even up to 260℃ for short durations of 5 seconds. This capability ensures that the connector remains stable and undamaged during reflow soldering or wave soldering processes, which are commonly used in modern electronic manufacturing. The ability to endure these temperatures without degradation is critical for maintaining consistent electrical performance and mechanical integrity after assembly.

Overall, the Female Board Header Connector combines excellent electrical characteristics, robust material construction, and versatile design options to deliver a dependable connection solution. It is ideal for use in a wide array of electronic devices, including consumer electronics, industrial equipment, automotive systems, and communication devices. Whether you need a connector for board-to-board or wire-to-board applications, this product offers the quality and flexibility required to meet stringent industry standards and demanding operational environments.

Choosing this Female Wire Header Connector means investing in a component that ensures low contact resistance, high mechanical strength, and safe operation under elevated temperatures. Its copper alloy contacts and UL94V-0 polyester housing provide a perfect balance of performance and safety, making it a preferred choice among engineers and designers worldwide. Furthermore, the availability of various types and configurations allows for seamless integration into diverse electronic designs, supporting innovation and reliability in your projects.

Features:

• Product Name: Female Header Connector
• Available Plastics Height: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, 8.5mm
• Maximum Processing Temperature: 230℃ for 30-60 seconds, 260℃ for 5 seconds
• Material: PA6T with 30% Glass Fiber for enhanced durability
• Pin Material Options: Phosphor Bronze or Brass
• Compatible with Female Wire Header Connector applications
• Suitable for Female Board Header Connector installations
• Designed as a reliable Female Connector Header Pin solution
• High performance under thermal stress ensuring durability
• Server: Openresty

Technical Parameters:

Applications:

The LP-FH029 Female Header Connector, proudly manufactured in China by the reputable brand LP, is a versatile and reliable component designed to meet the rigorous demands of modern electronic applications. Certified under ISO-9001:2000, this connector guarantees high quality and consistent performance, making it an ideal choice for various product application occasions and scenarios. With a minimum order quantity of 1000PCS and an affordable price of 0.0001 per unit, it is perfectly suited for both large-scale manufacturing and specialized projects.

This Female PCB Header Connector is widely used in the assembly of printed circuit boards (PCBs) where secure and efficient connections are essential. Its robust pin material, crafted from phosphor bronze or brass, combined with contact plating options of gold (Au) or tin (Sn) over 40n" nickel, ensures excellent conductivity and corrosion resistance. The connector supports between 2 to 40 pins, providing flexibility for various circuit designs and complexity levels. The plating options, including gold and tin, further enhance the connector’s durability and signal integrity, which is crucial in sensitive electronic environments.

In industrial settings, the Female Board Header Connector serves as a critical interface component in equipment such as control panels, instrumentation, and automation devices. Its ability to withstand an AC voltage of 500V makes it suitable for applications requiring reliable power transmission and signal exchange under demanding electrical conditions. The connector’s packaging options, including reel, tube, tray, and polybag, accommodate different handling and assembly processes, ensuring seamless integration into automated production lines or manual assembly operations.

For electronics manufacturers and designers working on communication devices, computing hardware, or consumer electronics, the Female Wire Header Connector offers a dependable solution for wire-to-board connections. Its supply ability of 100,000PCS and delivery time of 7 to 10 days enable quick turnaround and scalability for projects of varying sizes. Payment terms such as T/T, Western Union, and L/C provide flexible financial arrangements to suit diverse buyer preferences.

In summary, the LP-FH029 Female Header Connector is an essential component in electronic manufacturing and assembly, favored for its quality certification, material excellence, and application versatility. Whether used as a Female PCB Header Connector, Female Board Header Connector, or Female Wire Header Connector, it delivers superior performance across a broad spectrum of industrial, commercial, and consumer electronic applications.

Customization:

Introducing the LP brand Female Electrical Header Connector, model number LP-FH029, manufactured in China with ISO-9001:2000 certification. This Female Electrical Header Connector is designed to meet high standards of quality and reliability. We offer product customization services with a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit.

Our Female PCB Header Connector comes with various packaging options including Reel, Tube, Tray, and Polybag to suit your logistics needs. Delivery time is typically between 7 to 10 days, ensuring prompt fulfillment of your orders. Payment terms accepted are T/T, Western Union, and L/C for your convenience.

The connector features contact plating options of Au or SN over 40n" Ni, providing excellent conductivity and durability. It can withstand a voltage of AC 500V, making it suitable for various electrical applications. The housing is made from high-quality Polyester (UL94V-0), ensuring safety and flame retardance.

We offer multiple types of Female Electrical Header Connectors including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows configurations. Additionally, plastics height options are available ranging from 2.0mm to 8.5mm (2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm) to accommodate diverse design requirements.

With a supply ability of 100000PCS, LP ensures a steady and reliable source for your Female Electrical Header Connector needs. Contact us to customize your Female PCB Header Connector and receive a product tailored to your specifications and application demands.
