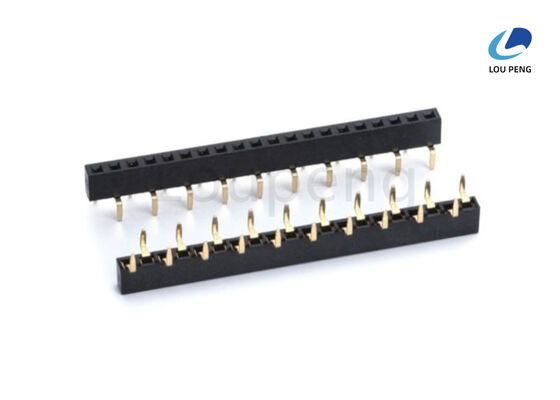

Gold Plating Female Header Connector Featuring Phosphor Bronze Pins Optimized for Openresty Server in Electronic Modules

Product Description:

The Female Header Connector is a highly reliable and durable component designed to meet the demanding requirements of modern electronic applications. Crafted from premium materials, this connector ensures excellent performance and longevity, making it an ideal choice for various industrial and commercial uses. The body of the connector is made from PA6T reinforced with 30% glass fiber, providing exceptional mechanical strength, thermal stability, and resistance to wear and tear. This robust construction allows the connector to withstand harsh environments and maintain its integrity over extended periods.

One of the standout features of this Female Inline Header Connector is its impressive working temperature range. It is engineered to operate efficiently in extreme conditions, with a working temperature spanning from -40 ℃ to +105 ℃. This wide temperature tolerance makes it suitable for applications in environments where temperature fluctuations are common, such as automotive electronics, industrial machinery, and outdoor equipment. Users can rely on this connector to deliver consistent performance without degradation due to thermal stress.

The contact material used in this Female Wire Header Connector is of paramount importance to ensure optimal electrical conductivity and durability. This product utilizes high-quality phosphor bronze or brass for its contacts, both known for their excellent electrical properties and mechanical resilience. These materials provide low contact resistance and high corrosion resistance, which are critical for maintaining stable electrical connections over time. The choice between phosphor bronze and brass contacts allows for flexibility depending on specific application requirements.

To further enhance reliability, the contacts of the Female Wire Header Connector are plated with either gold (Au) or tin (Sn) over a nickel (Ni) base layer. The gold plating offers superior corrosion resistance and excellent conductivity, making it ideal for high-performance and sensitive electronic applications. Alternatively, tin plating over nickel provides a cost-effective solution while still maintaining good solderability and corrosion resistance. The plating thickness, specified as over 40 microinches of nickel, ensures a robust barrier against oxidation and wear, thereby extending the lifespan of the connector.

In addition to its outstanding material composition, this connector is designed for ease of installation and compatibility with a wide range of devices. Its female inline header configuration allows for straightforward mating with corresponding male headers, facilitating secure and stable connections. This design is particularly beneficial in applications where wiring needs to be connected or disconnected frequently, as it provides a reliable interface without compromising electrical integrity.

The Female Wire Header Connector is also engineered to accommodate various wire sizes and configurations, enhancing its versatility. Whether used in compact electronic assemblies or larger industrial setups, this connector delivers consistent performance and robust connectivity. The combination of durable materials, advanced plating techniques, and thoughtful design ensures that this connector meets the high standards expected in today’s electronic component market.

Moreover, the use of PA6T with 30% glass fiber not only strengthens the connector but also contributes to its excellent resistance to chemicals and environmental factors. This makes the Female Inline Header Connector a preferred choice for applications exposed to moisture, oils, and other potentially damaging substances. Its resilience in such conditions helps maintain signal integrity and prevents connection failures, which are crucial for maintaining system reliability and safety.

In summary, the Female Wire Header Connector offers a superior blend of material strength, electrical performance, and environmental resistance. Its construction using PA6T+30% glass fiber, combined with phosphor bronze or brass contacts plated with gold or tin over nickel, ensures it can perform reliably across a broad temperature range of -40 ℃ to +105 ℃. This makes it an excellent solution for a variety of demanding applications where dependable and stable electrical connections are essential. Whether you are designing automotive systems, industrial equipment, or consumer electronics, this connector provides the quality and performance you need.

Features:

• Product Name: Female Header Connector
• Compatible with Female Inline Header Connector, Female Board Header Connector, and Female Electrical Header Connector applications
• Server: Openresty
• Contact Resistance: 30mΩ Max
• Available Pitch Sizes: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Contact Material Options: Phosphor Bronze, Brass
• Maximum Processing Temperature: 230℃ for 30-60 seconds, 260℃ for 5 seconds

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH028, is a highly reliable and versatile electronic component designed and manufactured in China, adhering to the rigorous ISO-9001:2000 certification standards. This product is ideal for various application occasions and scenarios, especially where precise and durable electrical connections are required. As a premium Female Connector Header Pin, it caters to industries that demand high-quality interconnect solutions, including consumer electronics, telecommunications, automotive, and industrial equipment.

One of the key application occasions for the LP Female Board Header Connector is in the assembly of printed circuit boards (PCBs) where through-hole or surface mount technology (SMT) is employed. Its availability in multiple pitches—0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm—makes it adaptable to a wide range of PCB designs, providing flexibility for engineers and designers. The connector’s gold or tin plating ensures excellent conductivity and corrosion resistance, making it suitable for environments that require long-term reliability and stable electrical performance.

In scenarios such as telecommunications equipment, the Female Board Header Connector is used to establish secure and efficient connections between various modules and components. Its insulation resistance of at least 1000MΩ and current rating of 1.5 Amps make it an excellent choice for low to moderate power applications, ensuring safety and efficiency. Moreover, the connector’s packaging options—reel, tube, tray, and polybag—facilitate easy handling and integration into automated production lines, further supporting large-scale manufacturing needs.

The LP-FH028 Female Connector Header Pin is also extensively used in consumer electronics for connecting peripheral devices, sensors, and control units, where compact and reliable connectors are essential. Its supply ability of 100,000PCS and competitive pricing at 0.0001 per unit allows for cost-effective procurement, making it a preferred choice for both prototype development and mass production.

With a minimum order quantity of 1000PCS and a delivery time of 7 to 10 days, the LP Female Board Header Connector provides an efficient supply chain solution. Payment terms including T/T, Western Union, and L/C offer flexibility for international customers. Overall, the LP-FH028 Female Board Header Connector is perfectly suited for a diverse range of applications, delivering exceptional performance, durability, and value across multiple industries.

Customization:

Our LP brand Female PCB Header Connector, model number LP-FH028, is manufactured in China and certified with ISO-9001:2000, ensuring top quality and reliability. We offer product customization services starting from a minimum order quantity of 1000PCS, with a competitive price of 0.0001 per unit.

The Female Connector Header Pin supports 2 to 40 pins, with a female gender design and insulation made from high-quality Polyester (UL94V-0) material. It features excellent electrical performance with a withstanding voltage of AC 500V, suitable for various electronic applications.

Our Female Connector Header Pin can be customized for different mounting types, including Through Hole and SMT, to meet your specific assembly requirements. Packaging options include Reel, Tube, Tray, and Polybag to ensure safe delivery.

We have a strong supply ability of 100,000PCS and offer flexible payment terms such as T/T, Western Union, and L/C. Delivery time is prompt, typically within 7 to 10 days, allowing you to streamline your production process effectively.
