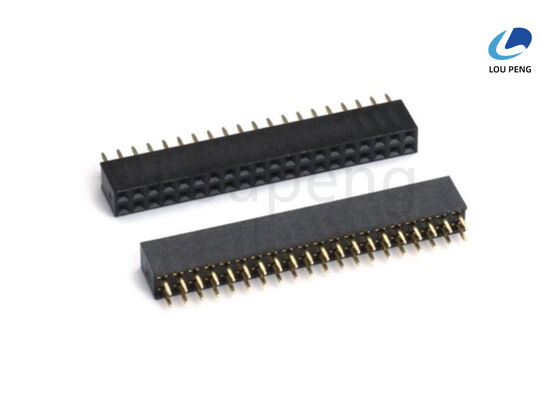

Insulator LCP NYLON PA6T UL94V-0 Female Header Connector Featuring Brass Contact Material Temperature Range 40 ℃ to 105 ℃

Product Description:

The Female Wire Header Connector is an essential component widely used in electronic assemblies and devices, providing reliable and efficient connectivity for various applications. Designed with precision and durability in mind, this Female Connector Header Pin boasts superior material quality and stringent manufacturing standards to ensure optimal performance and longevity.

One of the standout features of this Female Connector Header Pin is its high-quality contact plating. The contacts are plated with either gold (Au) or tin (Sn) over a robust 40 microinches (40n") nickel (Ni) base layer. This plating combination ensures excellent conductivity, corrosion resistance, and durability, which are critical for maintaining stable electrical connections over time. The gold plating offers superior resistance to oxidation and wear, making it ideal for high-reliability applications, while the tin plating provides a cost-effective alternative without compromising on protection. This versatility in plating options allows the Female Wire Header Connector to cater to a broad range of requirements and environments.

Another important attribute of this connector is its high insulation resistance, rated at a minimum of 1000 megaohms (MΩ). This high insulation resistance plays a crucial role in preventing electrical leakage and short circuits, enhancing the safety and reliability of the electronic system where it is employed. Whether used in low-voltage or high-voltage applications, the Female Connector Header Pin ensures stable insulation, minimizing the risk of electrical failures and improving overall system integrity.

The Female Wire Header Connector is known for its versatility, described simply as "usually" versatile, implying that it is compatible with a wide range of mating connectors and circuit board designs. This adaptability makes it a popular choice for engineers and designers looking to streamline assembly processes and reduce inventory complexity. Its compatibility across various applications means it can be found in consumer electronics, automotive systems, industrial equipment, and communication devices, among others.

In terms of structural design, the Female Connector Header Pin is built to meet stringent standards, specifically adhering to the PA6T standard. PA6T, a type of polyamide (nylon) with enhanced thermal and mechanical properties, ensures the connector's insulator is both robust and reliable. This standard guarantees that the Female Wire Header Connector can withstand demanding environmental conditions such as high temperatures, mechanical stress, and exposure to chemicals, without compromising its performance.

The insulator materials used in this Female Connector Header Pin include LCP (Liquid Crystal Polymer), Nylon, and PA6T, all rated UL94V-0 for flammability. LCP is renowned for its high strength, excellent dimensional stability, and resistance to heat, making it an excellent choice for applications requiring durability and thermal endurance. Nylon offers toughness and flexibility, contributing to the connector’s ability to absorb mechanical shocks and vibrations. PA6T, as mentioned, provides superior heat resistance and mechanical strength, making it suitable for high-performance applications. The UL94V-0 rating signifies that the insulator materials are self-extinguishing and meet rigorous fire safety standards, further enhancing the safety profile of the Female Wire Header Connector in critical applications.

Overall, the Female Wire Header Connector is a dependable and high-quality solution for establishing secure electrical connections in a variety of electronic systems. With its superior contact plating options, high insulation resistance, versatile application range, compliance with PA6T standards, and robust insulator materials such as LCP, Nylon, and PA6T with UL94V-0 flame retardancy, this Female Connector Header Pin meets the demands of modern electronic assembly and design. Whether you are developing consumer gadgets, automotive electronics, or industrial machinery, this connector provides the reliability and performance needed to ensure your projects succeed.

Features:

• Product Name: Female Header Connector
• Type options: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Insulator Materials: LCP, NYLON, PA6T (UL94V-0)
• Insulator Material: Polyester (UL94V-0)
• Current Rating: 1.5 Amps
• Working Temperature Range: -40 ℃ to +105 ℃
• Suitable for Female Wire Header Connector applications
• Designed as a reliable Female Electrical Header Connector

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH032, is a highly reliable and versatile component designed to meet the demanding needs of various electronic applications. Manufactured in China and certified with ISO-9001:2000, this connector ensures top-notch quality and consistent performance. With its robust construction and excellent material selection, the Female Header Pin Connector is ideal for use in environments requiring durability and precision.

One of the primary application occasions for the Female Header Socket Connector is in the assembly of printed circuit boards (PCBs). Its phosphor bronze and brass contact materials, coupled with gold or tin plating over 40n" nickel, guarantee superior conductivity and corrosion resistance. This makes the Female Connector Header Pin an excellent choice for critical electronics in telecommunications, computing, and industrial automation systems, where reliable signal transmission is crucial.

The LP-FH032 is designed with a high-temperature tolerant polyester housing rated UL94V-0, allowing it to operate efficiently within a wide temperature range of -40° to +105°. This attribute makes it suitable for outdoor electronics, automotive applications, and other scenarios where temperature fluctuations are common. The connector’s packaging options—reel, tube, tray, or polybag—facilitate flexible handling and integration into various manufacturing processes, ensuring smooth production cycles.

Due to its compact and efficient design, the Female Header Pin Connector is widely used in consumer electronics, medical devices, and instrumentation. Its compatibility with standard header pin layouts simplifies the replacement and upgrading of components in existing systems. Moreover, with a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-FH032 provides an economical solution for large-scale production needs.

The supply ability of 100,000PCS with a delivery time of 7 to 10 days ensures that manufacturers can maintain steady inventory levels without facing long lead times. Payment terms such as T/T, Western Union, and L/C offer flexible financial arrangements to accommodate different buyer preferences. In summary, the LP Female Header Connector series, especially the LP-FH032, is an indispensable component for engineers and designers seeking reliable, cost-effective, and high-performance Female Header Socket Connectors in a variety of electronic applications.

Customization:

Our Female Header Connector product, branded LP with model number LP-FH032, is proudly made in China and certified with ISO-9001:2000, ensuring high quality and reliability. We offer customization services tailored to meet your specific requirements whether you need a Female Board Header Connector or a Female Wire Header Connector.

The product supports pins ranging from 2 to 40, made from high-quality phosphor bronze or brass materials. The contact plating options include Au or SN over 40n" Ni, providing excellent conductivity and durability. Plastics height customization is available with multiple options: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm to suit various application needs.

We guarantee an insulation resistance of at least 1000MΩ, ensuring reliable performance in your electronic assemblies. Packaging options include reel, tube, tray, or polybag to accommodate different shipping and handling preferences.

Our minimum order quantity is 1000PCS, with a competitive price of 0.0001 per piece. The supply ability is robust at 100,000PCS, allowing for timely delivery within 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C.

Whether you require a Female Wire Header Connector or a Female Board Header Connector, our LP-FH032 model offers versatile and customizable solutions to meet your project demands with quality assurance and efficient service.
