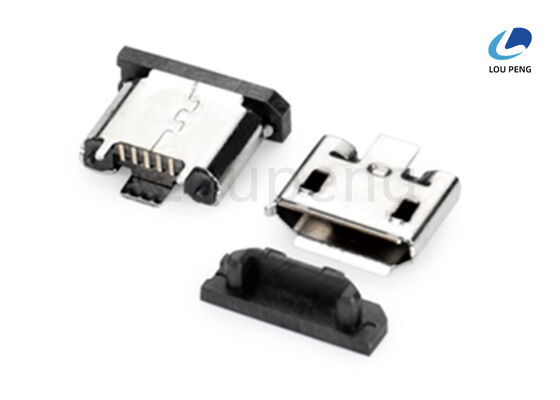

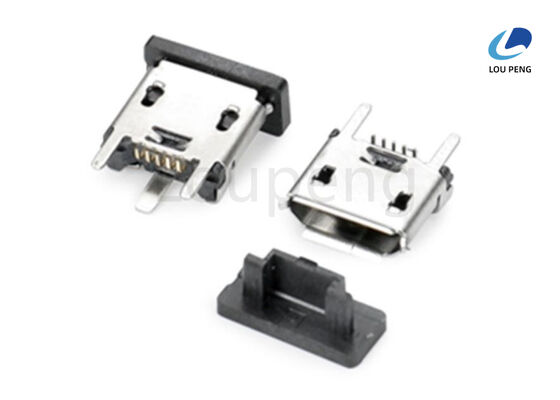

Plated 1 U Universal Serial Bus Connector RoHS Compliant Halogen Free Connector Designed for Data Transmission and Long Term

Product Description:

The Universal Serial Bus Connector, commonly known as the USB Connector, is an essential component in modern electronic devices, providing a reliable interface for data transfer and power supply. Designed to meet rigorous industry standards, this High Speed USB Connector ensures seamless connectivity and robust performance in a wide range of applications, from consumer electronics to industrial equipment.

One of the standout features of this USB Power and Data Connector is its high-quality insulator material. Crafted from PBT or LCP with 30% glass fiber (G.F) reinforcement, the insulator not only enhances the durability and structural integrity of the connector but also complies with the stringent UL94V-0 flammability rating. This certification guarantees that the material is flame-retardant, offering an added layer of safety and reliability, especially in environments prone to electrical hazards.

The connecting mode of this USB Connector is designed for ease and efficiency, featuring a plug/unplug mechanism that facilitates quick and secure connections. This user-friendly design ensures that users can effortlessly connect or disconnect their devices without compromising on the quality or stability of the connection. Such a feature is particularly valuable in scenarios where frequent device swapping or mobility is required.

In terms of electrical performance, this High Speed USB Connector excels with its impressive dielectric withstanding capabilities. It is built to withstand an alternating current (AC) voltage of 100 volts, ensuring that the connector can operate safely under standard usage conditions without risk of dielectric breakdown. Additionally, the connector undergoes a stringent pressure resistance test at 250 volts AC, which further validates its robustness and reliability under electrical stress.

The dielectric withstanding voltage rating of 100 VRMS AC minimum is a critical specification that underscores the safety and endurance of this USB Power and Data Connector. This rating signifies the connector's ability to resist electrical stress and prevent leakage currents or shorts, thereby safeguarding both the connected devices and the users. Such reliability is crucial in maintaining the integrity of data transmission and power delivery, especially in high-speed USB applications where signal quality is paramount.

Moreover, the combination of superior materials and meticulous engineering makes this Universal Serial Bus Connector an ideal choice for high-speed data transfer needs. Whether used in computers, peripherals, mobile devices, or other digital equipment, it ensures consistent performance and longevity. Its compatibility with various USB standards means it can support a wide range of devices, facilitating universal connectivity and interoperability.

In conclusion, this USB Connector represents the pinnacle of design and functionality in the realm of USB Power and Data Connectors. Its robust insulator materials, secure plug/unplug connecting mode, and excellent electrical properties such as dielectric withstanding voltage and pressure resistance make it an indispensable component for anyone seeking reliable, high-speed USB connectivity. Whether for personal or professional use, this High Speed USB Connector is engineered to deliver exceptional performance, safety, and durability in all your electronic interfacing needs.

Features:

• Product Name: USB Connector
• Shell plated with Ni Plated for enhanced durability
• Current Rating range from 1.5A to 5A
• Insulation resistance of 100 Megohms minimum
• Insulation impedance: 100MΩ minimum at 250V DC
• Overall pull-out force: 1.02kgf minimum
• Designed as an External Device Connection Port
• Functions as a USB Peripheral Connection Interface
• Serves as a reliable USB Power and Data Connector

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U025, is a high-quality product originating from China, certified under ISO-9001:2000 standards. Designed to meet the rigorous demands of modern electronic devices, this USB Communication Port Connector offers a reliable and durable solution for various application occasions and scenarios. With a compact USB connection interface, it is ideal for integrating into a wide range of consumer electronics, including laptops, desktops, tablets, and other portable devices where space-saving design is critical.

Due to its copper alloy construction with gold or nickel plating and Ni-plated shell, the LP-U025 USB Communication Port Connector ensures excellent conductivity and resistance to corrosion. This makes it perfect for use in environments requiring consistent and stable data transmission, such as industrial automation systems, medical equipment, and automotive electronics. The connector’s compliance with RoHS and halogen-free standards further supports its application in environmentally conscious manufacturing processes.

The compact design and robust overall pull-out force of 1.02kgf minimum guarantee secure and stable connections in high-vibration or mobile scenarios, such as wearable technology, mobile communication devices, and portable media players. The LP-U025 USB Connector is also suitable for use in charging docks, USB hubs, and peripheral devices, providing a seamless interface for data transfer and power delivery.

Manufacturers and assembly lines benefit from the recommended IR reflow process at 260°C for 3 to 5 seconds, ensuring efficient and reliable soldering. The product’s packaging options—reel, tube, or tray—facilitate easy handling and automation in production environments. With a minimum order quantity of 1000PCS, a competitive price of 0.01 per unit, and a supply ability of 100,000PCS, the LP-U025 USB Communication Port Connector supports large-scale manufacturing demands.

Additionally, the delivery time of 7 to 10 days and flexible payment terms, including T/T, Western Union, and L/C, make it a practical choice for global manufacturers and distributors. Overall, the LP-U025 USB Connector is an excellent component for anyone seeking a compact USB connection interface that combines durability, compliance, and cost-effectiveness across diverse application scenarios.

Customization:

LP presents the USB Connector model LP-U025, a Compact USB Connection Interface designed to meet high standards of quality and performance. Manufactured in China and certified under ISO-9001:2000, this Standard USB Plug Connector offers reliable USB Power and Data connection suitable for various electronic applications.

With a minimum order quantity of 1000PCS and a competitive price of $0.01 per unit, the LP-U025 USB Connector is ideal for large-scale production needs. Packaging options include Reel, Tube, and Tray to accommodate different shipping and handling requirements.

The USB Connector features excellent electrical properties, including an insulator resistance of 1000MΩ minimum and a contact resistance of 40 milliohms maximum for VBUS and GND contacts, and 50 milliohms maximum for other contacts. Its insulator material is made from durable PBT / LCP with 30% glass fiber, rated UL94V-0 for safety.

Mechanically, the connector supports an overall insertion force up to 3.57kgf maximum, with connector insertion force ranging from 5 to 20N at a maximum rate of 12.5mm per minute, ensuring a secure and stable connection.

LP guarantees a supply ability of 100,000PCS with a delivery time of 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C.

Choose LP’s USB Connector LP-U025 for a trusted and efficient solution in USB Power and Data connectivity, combining robustness and precision in a Compact USB Connection Interface.
