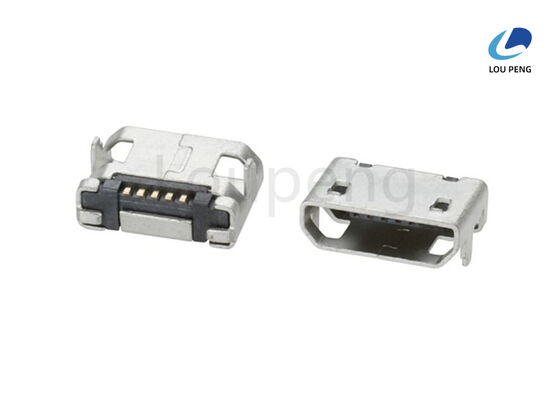

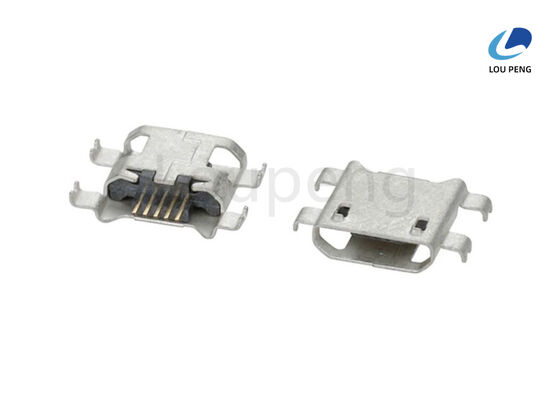

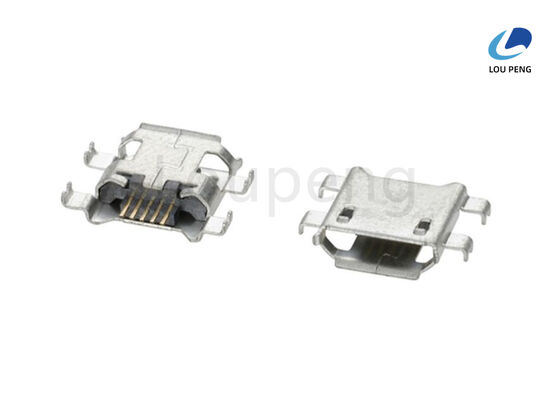

Overall pull out force 1.02kgf MIN MICRO USB Connector providing Connector insertion force 5 to 20N and Insulation resistance 100 Megohms Min for industrial

Product Description:

The Universal Serial Bus Connector is an essential component in modern electronics, designed to provide reliable and high-speed data transfer capabilities across a wide range of devices. With its robust construction and advanced features, this USB Data Transfer Connector ensures seamless connectivity for various applications, from personal computing to industrial use.

One of the standout features of this USB Data Transfer Connector is its impressive IP68 rating. This means the connector is fully protected against dust ingress and can withstand continuous immersion in water, making it ideal for use in harsh environments where exposure to moisture and dust is a concern. The IP68 rating guarantees durability and long-lasting performance, ensuring your devices remain connected even under challenging conditions.

When it comes to data transfer speed, this Universal Serial Bus Connector excels with support for up to 10 Gbps, thanks to the USB 3.1 standard. This high-speed transfer capability allows for rapid file sharing, smooth video streaming, and efficient data synchronization, significantly reducing wait times and improving productivity. Whether you are transferring large media files or backing up critical data, this USB Data Transfer Connector delivers exceptional performance.

The material composition of this connector further enhances its reliability. Crafted from a high-quality copper alloy and plated with either gold or nickel, the connector offers excellent conductivity and corrosion resistance. The gold plating ensures optimal signal transmission and minimizes oxidation, while the nickel plating provides a durable and cost-effective alternative. This combination of materials guarantees a stable connection and prolongs the lifespan of the connector.

In terms of electrical performance, this USB Data Transfer Connector supports a current rating ranging from 1.5A to 5A. This versatility allows it to cater to various power requirements, from charging smartphones and tablets to powering larger devices. The ability to handle higher current ratings also means faster charging times and improved energy efficiency, making it a practical choice for both consumers and manufacturers.

This USB connector is available in multiple types to suit different device interfaces and user needs. Whether you require USB 2.0 for basic connectivity, USB 3.0 for enhanced speed, or USB 3.1 for the fastest data transfer, this product has you covered. Additionally, it includes versions for Micro USB and MINI USB, ensuring compatibility with a broad spectrum of gadgets such as smartphones, cameras, and portable storage devices. This variety simplifies integration and reduces the need for multiple connector types.

In summary, this Universal Serial Bus Connector is a high-performance, versatile, and durable solution for all your data transfer and charging needs. Its IP68 rating ensures robust protection against environmental factors, while the support for up to 10 Gbps data transfer speed meets the demands of modern digital workflows. Made from premium copper alloy with gold or nickel plating, it provides excellent conductivity and longevity. With a current rating flexible enough to handle various devices and multiple connector types available, this USB Data Transfer Connector is an indispensable component for anyone seeking reliable and efficient connectivity.

Features:

• Product Name: USB Connector
• Universal USB Interface Connector
• USB Power and Data Connector
• USB Data Transfer Connector
• Insulator resistance: 1000MΩ Min
• Dielectric withstanding voltage: AC 100V
• Data Transfer Speed: Up To 10 Gbps (USB 3.1)
• Insulation impedance: 100MΩ Min at 250V DC
• Connector insertion force: 5~20N, at a maximum rate of 12.5mm per minute

Technical Parameters:

This USB Data Transfer Connector is designed as a High Speed USB Connector and serves as a reliable USB Communication Port Connector for various applications.

Applications:

The LP brand USB Connector, model number LP-U026, is an advanced and reliable solution designed for various electronic devices requiring a compact USB connection interface. Manufactured in China and certified under ISO-9001:2000, this connector guarantees high quality and durability, making it ideal for both consumer and industrial applications. With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, it is well-suited for mass production and large-scale manufacturing projects.

This high speed USB connector is widely used in scenarios where secure and efficient data transfer is crucial. It is perfect for integration into laptops, desktops, tablets, and other portable electronic devices that demand a compact USB connection interface without compromising on performance. The LP-U026’s dielectric withstanding voltage of 100 VRMS AC minimum ensures excellent insulation and safety, making it suitable for environments with strict electrical standards.

In the realm of consumer electronics, the LP-U026 USB connector is frequently utilized in peripherals such as keyboards, mice, external hard drives, and USB hubs, where a high speed USB connector is essential for fast data communication and power delivery. Its current rating of 1.5A to 5A supports a wide range of power requirements, enabling it to handle both low and moderately high power devices efficiently.

Manufacturers appreciate the LP-U026 for its reliable mechanical performance, including a connector insertion force of 5 to 20N and an extraction force of 8 to 20N at a maximum rate of 12.5mm per minute, ensuring secure connections while allowing easy plugging and unplugging. The overall insertion force does not exceed 3.57kgf, enhancing user convenience during frequent use.

Packaging options such as reel, tube, or tray provide flexibility in handling and assembly, which is beneficial for automated production lines. With a competitive price of $0.01 per unit and a delivery time of 7 to 10 days, this high speed USB connector offers cost-effective and timely solutions for OEMs and electronic device manufacturers globally.

Payment methods including T/T, Western Union, and L/C facilitate smooth international transactions, making the LP-U026 a preferred choice for businesses aiming to incorporate a compact USB connection interface into their products. Whether in consumer electronics, industrial automation, or communication equipment, this high speed USB connector excels in providing dependable connectivity and robust performance.

Customization:

The LP brand USB Connector, model number LP-U026, is a high-quality product originating from China and certified with ISO-9001:2000. Designed to serve as a High Speed USB Connector and External Device Connection Port, it supports various types including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB, making it a versatile USB Power and Data Connector.

With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, this connector is available at a competitive price of 0.01 per unit. Packaging options include Reel, Tube, and Tray to suit different shipping and handling needs. Delivery time is efficient, ranging from 7 to 10 days.

The connector features a connector insertion force between 5 and 20N at a maximum rate of 12.5mm per minute, ensuring reliable and secure connections. Assembly is done through soldering, and the shell is Ni plated for enhanced durability and corrosion resistance.

Electrical specifications include a contact current rating of 3.0A for the VBUS pin and its corresponding GND pin, with a minimum of 0.25A for all other contacts, ensuring stable power and data transmission. Payment terms accepted are T/T, Western Union, and L/C.

Choose the LP-U026 USB Connector for a dependable and efficient USB Power and Data Connector solution that meets high standards of quality and performance for all your connectivity needs.

Support and Services:

For technical support and services related to our USB Connector product, please refer to the product manual and installation guide provided with your purchase. Our support team is available to assist with troubleshooting, installation guidance, and product compatibility inquiries. We recommend checking our online resources for FAQs, software updates, and detailed specifications to ensure optimal performance. If further assistance is needed, support services include warranty claims, replacement parts, and technical consultations to address any issues you may encounter.

Packing and Shipping:

Each USB Connector is securely packaged in a durable, anti-static plastic bag to prevent any damage or electrostatic discharge during handling.

The product is then placed inside a compact, sturdy cardboard box with custom foam inserts to ensure maximum protection during transit.

All packages are labeled with clear product information and handling instructions to facilitate smooth shipping and inventory management.

Shipping options include standard and expedited delivery, with tracking available for all orders to guarantee timely and safe arrival.

We take utmost care in packaging and shipping to ensure that your USB Connector arrives in perfect working condition.
