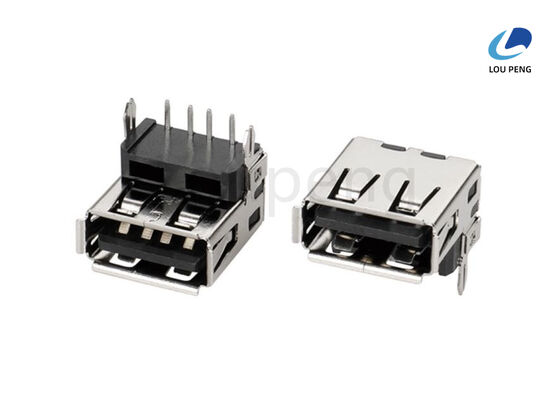

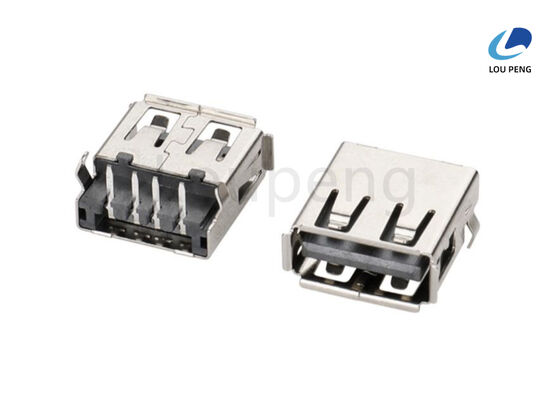

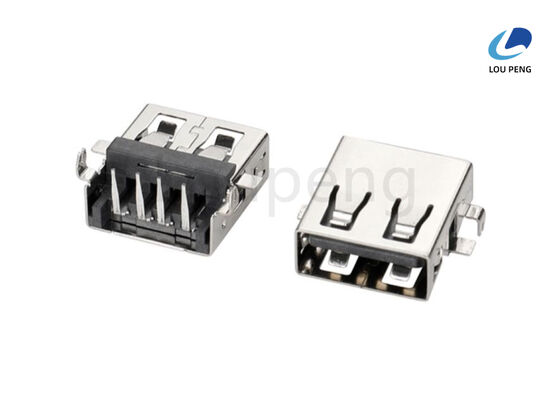

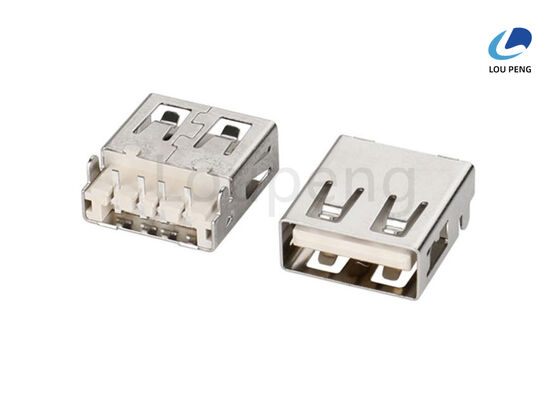

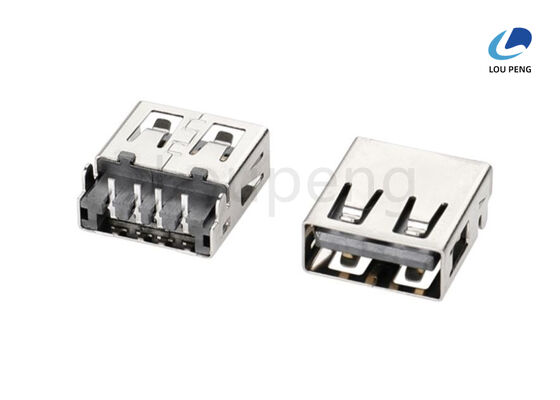

RoHS Compliant And Halogen Free Compliant USB Data Transfer Connector With Dielectric Withstanding AC 100V Ideal For Data Transmission Solutions

Product Description:

The USB Connector is an essential component designed for efficient and reliable USB Peripheral Connection Interface applications. Engineered with precision, this connector ensures seamless data transmission and robust physical connectivity, making it ideal for various electronic devices requiring a dependable USB Data Transfer Connector. Its construction and performance specifications align perfectly with modern technological demands, providing both durability and high functionality.

One of the standout features of this USB Connector is its recommended soldering process. It is optimized for IR Reflow soldering at 260°C for a duration of 3 to 5 seconds. This specific reflow profile guarantees optimal solder joint quality, ensuring strong mechanical and electrical connections without compromising the integrity of the connector or the PCB. The careful calibration of this process aids manufacturers in achieving consistent results, reducing the risk of defects during assembly.

In terms of electrical performance, the connector boasts a maximum contact impedance of just 30mΩ. This low impedance is crucial for maintaining signal integrity during data transfer, minimizing losses and ensuring that the USB Peripheral Connection Interface operates at peak efficiency. Such a low contact resistance contributes to stable and reliable communication between devices, which is essential for high-speed data applications and peripheral connectivity.

The structural design of the USB Connector incorporates a robust shell composed of copper alloy and steel. This combination of materials offers excellent mechanical strength and corrosion resistance, protecting the internal contacts and ensuring longevity even in demanding environments. The metal shell not only provides physical protection but also enhances electromagnetic shielding, reducing interference and improving overall signal quality in the USB Data Transfer Connector.

Safety and reliability are further ensured by the connector’s dielectric withstanding voltage of AC 100V. This rating indicates the connector’s ability to resist electrical breakdown under specified voltage conditions, safeguarding both the connector and the connected devices from potential electrical faults. Such dielectric strength is vital in maintaining stable operation and preventing damage under normal and transient electrical stresses.

Another critical mechanical characteristic of this USB Connector is its insertion force requirement, which ranges from 5 to 20 Newtons. This force range is carefully calibrated to provide a secure fit while allowing for ease of connection and disconnection. The insertion is tested at a maximum rate of 12.5mm per minute to simulate real-world usage conditions, ensuring that the connector maintains consistent performance and durability throughout its lifecycle.

Designed to meet the rigorous demands of USB Peripheral Connection Interface standards, this USB Data Transfer Connector is suitable for a wide array of applications including computers, mobile devices, and other electronic peripherals. Its combination of precise mechanical properties, excellent electrical characteristics, and robust material construction makes it a reliable choice for manufacturers and end-users alike.

In summary, this USB Connector offers a comprehensive solution for USB Peripheral Connection Interface needs. With its optimized IR Reflow soldering process, low contact impedance, durable copper alloy and steel shell, strong dielectric withstanding capability, and carefully controlled insertion force, it stands out as a high-quality USB Data Transfer Connector. Whether integrated into new designs or used for replacement parts, it delivers consistent performance, ensuring that data transfer and peripheral connectivity are always maintained at the highest standards.

Features:

• Product Name: USB Connector
• Current Rating: 1.5A to 5A
• Insulator Resistance: 1000MΩ Min
• Connector: RoHS Compliant and Halogen Free Compliant
• Material: Copper Alloy with Gold or Nickel Plating
• Connector Extraction Force: 8~20N, at a Maximum Rate of 12.5mm per Minute
• Designed as an External Device Connection Port
• Functions as a USB Data Transfer Connector
• Serves as a USB Peripheral Connection Interface

Technical Parameters:

Applications:

The LP USB Connector, model number LP-U027, is a high-quality product originating from China and certified under ISO-9001:2000 standards. Designed for a wide range of applications, this Universal Serial Bus Connector is an essential component for any device requiring a reliable USB Peripheral Connection Interface. Its robust construction includes a nickel-plated shell and gold-plated contacts (available in 1U, 15U, and 30U options), ensuring excellent conductivity and corrosion resistance, making it suitable for both consumer electronics and industrial equipment.

One of the primary application occasions for the LP-U027 USB Connector is in the manufacturing of external device connection ports. This connector is ideal for linking peripherals such as keyboards, mice, printers, external storage devices, and other USB-enabled hardware to host systems like computers, laptops, and embedded systems. Its IP68 rating guarantees exceptional protection against dust and water ingress, which is crucial for outdoor or harsh environment applications, including rugged tablets, industrial controllers, and automotive infotainment systems.

Thanks to its dielectric withstanding voltage of AC 100V, the LP-U027 ensures safe transmission of data and power, reducing the risk of electrical faults. The recommended IR reflow process at 260°C for 3 to 5 seconds facilitates efficient and reliable soldering during PCB assembly, making it highly compatible with automated manufacturing lines. The packaging options, including reel, tube, and tray, accommodate different production scale needs, from small prototyping batches to mass production runs, with a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, ensuring timely availability within a delivery window of 7 to 10 days.

Payment terms such as T/T, Western Union, and L/C provide flexible transaction options for global customers. The LP USB Connector is particularly favored in scenarios demanding durable and high-performance USB Peripheral Connection Interfaces, such as in consumer electronics manufacturing, telecommunications equipment, automotive systems, and medical devices. Its universal compatibility and robust IP68 protection also make it an excellent choice for outdoor electronic installations, portable charging stations, and ruggedized computing devices, where reliability and longevity are paramount.

Customization:

Brand Name: LP

Model Number: LP-U027

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.01 per unit

Packaging Details: Reel / Tube / Tray

Delivery Time: 7~10 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100000PCS

Overall Pull-Out Force: 1.02kgf MIN

Insulation Resistance: 100 Megohms Min.

Assembly: Solder

Mounting Type: Through Hole / Surface Mount / SMT

Contact Resistance: 40 Milliohms Max for VBUS and GND Contacts; 50 Milliohms Max for Other Contacts.

This USB Connector serves as a reliable External Device Connection Port and USB Peripheral Connection Interface, ensuring stable and efficient data transfer.

Designed as a High Speed USB Connector, the LP-U027 model supports various mounting types including Through Hole, Surface Mount, and SMT to fit diverse application needs.

With ISO-9001:2000 certification and a high supply ability, this connector is ideal for mass production and customization, providing excellent performance and durability for all USB connectivity requirements.
