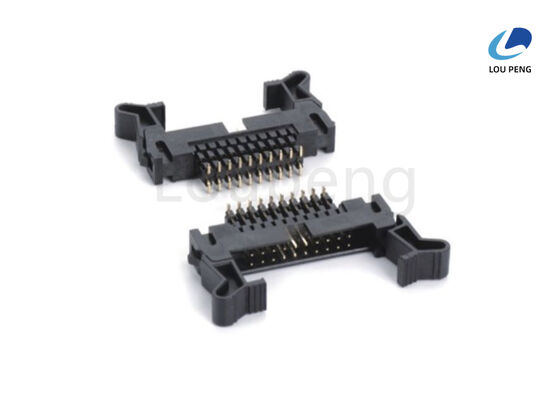

UL Recognized IDC Socket BOX Header 3A Per Contact Double Row Right Angle Vertical SMT Connector Designed for Assembly

Product Description:

The IDC Socket / BOX Header is an advanced and reliable connector solution designed to meet the diverse needs of modern electronic applications. With its robust construction and precise engineering, this product ensures stable and efficient electrical connections, making it an ideal choice for a wide range of industries including telecommunications, computing, automotive, and consumer electronics. The IDC Socket Header Connector stands out for its exceptional insulation resistance, measuring a minimum of 1000M Ohms, which guarantees high performance and safety even in demanding environments.

One of the key features of the IDC Connector Socket Header is its versatile pitch options. Available in multiple pitch sizes including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, this connector accommodates various design requirements and space constraints. This flexibility allows engineers and designers to select the most suitable pitch for their specific applications, ensuring optimal signal integrity and mechanical stability. Whether it’s for compact devices requiring fine pitch connectors or larger systems needing broader spacing, the IDC Cable Socket Connector provides a comprehensive solution.

The insulator material used in this product is a high temperature thermoplastic, which contributes significantly to its durability and reliability. This high-performance material is capable of withstanding elevated temperatures without deformation or degradation, thus extending the lifespan of the connector in harsh operating conditions. The use of high temperature thermoplastic also enhances the connector’s resistance to environmental factors such as moisture, chemicals, and mechanical stress, making it suitable for use in challenging industrial settings.

A standout characteristic of this IDC Socket / BOX Header is its termination method, which employs Insulation Displacement Contact (IDC) technology. IDC termination allows for quick and secure connections without the need for stripping the wire insulation, simplifying the assembly process and reducing manufacturing time and costs. This method ensures consistent electrical contact and minimizes the risk of connection failures caused by poor solder joints or loose wires. As a result, the IDC Connector Socket Header offers reliable performance with excellent electrical conductivity and mechanical robustness.

Compliance with industry standards is a critical aspect of the IDC Socket Header Connector’s design. This product meets the stringent requirements of RoHS (Restriction of Hazardous Substances) and is UL Recognized, reflecting its adherence to environmental safety and quality benchmarks. RoHS compliance ensures that the connector is free from hazardous materials, which is essential for environmentally conscious manufacturing and end-user safety. The UL Recognition further validates the product’s reliability and safety in electrical applications, providing peace of mind to manufacturers and consumers alike.

In summary, the IDC Socket / BOX Header is a superior connector solution that combines high insulation resistance, multiple pitch options, durable high temperature thermoplastic insulation, and efficient IDC termination technology. Its compliance with RoHS and UL standards underscores its quality and safety credentials. Whether referred to as an IDC Socket Header Connector, IDC Connector Socket Header, or IDC Cable Socket Connector, this product is engineered to deliver exceptional performance, ease of installation, and long-term reliability. It is an excellent choice for anyone seeking a dependable and versatile connector for their electronic systems.

Features:

• Product Name: IDC Socket / BOX Header
• Insulator Material: PA6T UL 94V-0 Black
• Standard Color: Black
• Available Types: Vertical, Right Angle, SMT, Double Row
• Contact Resistance: 20M Ohms Max
• Compliance Standards: RoHS, UL Recognized
• Suitable for use as IDC Socket Header Connector
• Compatible with IDC Cable Socket Connector applications
• Reliable IDC Connector Socket Header solution

Technical Parameters:

Applications:

The LP IDC Socket / BOX Header, model number LP-BX027, is a highly reliable and versatile component designed for various electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this IDC Connector Socket Header ensures superior quality and performance. Its insulation displacement connector socket design allows for quick and efficient wire termination without the need for stripping insulation, making it an ideal choice for mass production and rapid assembly environments.

With a contact resistance of 20M Ohms Max and contact plating available in gold or tin, the Box Header IDC Connector provides excellent electrical conductivity and corrosion resistance. It supports a voltage rating of 250V AC/DC and a current rating of 3A per contact, making it suitable for a wide range of electronic devices and systems requiring stable and secure connections. This product is particularly useful in telecommunications, computer hardware, consumer electronics, and industrial control systems where reliable connector performance is critical.

The IDC Socket / BOX Header is packaged in reels, tubes, trays, or polybags to accommodate different handling and storage preferences, making it convenient for automated assembly lines or manual installation processes. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the product is well-suited for bulk procurement by manufacturers and distributors. The supply ability of 100,000PCS ensures that demand can be met promptly, with a delivery time of 7 to 10 days.

Payment terms are flexible, including T/T, Western Union, and L/C, facilitating smooth transactions for clients worldwide. The LP-BX027 IDC Connector Socket Header is an excellent choice for engineers and procurement professionals seeking a durable, high-performance insulation displacement connector socket that balances cost-efficiency with quality. Whether used in prototype development, large-scale manufacturing, or system repair, this Box Header IDC Connector consistently delivers reliable connectivity and ease of use across various application occasions and scenarios.

Customization:

Introducing the LP-BX027 IDC Socket / BOX Header by LP, a premium Insulation Displacement Connector Socket designed for reliable and efficient electrical connections. Manufactured in China and certified with ISO-9001:2000, this product guarantees quality and performance for your applications.

The LP-BX027 features a variety of pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, ensuring compatibility with multiple design requirements. With an insulation resistance of 1000M Ohms minimum and an operating temperature range from -65°C to +125°C, this Insulation Displacement Contact Socket is built to withstand demanding environments.

The contact plating is available in gold or tin, providing excellent conductivity and corrosion resistance. The termination method utilizes Insulation Displacement Contact (IDC) technology, allowing for quick and secure wire connections without the need for stripping insulation.

Available packaging options include reel, tube, tray, or polybag to suit your handling and assembly preferences. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-BX027 is ideal for both small and large scale production.

Our supply ability is 100,000PCS with a delivery time of 7 to 10 days, ensuring timely fulfillment of your orders. Payment terms accepted are T/T, Western Union, and L/C, providing flexible options for your convenience.

Choose the LP-BX027 IDC Socket / BOX Header for a dependable Insulation Displacement Crimp Socket solution that meets industry standards and your specific customization needs.
