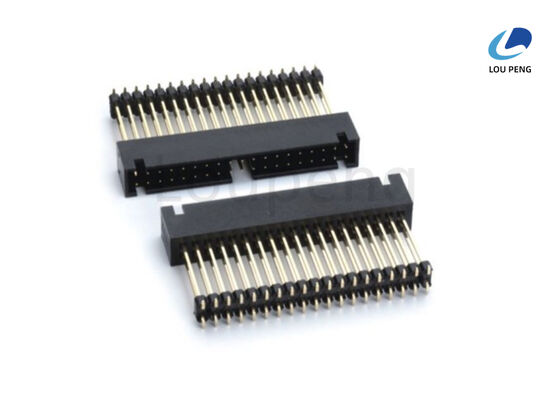

Black standard IDC Socket BOX Header providing 1.0Amp current rating and phosphor bronze contact material designed for electrical interfaces

Product Description:

The IDC Socket / BOX Header is a high-performance connector designed for reliable and efficient electrical connections in a variety of applications. Known for its robust construction and superior electrical characteristics, this product is an essential component in modern electronic assemblies. The IDC Socket Header Connector is engineered to meet the demanding needs of industries such as telecommunications, automotive, consumer electronics, and industrial equipment.

One of the standout features of the IDC Socket / BOX Header is its insulator material, crafted from high temperature thermoplastic. This advanced material not only ensures excellent thermal stability but also provides outstanding mechanical strength and resistance to environmental stresses. The use of high temperature thermoplastic allows the connector to operate reliably in harsh conditions where elevated temperatures are common, thereby enhancing the overall durability and lifespan of the device.

The IDC Box Header Connector boasts a dielectric withstanding voltage rating of AC 500V. This means the connector is capable of withstanding high voltage stress without breakdown or failure, ensuring safety and integrity in electrical isolation. Such a high dielectric withstanding capability makes the product suitable for applications demanding stringent electrical insulation standards, offering peace of mind to engineers and system designers.

Current carrying capacity is another critical attribute of the IDC Socket Header Connector. It supports a current rating of 3A per contact, which is adequate for many low to medium power electronic circuits. This rating ensures that the connector can handle sufficient electrical load while maintaining stable performance, making it ideal for data transmission, signal processing, and power distribution within complex systems.

The contact plating of the IDC Socket / BOX Header is available in either gold or tin plating, providing options tailored to specific application needs. Gold plating is highly valued for its excellent corrosion resistance, superior conductivity, and long-term reliability, especially in environments prone to oxidation or contamination. Tin plating, on the other hand, offers cost-effective protection and good solderability, making it suitable for general-purpose applications. Both plating options guarantee reliable electrical contact and help minimize contact resistance, thereby enhancing signal integrity and overall connector performance.

The design of the Insulation Displacement Contact Socket is optimized for quick and secure wire termination without the need for stripping the insulation. This feature significantly reduces assembly time and labor costs while ensuring a consistent and reliable connection. The IDC technology embedded in this socket enables high-density wiring and compact connector footprint, which is essential for space-constrained electronic devices.

In summary, the IDC Socket / BOX Header is an indispensable component that combines advanced materials, superior electrical properties, and practical design features. Its high temperature thermoplastic insulator, AC 500V dielectric withstanding capability, 3A current rating per contact, and choice of gold or tin plated contacts make it a versatile and reliable solution for a wide range of electronic connection needs. Whether referred to as an IDC Socket Header Connector, Insulation Displacement Contact Socket, or IDC Box Header Connector, this product consistently delivers exceptional performance, durability, and ease of use, making it a preferred choice for engineers and manufacturers worldwide.

Features:

• Product Name: IDC Socket / BOX Header
• Type: IDC Connector Socket Header
• Dielectric Withstanding Voltage: AC 500V
• Mounting Type: Through Hole / Surface Mount
• Termination Method: Insulation Displacement Contact (IDC)
• Insulation Displacement Contact Socket for reliable and efficient connections
• Compliance Standards: RoHS, UL Recognized
• Insulator Material: PA6T UL 94V-0 Black

Technical Parameters:

Applications:

The LP IDC Socket / BOX Header, model number LP-BX025, is a versatile and reliable component designed for various electronic and electrical applications. Manufactured in China under strict quality control and certified by ISO-9001:2000, this IDC Cable Socket Connector ensures superior performance and durability. With a current rating of 1.0 Amp and an insulation resistance of 1000M Ohms minimum, it guarantees safe and efficient electrical connections in demanding environments.

This product is widely used in scenarios requiring secure and quick connections, such as in telecommunications, industrial automation, consumer electronics, and computer hardware. The IDC Cable Socket Connector, also known as the Insulation Displacement Crimp Socket, offers a reliable solution for connecting flat ribbon cables to printed circuit boards (PCBs) without the need for soldering, making it ideal for mass production and rapid assembly lines.

Thanks to its phosphor bronze contact material, the LP-BX025 provides excellent conductivity and corrosion resistance, ensuring long-lasting performance even in harsh conditions. Its mounting options, including through-hole and surface mount, add flexibility for various design needs and installation methods. This adaptability makes it suitable for use in control panels, communication devices, data acquisition systems, and other electronic assemblies where space and reliability are critical.

The IDC Socket / BOX Header is packaged thoughtfully in reel, tube, tray, or polybag formats to accommodate different handling and storage preferences, facilitating efficient logistics and inventory management. With a supply ability of 100,000 pieces and a minimum order quantity of 1,000 pieces, LP ensures timely delivery within 7 to 10 days to meet customer demands. Payment terms are flexible, accepting T/T, Western Union, and L/C, making transactions convenient and secure.

In summary, the LP IDC Cable Socket Connector LP-BX025 is an essential component for engineers and manufacturers seeking a high-quality, cost-effective, and easy-to-use connector solution. Its robust design and excellent electrical properties make it ideal for a wide range of application occasions and scenarios, from prototyping to large-scale production, ensuring seamless connectivity and operational efficiency.

Customization:

LP presents the IDC Socket / BOX Header product, model number LP-BX025, proudly made in China and certified to ISO-9001:2000 standards. This IDC Box Header Connector is designed to meet high-quality requirements with RoHS and UL Recognized compliances, ensuring reliable performance and safety.

Our IDC Ribbon Cable Socket features a contact resistance of 20M Ohms Max and operates across a wide temperature range of -65°C to +125°C, making it suitable for various demanding applications. The contact plating options include Gold or Tin plated finishes, providing excellent conductivity and corrosion resistance. The voltage rating for this IDC Socket Connector Assembly is 250V AC/DC, ensuring compatibility with different electrical environments.

We offer flexible packaging options including Reel, Tube, Tray, and Polybag to suit your inventory needs. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, our supply ability reaches up to 100,000PCS with a delivery time of 7 to 10 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C. Choose LP's IDC Socket / BOX Header for your next project and experience superior quality and customization services tailored to your requirements.

Support and Services:

Our IDC Socket / BOX Header products are designed to provide reliable and efficient connections in various electronic applications. For technical support, we offer comprehensive assistance including product selection guidance, application support, and troubleshooting help to ensure optimal performance.

Our experienced support team can assist with compatibility questions, wiring configurations, and installation procedures to help you integrate IDC Socket / BOX Headers seamlessly into your projects. We also provide detailed datasheets, application notes, and technical documentation to facilitate your design process.

In addition to technical support, we offer customized services such as tailor-made solutions to meet specific requirements, including custom pin counts, cable assemblies, and packaging options. Our commitment is to deliver high-quality products backed by responsive and knowledgeable service to support your success.

Please refer to the product datasheets and application guides for detailed specifications and usage instructions to maximize the benefits of IDC Socket / BOX Header products in your applications.
