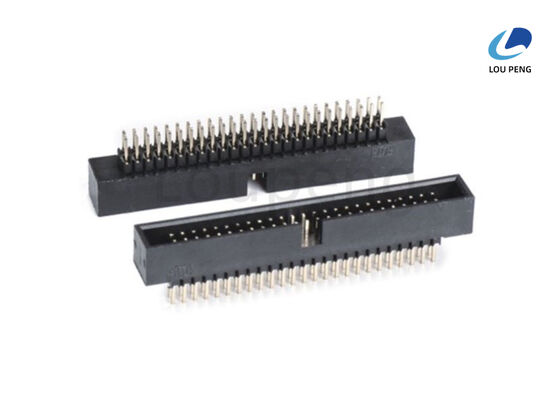

Double Row IDC Cable Socket Connector Right Angle SMT Current Rating 3A Per Contact Compact Design for Electronic Devices

Product Description:

The IDC Socket / BOX Header product is a versatile and reliable connector solution designed to meet the demanding requirements of modern electronic applications. Engineered with precision and offering a variety of configurations, this product line is ideal for ensuring secure and efficient connections in a wide range of devices and systems. Featuring contact plating options of either gold or tin plated finishes, the IDC Socket / BOX Header connectors provide excellent conductivity and corrosion resistance, enhancing the durability and longevity of the electrical connection.

One of the standout features of this product is its availability in multiple types, including Vertical, Right Angle, SMT (Surface Mount Technology), and Double Row configurations. This variety allows engineers and designers to select the optimal connector style to fit their specific layout and mechanical design requirements. Whether the application demands a compact vertical mount or a right angle connection for space-saving PCB designs, these connectors deliver exceptional performance and flexibility.

With an insulation resistance rating of 1000M Ohms minimum, the IDC Socket / BOX Header connectors guarantee superior electrical isolation between contacts. This high insulation resistance is critical in preventing signal interference and ensuring reliable data transmission, particularly in high-speed and sensitive electronic circuits. The robust insulation makes these connectors suitable for use in environments where electrical noise and interference could otherwise compromise performance.

The IDC Socket / BOX Header connectors accommodate a wide range of position counts, from as few as 2 positions up to 40 positions. This extensive range caters to diverse application needs, whether the design requires a minimal number of connections for simple circuits or a higher pin count for complex assemblies. This scalability enhances the product’s versatility, making it an excellent choice for various industries, including telecommunications, computing, automotive, and industrial automation.

Termination is achieved through the Insulation Displacement Contact (IDC) method, which simplifies the assembly process by allowing direct connection to insulated wires without the need for stripping. This termination method not only reduces assembly time and labor costs but also ensures a reliable and consistent electrical connection. The IDC technology employed in these connectors is renowned for its ability to maintain strong mechanical and electrical contact over extended periods, even under conditions of vibration or thermal cycling.

The IDC Socket Connector Assembly is designed to complement the IDC Box Header Connector, creating a complete mating system that facilitates quick and secure connections. The Insulation Displacement Contact Socket offers an efficient interface for cable-to-board or board-to-board connections, providing a dependable solution for signal and power transmission. Together, these components form a robust connector system that supports high-density wiring applications while maintaining ease of installation and maintenance.

Overall, the IDC Socket / BOX Header product line stands out as a high-quality, adaptable, and reliable connector solution. Its combination of gold or tin plated contacts, multiple mounting types, high insulation resistance, broad position range, and IDC termination method makes it an ideal choice for engineers seeking dependable performance and design flexibility. Whether used in telecommunications infrastructure, consumer electronics, or industrial equipment, these connectors deliver consistent and efficient connectivity that supports the evolving needs of modern electronic systems.

Features:

• Product Name: IDC Socket / BOX Header
• Type: Vertical, Right Angle, SMT, Double Row
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Operating Temperature Range: -65°C to +125°C
• Current Rating: 3A per contact
• Insulation Resistance: 1000M Ohms minimum
• Features Insulation Displacement Contact Socket technology for reliable connections
• Designed as a Box Header IDC Connector for versatile applications
• Also known as IDC Socket Header Connector for easy identification

Technical Parameters:

Applications:

The LP-BX026 IDC Socket / BOX Header, manufactured by LP in China, is a highly reliable and versatile connector designed for a wide range of electronic applications. As a Box Header IDC Connector, it offers excellent electrical performance with a contact resistance of just 20M Ohms max, ensuring stable and efficient signal transmission. Certified with ISO-9001:2000 and compliant with RoHS and UL standards, this IDC Connector Socket Header guarantees quality and safety in various industrial environments.

This Box Header IDC Connector is ideal for use in telecommunications, computer hardware, consumer electronics, and automotive electronics, where durable and consistent connections are critical. Its operating temperature range of -65°C to +125°C makes it suitable for harsh environments, including outdoor installations and high-temperature machinery. Thanks to its black standard color and robust packaging options such as reel, tube, tray, and polybag, it supports efficient inventory management and assembly line integration.

The LP-BX026 model is well-suited for PCB connections, wire-to-board interfaces, and cable assemblies where quick and reliable connectivity is needed. With a minimum order quantity of 1000PCS and a competitive price point of 0.0001 per unit, it is an economical choice for large-scale manufacturing projects. The product’s supply ability of 100,000PCS ensures timely fulfillment, with delivery times ranging from 7 to 10 days after order confirmation.

Furthermore, the LP IDC Socket / BOX Header supports flexible payment terms including T/T, Western Union, and L/C, accommodating various customer preferences. This makes the LP-BX026 an excellent choice for businesses seeking a dependable Box Header IDC Connector that combines quality, affordability, and fast delivery. Whether for prototyping or full-scale production, this IDC Connector Socket Header delivers consistent performance and ease of use, making it a staple component in modern electronic assembly processes.

Customization:

LP presents the IDC Socket / BOX Header product, model number LP-BX026, manufactured in China with ISO-9001:2000 certification, ensuring high quality and reliability. Our IDC Socket Header Connector is designed to meet diverse application needs with a voltage rating of 250V AC/DC and is made from high temperature thermoplastic insulation material, providing durability and excellent electrical performance.

This Insulation Displacement Connector Socket is available in black (standard) color and offered in various types including Vertical, Right Angle, SMT, and Double Row configurations. With the number of positions ranging from 2 to 40, it caters to a wide range of connectivity requirements.

We support product customization with flexible packaging options such as Reel, Tube, Tray, and Polybag. The minimum order quantity is 1000PCS, priced competitively at 0.0001 per unit. Our supply ability is up to 100,000PCS, and delivery time is typically 7 to 10 days, ensuring prompt fulfillment of your orders.

Payment terms include T/T, Western Union, and L/C, providing secure and convenient transaction options. Choose our IDC Cable Socket Connector for your next project and benefit from LP’s commitment to quality, customization, and customer satisfaction.

Support and Services:

Our IDC Socket / BOX Header products are designed to provide reliable and efficient connections for a variety of electronic applications. For technical support, please ensure that you have the product model number and specifications ready when seeking assistance.

Installation guidelines recommend careful alignment of the IDC Socket with the corresponding ribbon cable to ensure optimal connectivity and to avoid damage to the contacts. It is important to use the appropriate tooling specified for the product to achieve a secure and durable connection.

For troubleshooting common issues such as poor contact or intermittent connectivity, verify that the cable and socket are properly mated and that no pins are bent or damaged. Additionally, inspect the solder joints and board layout to ensure compliance with recommended design practices.

Our technical support team is equipped to assist with application advice, product customization inquiries, and replacement parts. We also offer documentation including datasheets, application notes, and installation manuals to help you maximize the performance of your IDC Socket / BOX Header product.

For warranty and service information, please refer to the product warranty policy provided at the time of purchase. We are committed to ensuring your satisfaction and the long-term reliability of our products.

Packing and Shipping:

Our IDC Socket / BOX Header products are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in anti-static bags to prevent electrostatic discharge damage, followed by cushioning materials to absorb shocks and vibrations.

The packaged products are then packed in sturdy, high-quality cartons that are clearly labeled with product details, quantity, and handling instructions.

For shipping, we offer multiple options including standard ground, expedited air freight, and international courier services. All shipments are tracked and insured to guarantee safe and timely delivery to your destination.

We prioritize careful packaging and reliable shipping methods to ensure that your IDC Socket / BOX Header products arrive in perfect condition and on schedule.
