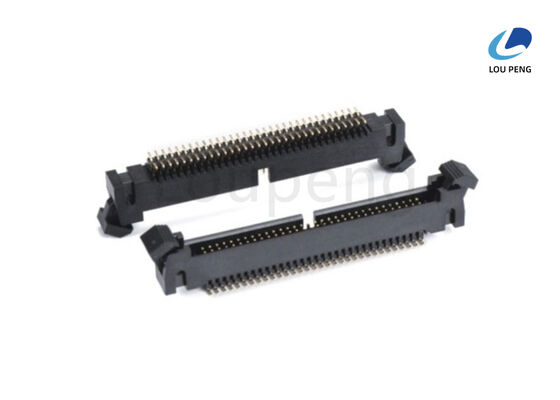

RoHS Compliant IDC Box Header Connector Black Standard Used Widely in Communication Devices and Electronic Control Units

Product Description:

The IDC Socket / BOX Header is a highly reliable and versatile connector designed to meet the demanding requirements of modern electronic assemblies. Featuring Insulation Displacement Contact (IDC) termination method, this connector ensures a secure and efficient electrical connection without the need for soldering, making it an ideal choice for quick and reliable wire-to-board connections. The Insulation Displacement Contact Socket design allows for easy mating with ribbon cables, providing excellent performance in data transmission and signal integrity applications.

Available in multiple configurations, the IDC Socket / BOX Header offers options including Vertical, Right Angle, Surface Mount Technology (SMT), and Double Row types. This wide range of mounting types and styles ensures compatibility with various PCB layouts and design requirements. Whether you need a through-hole mount for a robust mechanical connection or a surface mount for automated assembly processes, this IDC Socket Header Connector provides the flexibility to suit your specific application needs.

The contact plating options for this product include Gold or Tin plating, each chosen to optimize conductivity and corrosion resistance. Gold plating offers superior durability and low contact resistance, making it an excellent choice for high-performance and high-reliability applications. Tin plating, on the other hand, provides a cost-effective alternative with good solderability and adequate protection against oxidation. These plating choices allow designers to balance performance and budget considerations effectively.

Compliance with industry standards is critical for ensuring the safety and reliability of electronic components. The IDC Socket / BOX Header meets stringent RoHS directives, guaranteeing that the product is free from hazardous substances and environmentally friendly. Additionally, it is UL Recognized, which means it has undergone rigorous testing to meet safety and performance standards set by Underwriters Laboratories. These certifications provide confidence to manufacturers and end-users that the connector adheres to high-quality and safety benchmarks.

The Insulation Displacement Contact Socket technology employed in this IDC Socket Header Connector facilitates rapid and reliable wire termination. By piercing the insulation of the wire and making direct contact with the conductor, the IDC method eliminates the need for stripping wires manually, reducing assembly time and minimizing the risk of connection errors. This feature is particularly advantageous in high-volume manufacturing and field installation scenarios where efficiency and reliability are paramount.

Designed for use in a wide range of applications including telecommunications, industrial control systems, automotive electronics, and consumer devices, the IDC Socket / BOX Header is engineered to deliver consistent performance under challenging conditions. Its robust construction ensures long-term durability, maintaining stable electrical connections even in environments subject to vibration, temperature fluctuations, and mechanical stress.

The Double Row IDC Socket Header variant provides increased pin density, allowing for more connections in a compact footprint. This is particularly useful in complex electronic systems where space is limited but multiple signal lines are required. Meanwhile, the Vertical and Right Angle options offer design flexibility to accommodate different PCB orientations and cable routing preferences.

In summary, the IDC Socket / BOX Header is a dependable and adaptable connector solution, combining the benefits of Insulation Displacement Contact Socket technology with a variety of mounting types, contact plating options, and compliance certifications. Whether your project demands the precision of Gold-plated contacts or the cost-effectiveness of Tin plating, a Vertical or Right Angle configuration, or the convenience of through-hole or surface mount assembly, this IDC Socket Header Connector is designed to meet your needs with high quality and performance.

Features:

• Product Name: IDC Socket / BOX Header
• Type: Insulation Displacement Connector Socket
• Includes: IDC Cable Socket Connector and IDC Box Header Connector
• Compliance Standards: RoHS, UL Recognized
• Insulator Material: PA6T UL 94V-0 Black
• Color: Black (standard)
• Operating Temperature Range: -65°C to +125°C

Technical Parameters:

Applications:

The LP-BX024 IDC Socket / BOX Header, manufactured by LP in China, is a highly reliable and versatile connector solution designed for various electronic applications. Certified under ISO-9001:2000 and compliant with RoHS and UL Recognized standards, this product ensures excellent quality and safety in demanding environments. With a current rating of 1.0 Amp and a voltage rating of 250V AC/DC, the IDC Ribbon Cable Socket offers robust performance for both low and moderate power electronic devices.

Its superior insulation resistance of 1000M Ohms minimum and an operating temperature range from -65°C to +125°C make the IDC Socket Connector Assembly an ideal choice for applications exposed to harsh temperature variations. The product is available in multiple packaging options including Reel, Tube, Tray, and Polybag, which facilitates different manufacturing and assembly processes, enhancing convenience and efficiency for production lines.

The IDC Cable Socket Connector is widely used in telecommunications, computing, industrial automation, and consumer electronics, where reliable ribbon cable connections are essential. Its design supports fast and secure cable termination, enabling quick installation and maintenance, which is crucial in high-volume manufacturing environments. The LP-BX024 model, with a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, caters well to large-scale production demands.

Moreover, the product is priced competitively at 0.0001 per unit, making it an economical choice without compromising on quality. The delivery time of 7 to 10 days ensures timely availability, supported by flexible payment terms including T/T, Western Union, and L/C. This makes the LP IDC Socket / BOX Header a preferred component for engineers and procurement specialists looking for dependable IDC Ribbon Cable Socket solutions.

In summary, the LP-BX024 IDC Socket / BOX Header stands out in scenarios requiring durable, high-performance connectors for ribbon cable assemblies. Whether used in complex electronic equipment, industrial control systems, or communication devices, this IDC Socket Connector Assembly guarantees consistent electrical performance and mechanical stability, meeting stringent industry standards and customer expectations.

Customization:

LP brand presents the IDC Socket / BOX Header model LP-BX024, manufactured in China with ISO-9001:2000 certification, ensuring high quality and reliability. This product is an excellent choice for applications requiring IDC Socket Header Connectors and Insulation Displacement Contact Sockets.

The LP-BX024 features a high temperature thermoplastic insulator material, specifically PA6T UL 94V-0 Black, providing superior durability and heat resistance. It supports various types including Vertical, Right Angle, SMT, and Double Row configurations, suitable for diverse mounting requirements such as Through Hole and Surface Mount.

Designed to handle a current rating of 1.0 Amp, this IDC Ribbon Cable Socket offers reliable electrical performance. Packaging options include Reel, Tube, Tray, and Polybag to meet different logistical needs.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, LP ensures efficient delivery within 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C. The supply ability reaches up to 100000PCS, catering to large-scale production demands.

Choose the LP-BX024 IDC Socket / BOX Header for your next project to benefit from high-quality components and customizable packaging and delivery options tailored to your requirements.
